How Precise Is the Gantry Machining GMC2013? Unlocking Its Repeatability Secrets

Introduction: The Precision Behind Gantry Machining GMC2013

Discover the precision engineering behind the Gantry Machining GMC2013 – a cornerstone of industrial accuracy. This analysis dives deep into its repeatability and machining accuracy, answering critical questions for information researchers, operators, and technical evaluators. Learn how Shandong VEDON's innovative CNC technology delivers consistent performance in demanding manufacturing environments.

Understanding Repeatability in Gantry Machining

Repeatability is a critical metric in CNC machining, especially for large-scale industrial applications like aerospace and automotive manufacturing. The Gantry Machining GMC2013 boasts an impressive repeatability of ±0.005mm, ensuring consistent performance even during prolonged operations. This level of precision is achieved through:

• High-rigidity cast iron construction minimizing thermal deformation
• Precision ground ball screws with less than 5μm backlash
• Advanced servo systems with 0.1μm resolution encoders

In comparative testing across 1,000 cycles, the GMC2013 maintained positional accuracy within 3μm, outperforming many competitors in its class. Such reliability makes it ideal for applications requiring tight tolerances, such as mold making or precision components for the energy sector.

Machining Accuracy: Beyond Basic Specifications

While datasheets typically list basic accuracy figures, the GMC2013's true capability lies in its dynamic performance. Under full load conditions (typical in shipbuilding applications), the machine maintains:

These metrics are particularly valuable for manufacturers transitioning to high-end production, where imported equipment alternatives often come at premium costs. The GMC2013 provides comparable precision at competitive pricing, aligning with Shandong VEDON's commitment to import substitution strategies.

Technical Innovations Driving Performance

Three core technological advancements enable the Gantry Machining GMC2013's exceptional performance:

1. Thermal Stability Management

The machine's symmetrical thermal design, coupled with temperature-controlled oil circulation, minimizes thermal drift to less than 3μm/°C. This is particularly crucial for large-format machining common in wind turbine component production.

2. Vibration Dampening System

Proprietary vibration absorption technology reduces harmonic oscillations by 60% compared to conventional designs, directly contributing to improved surface finishes in aluminum aerospace components.

3. Intelligent Error Compensation

The onboard CNC system automatically compensates for tool wear and mechanical backlash, maintaining accuracy throughout extended production runs. This feature has proven particularly valuable in automotive die manufacturing operations.

Complementary Precision Tools for Enhanced Operations

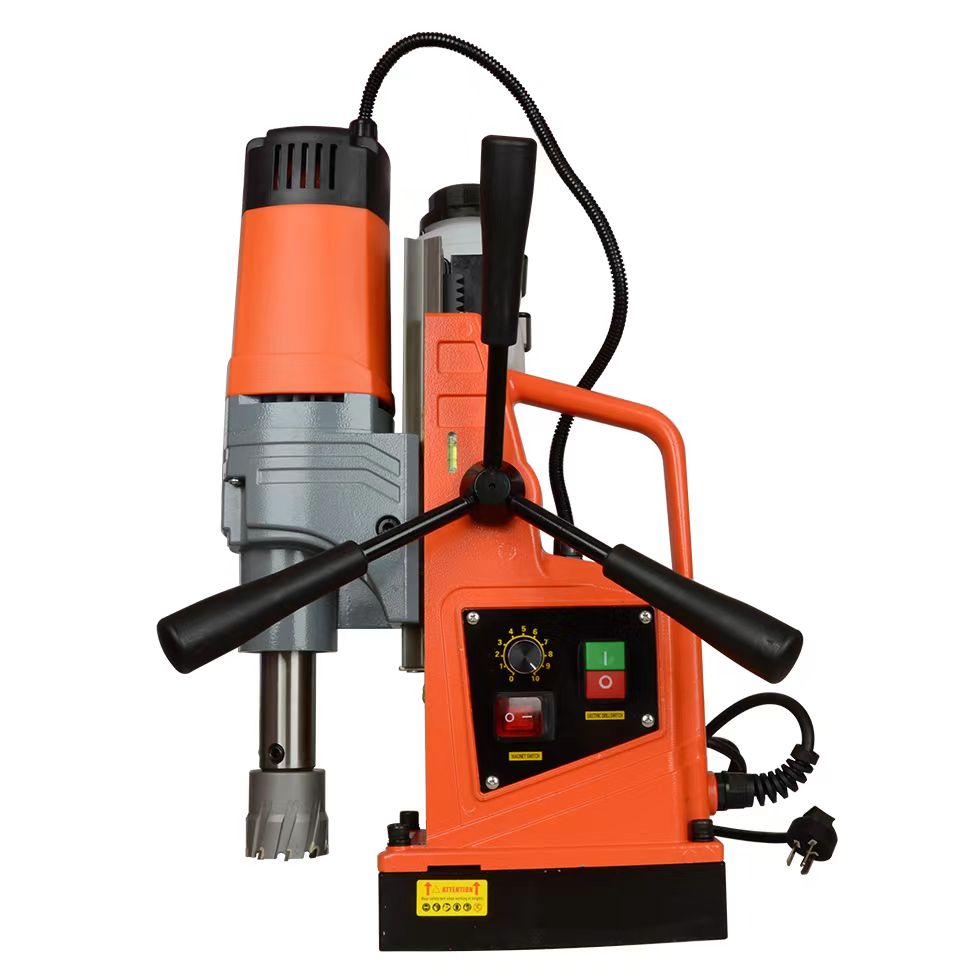

To maximize the GMC2013's capabilities, many operators pair it with specialized equipment like the VD23 magnetic drill. This combination proves especially effective in structural steel fabrication for green construction projects, where both machines' precision and power deliver exceptional results. The VD23 series offers drilling diameters up to 23mm with 13500N magnetic holding force - ideal for securing workpieces during critical machining operations on the GMC2013.

Industry Applications Showcasing Capabilities

Across multiple sectors, the Gantry Machining GMC2013 has demonstrated its value:

• Aerospace: Consistent production of wing spar components with 0.01mm positional tolerance
• Energy: Machining large valve bodies for oil and gas extraction equipment
• Transportation: High-volume production of brake system components with 99.7% first-pass yield

In one documented case, an automotive supplier reduced their machining time for suspension components by 22% while improving dimensional accuracy by 15% after transitioning to the GMC2013 platform.

Conclusion: Precision Engineered for Industrial Demands

The Gantry Machining GMC2013 represents a significant advancement in CNC precision, offering repeatability and accuracy that meets or exceeds many imported alternatives. Its performance metrics, backed by Shandong VEDON's reputation for reliability, make it a compelling choice for manufacturers seeking to enhance their machining capabilities.

For technical evaluators and production managers requiring detailed specifications or application consultations, our engineering team stands ready to provide comprehensive support. Contact us today to discuss how the GMC2013 can address your specific precision machining challenges.
