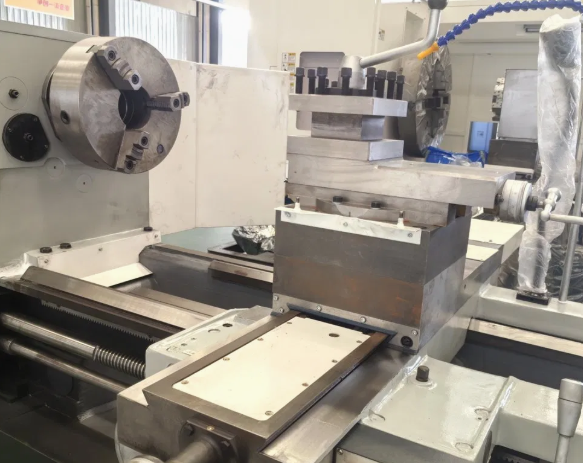

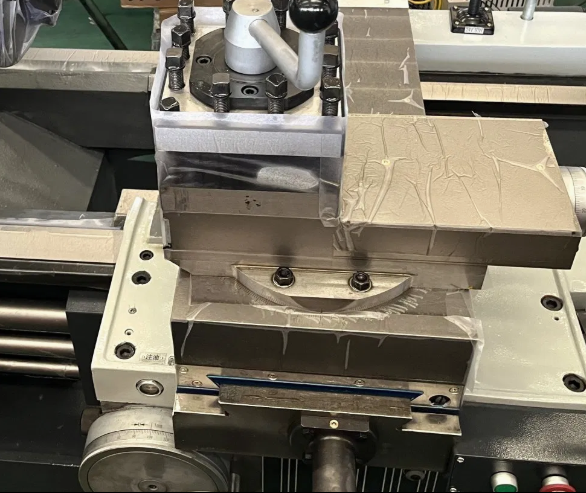

CW6180
10001
Explore the CW6180 heavy-duty lathe with Ø800mm swing over bed, 1500mm distance between centers, and 15-100/100-350 rpm spindle speed. Ideal for precision metal turning.
WhatsApp ：+86 173 5340 5464
Email ：admin@sdvedon.com

- PRODUCT PARAMETERS -

ITEMSUNITCW6180
CapacityMax. diameter swing over bedmmØ800Ø800Ø800
Max. diameter swing over cross slidemmØ550Ø520Ø480
Distance between centersmm150015001500
Maximum machining lengthmm125012501200
Width of bed waymm55065-250600/650
Max. load capacityT232.5/3
SpindleSpindle boremmØ105Ø105Ø104
Spindle nose
C11C11C11
Spindle taper hole
(Metric):120/1:20(Metric):120/1:20(Metric):120/1:20
Spindle motorKW111115
Spindle speed steps-Two gears frequency conversionThree gears frequency conversion
Spindle speed rangerpm15-100/100-350 VF2 steps
32/0.095-1.4		15-100/100-350 VF2 steps
32/0.095-1.4		(L):25-100
(M):80-260
(H):240-700
TurretMax.traverse of the turretmm200200205
Turret type-Manual 4 positionManual 4 positionManual 4 position
Tool shank sizemm32×3232×3232×32/40X40
FeedTraverse of cross slidemm420400420
Z axis feed grade /rangemm32/0.095-1.432/0.095-1.432/0.095-1.4
X axis feed grade/rangemm32/0.042-0.732/0.042-0.732/0.042-0.7
Carriage raid traverse speedMm/min374037403740
Cross slid raid traverse speedMm/min187018701870
Metric thead grade/rangemm22/1-15mm22/1-15mm22/1-15mm
Inch thread grade/rangeT.P.I.26/14-126/14-126/14-1
TailstockTailstock quill diametermmØ100Ø100Ø100
Tailstock quill taper-Morse NO.5/6Morse NO.6Morse NO.6
Tailstock quill travelmm250250250
DimensionsWidth x Heightmm3600X1600×15003650X1700×15503700X1750×1500
WeightNet weightKG450055005000/5700
