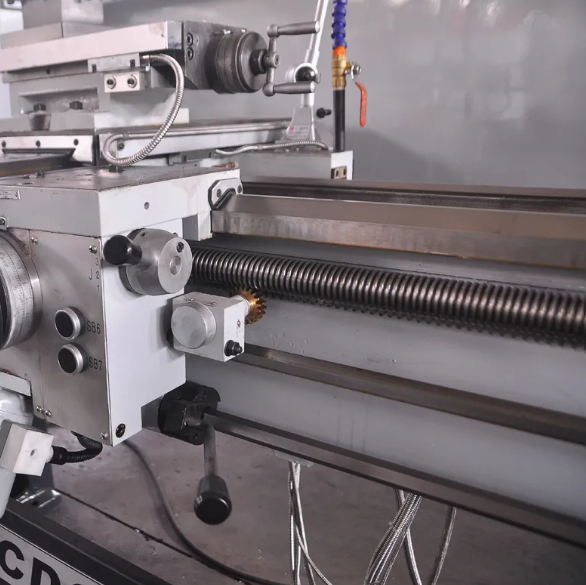

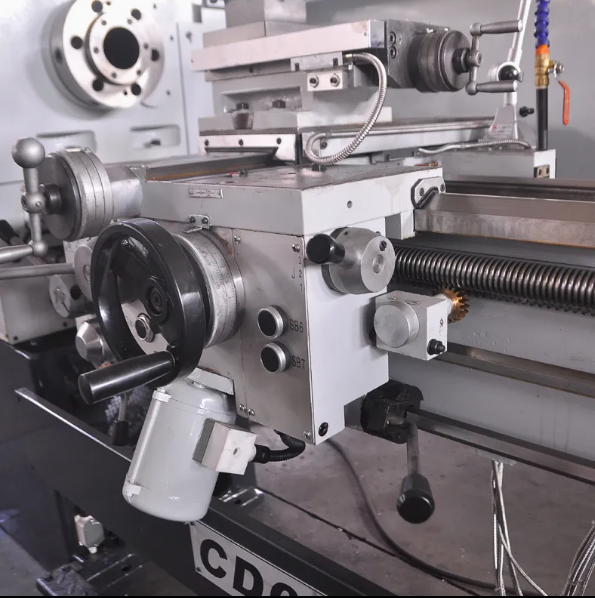

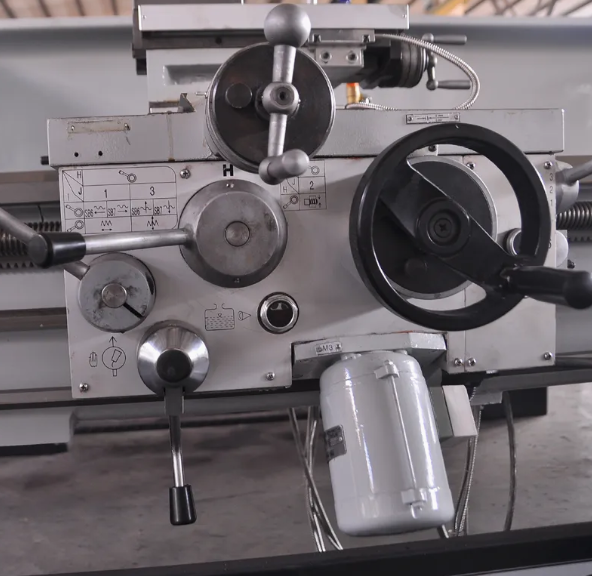

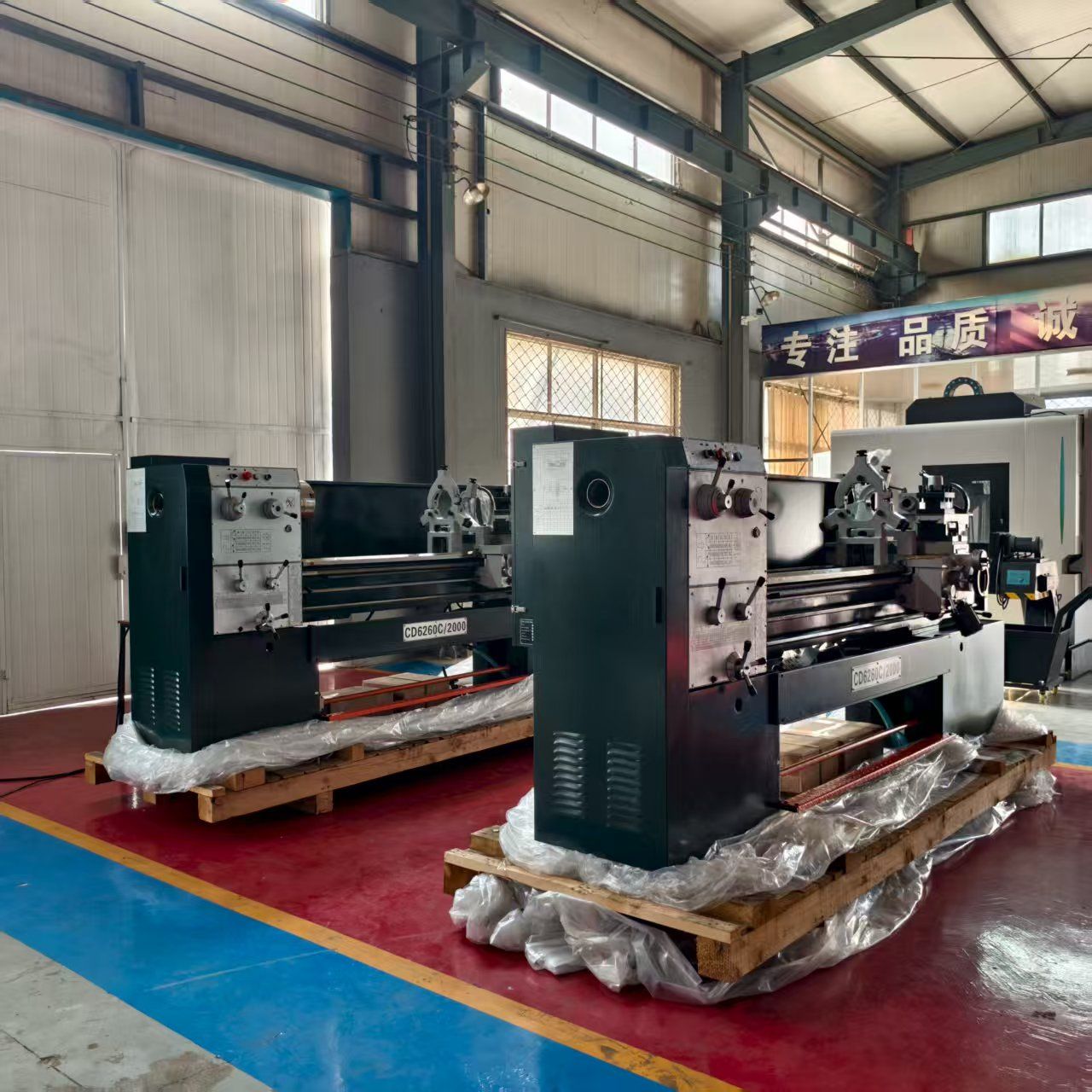

CW6260
10001
The CW6260 lathe offers precision metal turning with a 600mm swing capacity, ISO-C8/D8 spindle, and 24-1600rpm speed range. Ideal for heavy-duty machining.
WhatsApp ：+86 173 5340 5464
Email ：admin@sdvedon.com

- PRODUCT PARAMETERS -

MODELCD6240CCD6250CCD6260C
CAPACTIESMax. swing over bed mm400500600
Max. swing over cross slide mm225325360
Max. swing in gap mm530630730
Center distance1000,1500,2000mm
Cross slide travel mm330mm
SPINDLESpindle hole80mm
Spindle noseISO-C8 or ISO-D8
Spindle taperMetric 85mm
Spindle speeds24-1600rpm (15 Steps)
FEEDSMetric threads range (Kinds)0.5-28mm (66Kinds)
Inch threads range (Kinds)1-56tpi (66 Kinds)
Module threads range (Kinds)0.5-3.5mm (33 Kinds)
Diametral threads range (Kinds)8-56 DP (33 Kinds)
Longitudinal feeds range(kinds)0.072-4.038mm/reV
(0.0027-0.15inch/rev)(66kinds)
Cross feeds range (kinds)0.036-2.019mm/reV
(0.0013-0.075nch/rev)(66kinds)
Rapid traveling speed of carriage5m/min(16.4ft/min)
Leadscrew size:Diameter pitch35mm/6mm or 35mm
CARRIAGECross slide travel300mm
Compound rest travel130mm
Cross-section size of tool shank25x25mm

Cross-section size of tool shank25x25mm
TAILSTOCKSpindle diameter65mm
Spindle taperMorse No. 5
Spindle travel120mm
Main motorMain drive motor4.0kw or 5.5kw7.5kw
Coolant pump motor0.125kw
Rapid traverse motor0.12kw
Net weight/Gross wei ght(kg)1000mm1640/229017 00/23501800/2500
1500mm1850/225019 10/26102010/2760
2000mm2090/286021 50/29202250/3070
PACKING SIZE (L*W*D)1000mm2420*1150*1800mm
1500mm2920*1150*1800mm
2000mm3460*1150*1800mm
