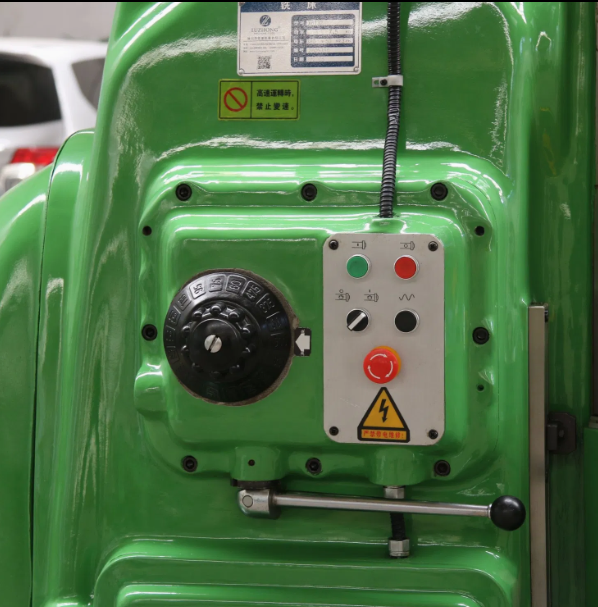

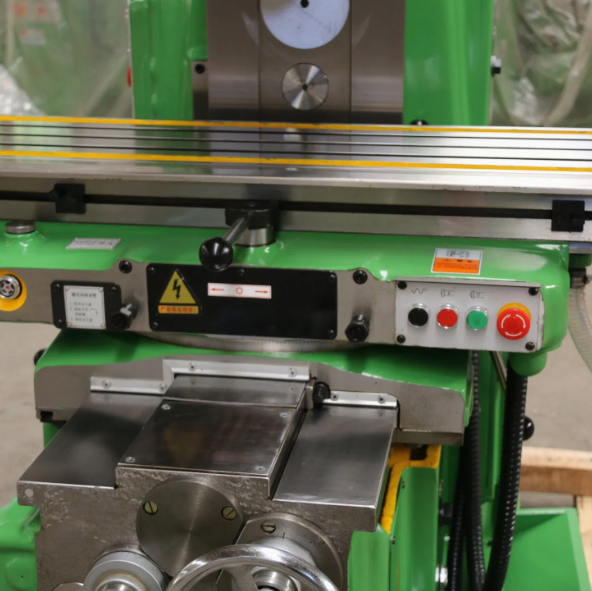

X6132
10001
Milling machines are capable of processing planes, grooves, gear teeth, threads, curved surfaces and workpieces with complex shapes. They can complete various processing operations such as milling, drilling and boring, and are widely used in mechanical manufacturing, mold processing, aerospace and other fields.

- PRODUCT PARAMETERS -

SpecificationsUnitsX6132X6132BX6132BH
Table sizemm320×1325320×1600320×1600
Table loadkg500500500
T slot(number-width*pitch)-3-18*703-18*703-18*70
Max. longitudinal of table travel(manual/automatic)mm700/680900/680900/880
Max. transverse travel of table (manual/automatic)mm255/240255/240255/240
Max. vertical travel of table (manual/automatic)mm320/300320/300410/390
Table feed rangemm/minXY:23.5-1180 Z:8-394XY:23.5-1180 Z:8-394XY:23.5-1180 Z:8-394
Table range traversemm/minXY:2300 Z:770XY:2300 Z:770XY:2300 Z:770
Spindle taper-ISO50 7:24ISO50 7:24ISO50 7:24
Max rotary angle of table°±45°±45°±45°
Distance between spindle axis and column guide waymm30-35030-35030-440
Spindle speed step
1818steps18
Spindle speed ranger.m.p30-150030-150030-1500
Main motor powerkw7.57.57.5
Feed motor powerkw1.51.51.5
Weightkg2900/32003000/33003100/3400
Overall dimensionmm2300×1770×20002300×1770×20002600×1770×2200
