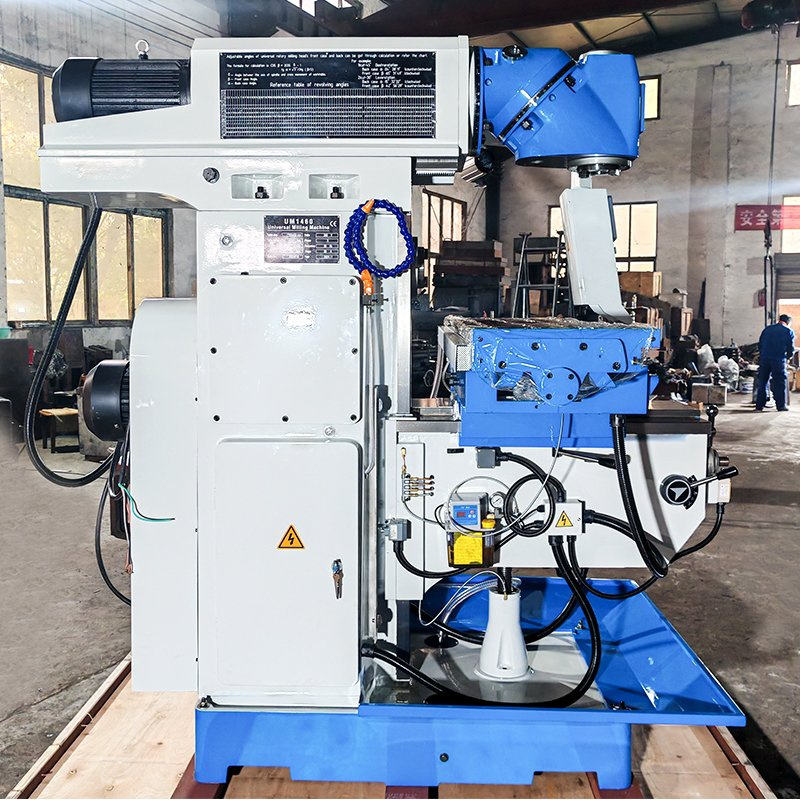

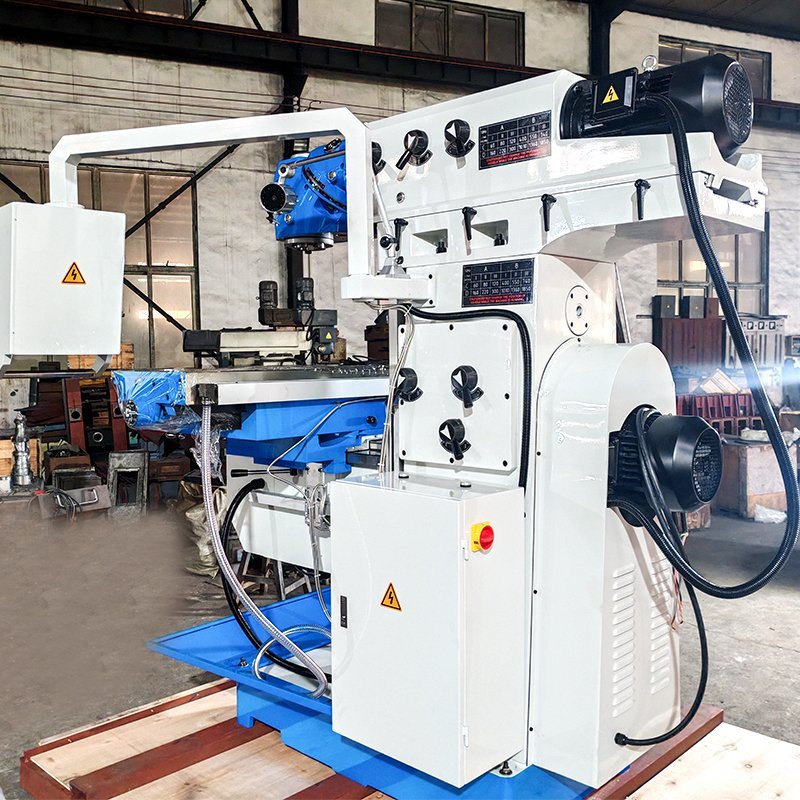

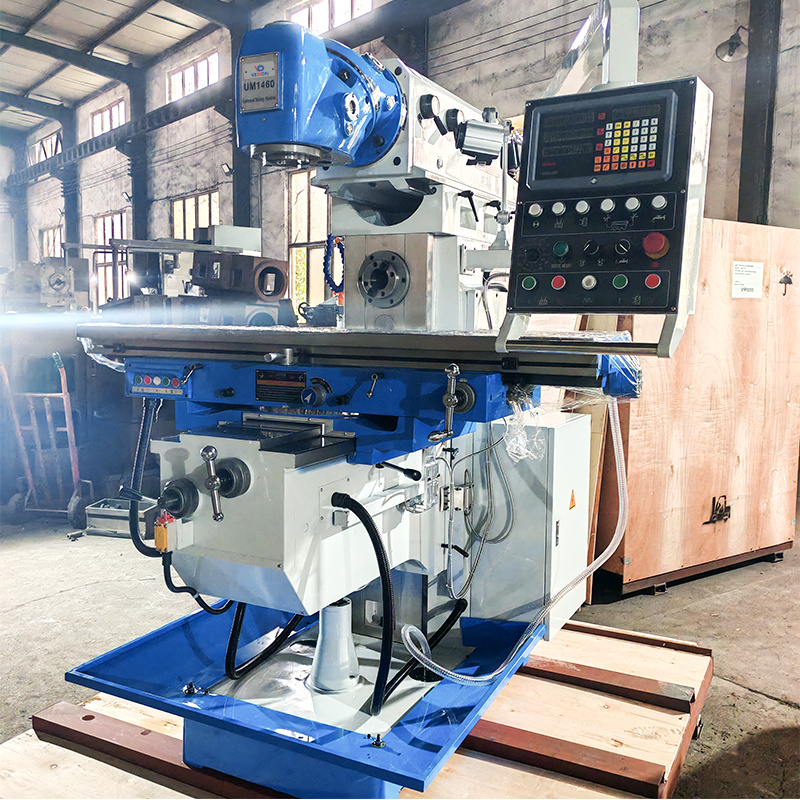

UM1460 milling machine
10001
UM1460 milling machine features 7:24 ISO 50 spindle, ±45° worktable swivel, and 12-step speed control (50-1850r.p.m). Ideal for precision metalworking with 1700X400mm work area.
WhatsApp ：+86 173 5340 5464
Email ：admin@sdvedon.com

- PRODUCT PARAMETERS -

(UM1460Technical Parameters)
ItemDetails
Spindle taper7:24 ISO 50(Horizontal/Vertical)
Distance spindle to column surface1700X400 mm
Worktable swivel angle±45°
Number4
T-slots of table width18mm
Distance100mm
Spindle speeds range12steps 50-1520r.p.m(Vertical)12steps 60-1850r.p.m(Horizontal)
Longitudinal1300 mm
Table travel Cross420 mm
Vertical600 mm
X/Y. axes feeding25-800 mm/min Rapid feeding 800 mm/min
Z axes feeding8-267 mm/min Rapid feeding 267 mm/min
main horizontal spindle0-440 mm
milling head horizontal(low position)150-590 mm
milling head horizontal(side position)340-780 mm
milling head horizontal(hish position)530-970 mm
Distance from spindle nose to worktable50-650 mm(Vertical)
Distance from Vertical spindle cente, to guideway surface0-1000 mm(Vertical maillingspindle head)
horizontal swivel angle of milling head360°

Vertical swivel angle of milling head360°
Main motorVertical Milling 7.5KW(V) Horizontal Milling 5.5KW(H)
Feeding motor2.36 KW 15N.M
Coolant pump motor9OW
Coolant pump flux25Litres/minute
Overall dimensions2300X2300X2270 mm
G.Wabout 3600 kg
