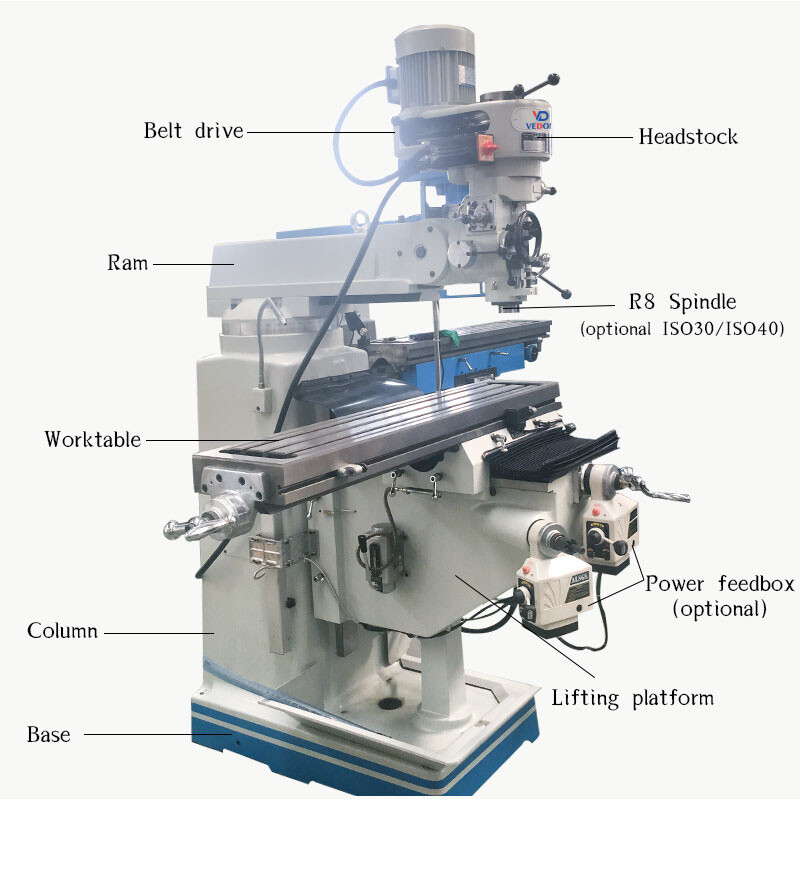

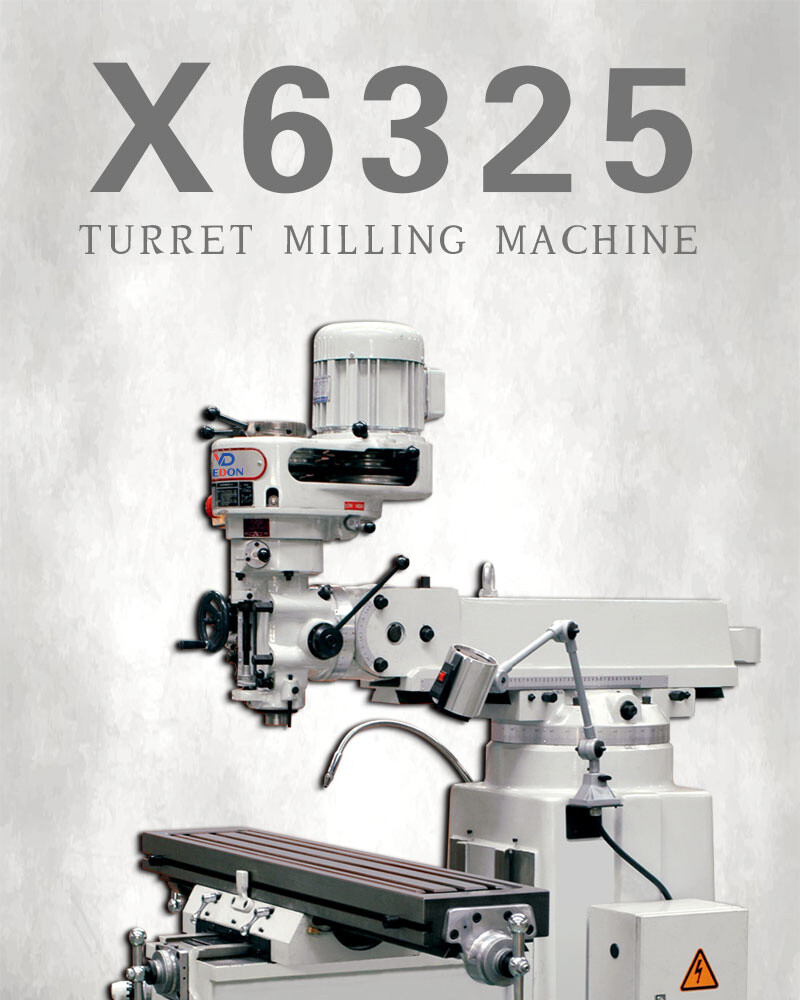

X6325 turret milling machine
10001
Discover the X6325 turret milling machine with table sizes up to 1370mm, R8/ISO30/ISO40 spindle options, and 2.25KW motor power. Ideal for precision machining.
WhatsApp ：+86 173 5340 5464
Email ：admin@sdvedon.com

- PRODUCT PARAMETERS -

SpecificationX6325X6325AX6325B
Table Size254x1270mm(10"x50")254x1370mm(10"x54")
Table longitudinal travel850mm950mm
Cross travel420mm400mm400mm
Vertical travel420mm
T-slot Number/Width3-16mm
Ram travel470mm
Distance from spindle nose to table surface0-405mm
Distance from spindle center to column140-609mm
Spindle taperstandard: R8 optional: ISO30/ISO40
Spindle travel127mm
Spindle speed


Spindle motor power2.25KW (3HP)
Head swivel90°
Head tilting45°
Package size
(One set per case)		1516x1550x2080mm
Package size
(Two sets per case)		1650x1750x2170mm
Package size
(Three sets per case)		1650x2285x2235mm
Machine weight1550kg1380kg1420kg
Note: X axis travel will be shorten about 100mm when assemble power feed box.
