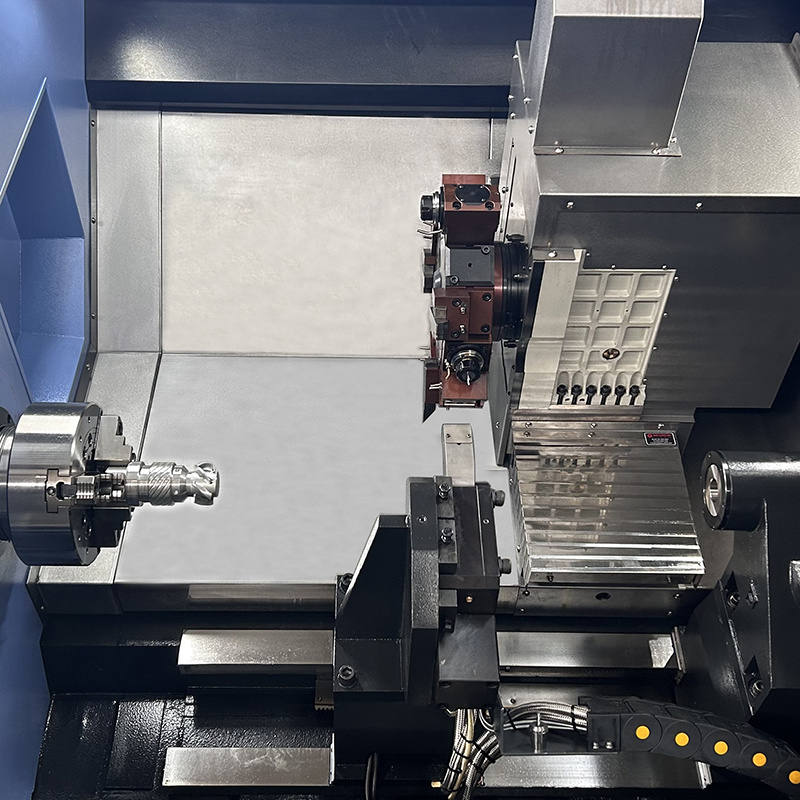

TCK600DY
10001
With digital control at its core, it breaks through the operational limitations of traditional lathes, transforming complex processes into precise instructions and providing efficient, stable, and consistent machining solutions. The spindle utilizes high-precision bearings for strong vibration resistance, maintaining stable accuracy even during long-term high-speed operation. The bed is constructed from a single piece of cast iron, treated with aging to eliminate internal stress, resulting in minimal deformation and ensuring long-term machining stability.

- PRODUCT PARAMETERS -

With digital control at its core, it breaks through the operational limitations of traditional lathes, transforming complex processes into precise instructions and providing efficient, stable, and consistent machining solutions. The spindle utilizes high-precision bearings for strong vibration resistance, maintaining stable accuracy even during long-term high-speed operation. The bed is constructed from a single piece of cast iron, treated with aging to eliminate internal stress, resulting in minimal deformation and ensuring long-term machining stability.


Tailstock sleeve/MT5 internal rotation
Tailstock movement form/Hydraulically programmable tailstock
Lathe bed
Tilt angleDEG45°
X-axis travelmm315
Z-axis travelmm1100/1600
X/Z fast moving speedm/min16/24
Turret
Servo hydraulic/BMT55
Adjacent tool change timess0.5
Number of station/12
Tool size.turning/boring)mm32x32/Φ40(50)
Spring chuck/ER40
Driven powerkw2.3
Y-axis travelmm±50
Out size
1.0m7500kg5100*2300*2550mm
1.5m9500kg5600*2300*2550mm
Tailstock sleeve/MT5 internal rotation
Tailstock movement form/Hydraulically programmable tailstock
Lathe bed
Tilt angleDEG45°
X-axis travelmm315
Z-axis travelmm1100/1600
X/Z fast moving speedm/min16/24
Turret
Servo hydraulic/BMT55
Adjacent tool change timess0.5
Number of station/12
Tool size.turning/boring)mm32x32/Φ40(50)
Spring chuck/ER40
Driven powerkw2.3
Y-axis travelmm±50
Out size
1.0m7500kg5100*2300*2550mm
1.5m9500kg5600*2300*2550mm
