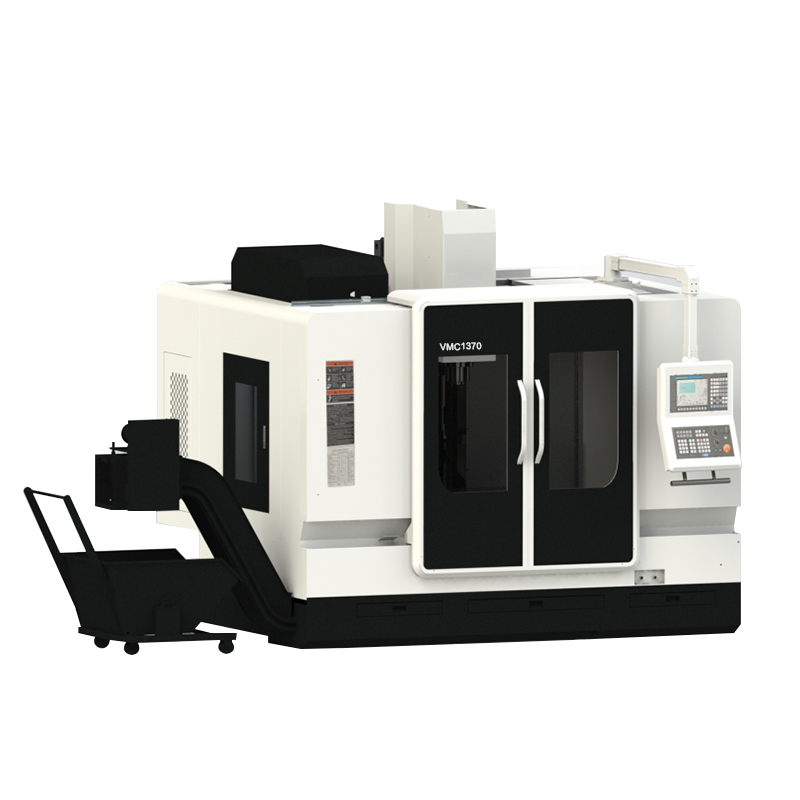

VMC1370
10001
Our vertical machining centers control quality from the very beginning: they utilize a one-piece cast bed, coupled with a high-precision ball screw and servo drive system, achieving positioning accuracy of ±0.003mm and repeatability of ±0.004mm. Even difficult-to-machine workpieces, such as complex curved surfaces and thin-walled parts, can be accurately reproduced from the design drawings, reducing scrap rates by 90%.

- PRODUCT PARAMETERS -

Our vertical machining centers control quality from the very beginning: they utilize a one-piece cast bed, coupled with a high-precision ball screw and servo drive system, achieving positioning accuracy of ±0.003mm and repeatability of ±0.004mm. Even difficult-to-machine workpieces, such as complex curved surfaces and thin-walled parts, can be accurately reproduced from the design drawings, reducing scrap rates by 90%.


ItemUnitVMC650VMC855VMC1160VMC1270VMC1370
Capacity





X axis travelmm600800110012001300
Y axis travelmm500550600700700
Z axis travelmm500550600600700
Spindle nose to worktablemm100-600120-670120-720150-800110-810
Spindle center to columnmm573550650710750
Leadscrew/Guideway size





Leadscrew diametermm4040404045
Linear guideway widthmm35/35/3535/45/4545/45/4545/55/4545/45/45
Worktable size





Worktable Lengthmm8001000120013001400
Worktable widthmm500550600700700
T slot qty-width*distancemm5-18*905-18*905-18*1007-18*1005-18*110
Max loading capacitykg40050080010001200
Spindle





Spindle speedrpm10000/Belt10000/Belt10000/Belt10000/Belt8000/Belt
Spindle motor powerkw5.511/1511/1511/1515/18.5
Spindle torqueNm26.352.552.57095.6
Spindle taper
BT40BT40BT40BT40BT40
Feeding system





Fast moving speed (X/Y/Z)m/min36/36/3036/36/3636/36/3036/36/2430/30/24
Cutting speedmm/min1-100001-100001-100001-100001-10000
Feed motor powerkw1.2/1.2/1.82.0/2.0/3.03/3/33/3/34.5/4.5/4.5
X/Y/Z Axsis motor torqueNm7/7/1112/12/2222/22/2222/22/2237/37/37
Tool Magazine





CapacitypcsDisc/169 Hat-styleDisc/24Disc/24Disc/24Disc/24
Max tool diametermm78-90120120120120
Max tool weightkg8888300
Max tool lengthmm2503003003008
Tool change time (TT)
62.332.332.332.33
Accuracy





Positioning accuracymm±0.004/300mm±0.004/300mm±0.004/300mm±0.004/300mm±0.004/300mm
Repeat accuracymm±0.002/300mm±0.003/300mm±0.003/300mm±0.003/300mm±0.003/300mm
