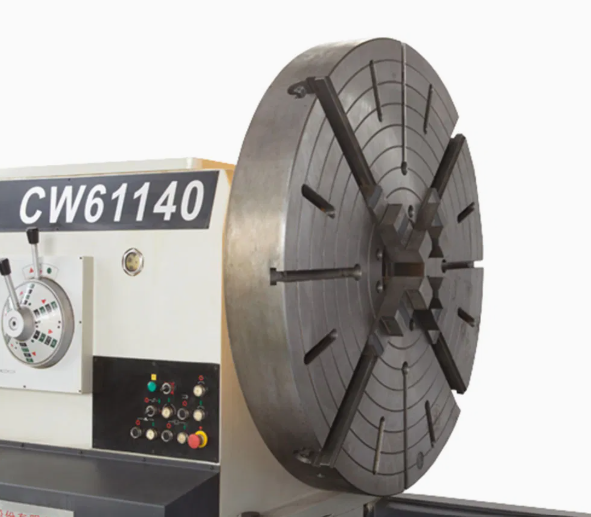

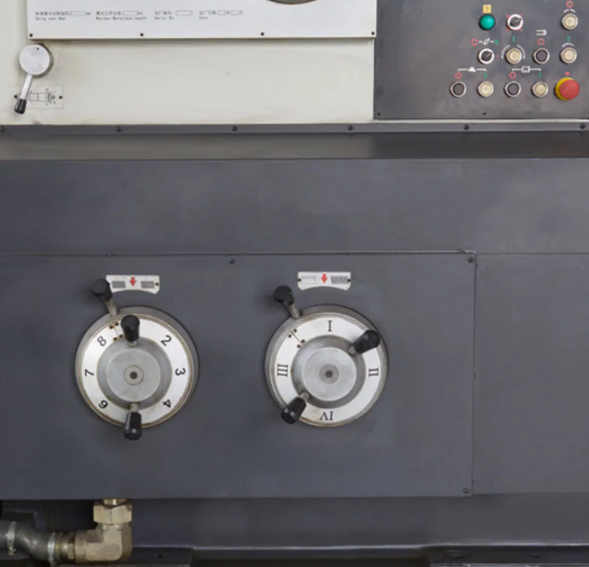

CW61140
10001
Discover the CW61140 & CW62140 heavy duty lathes with Φ1400-1600mm swing capacity, 12m workpiece length, and 24 spindle speeds. Ideal for precision metal turning in industrial applications.
WhatsApp ：+86 173 5340 5464
Email ：admin@sdvedon.com

- PRODUCT PARAMETERS -

MODELSCW61140/CW62140CW61160/CW62160
CAPACITY

Max. swing over bedΦ1400mmΦ1600mm
Max. swing over carriageΦ1060mmΦ1260mm
Max. swing over gapΦ1930mmΦ2110mm
Effective length of gap590mm590mm
Width of bed970mm970mm
Max. length of workpiece1.5/2/3/4/5/6/8/10/12m1.5/2/3/4/5/6/8/10/12m
Max. turning length1.3/1.8/2.8/3.8/4.8/5.8/7.8/9.8/11.8m1.3/1.8/2.8/3.8/4.8/5.8/7.8/9.8/11.8m
Max. weight of workpiece (between centers)6000kg6000kg
SPINDLE

Spindle noseA2-15A2-15
Spindle boreΦ130mmΦ130mm
Taper bore of spindleMetric Φ140 1:20Metric Φ140 1:20
Steps of spindle speed24(Normal), 12(Reverse)24(Normal), 12(Reverse)
Range of spindle speed2.5~250rpm2.5~250rpm
Pitch of longitudinal ball screw/diameter12mm/Φ70mm12mm/Φ70mm
Number of longitudinal and cross feeds9797
FEED RANGE OF TOOL POST FOR PER REVOLUTION OF SPINDLE

Longitudinal0.1~12mm/r0.1~12mm/r
Cross0.05~6mm/r0.05~6mm/r
Middle tool post0.025~3mm/r0.025~3mm/r
THREADING

Metric pitch threads1~120mm/ 451~120mm/ 45
Whit-worth threads30~¼TPI/ 4230~¼TPI/ 42


Whit-worth threads30~14TPI/4230~14TPI/42
Module threads1/2~60D.P/481/2~60D.P/48
D.P. Threads½~60M.P/46½~60M.P/46
RAPID TRAVEL

Longitudinal3740mm/min3740mm/min
Cross1870mm/min1870mm/min

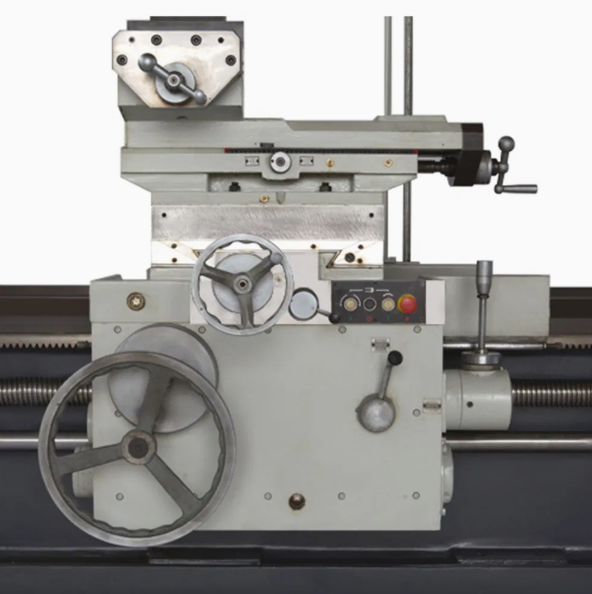

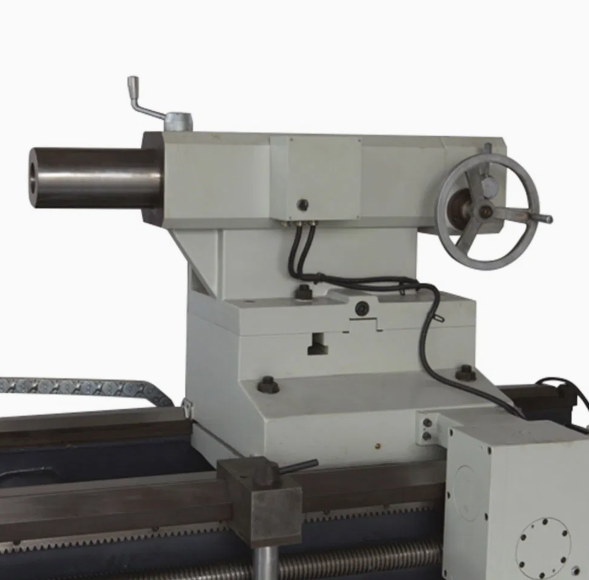

TAILSTOCK SLEEVE

Taper boreMetric 80Metric 80
External diameterΦ160mmΦ160mm
Max travel300mm300mm
OTHERS

Vertical distance from spindle center to installing basis51mm51mm
Max travel of middle tool post400mm400mm
Swing angle of tool post±90°±90°
Max travel of cross slide840mm900mm
Size of tool shank50×50mm50×50mm
Main motor power22kw22kw
Rapid feed motor power1.5kw1.5kw
Coolant pump power0.25kw0.25kw
3 meter machine overall dimensions (L×W×H)6100 x 2080 x 2130mm6100 x 2130 x 2300mm
Net weight14100kg15100kg
