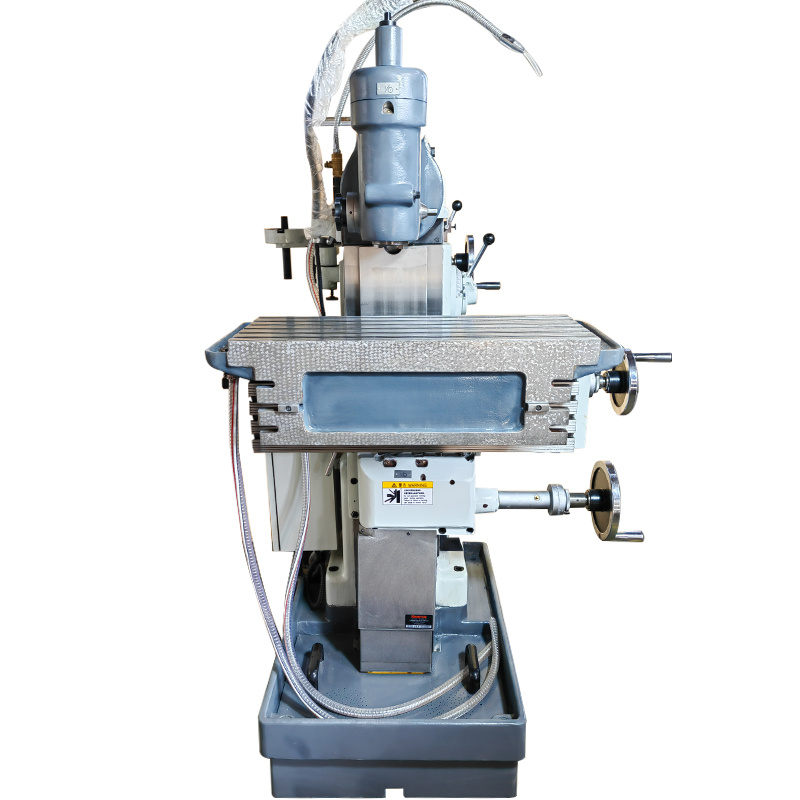

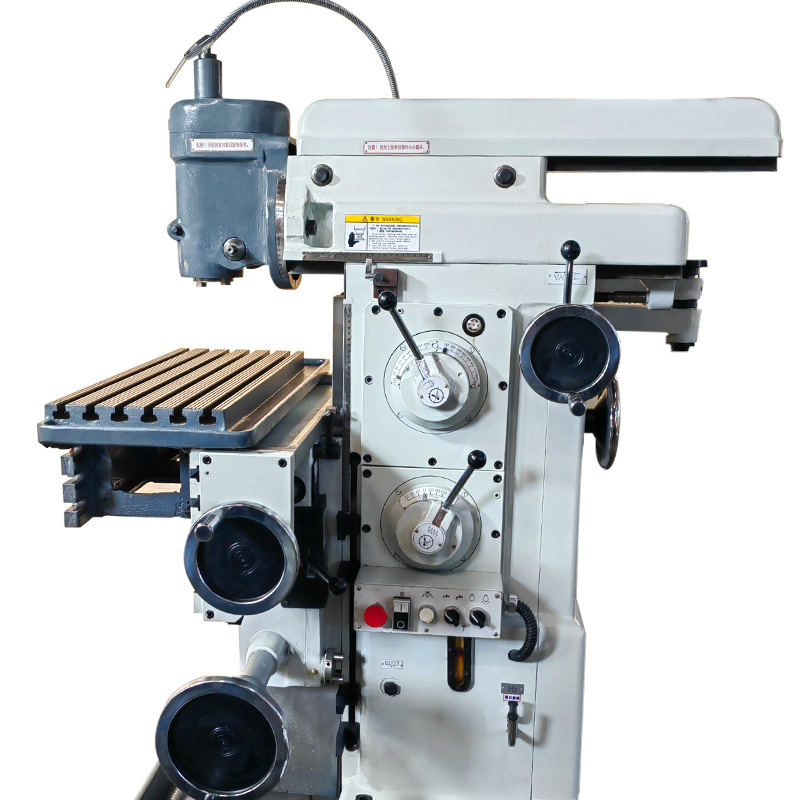

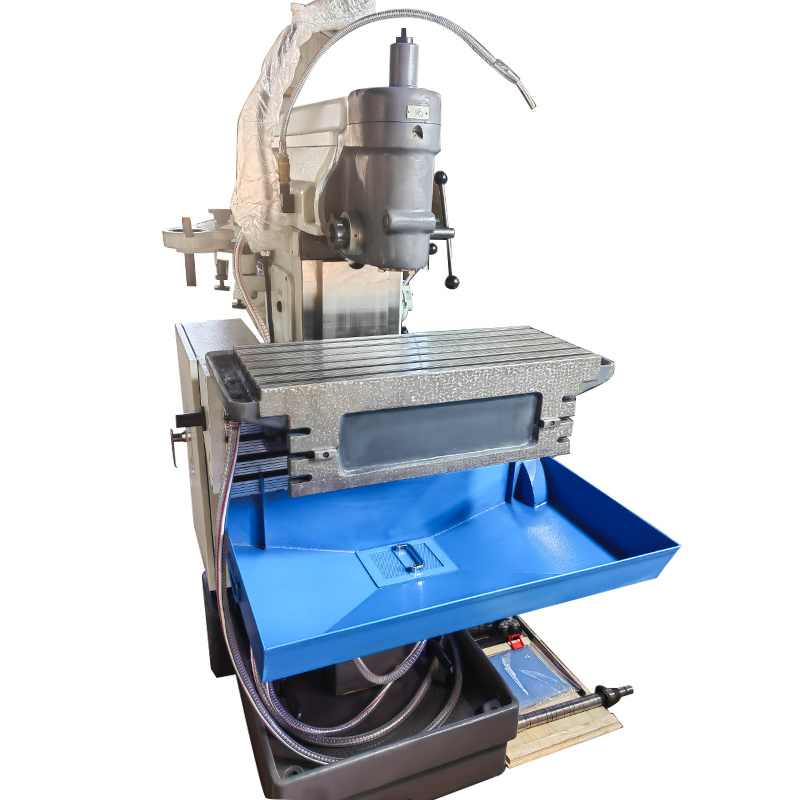

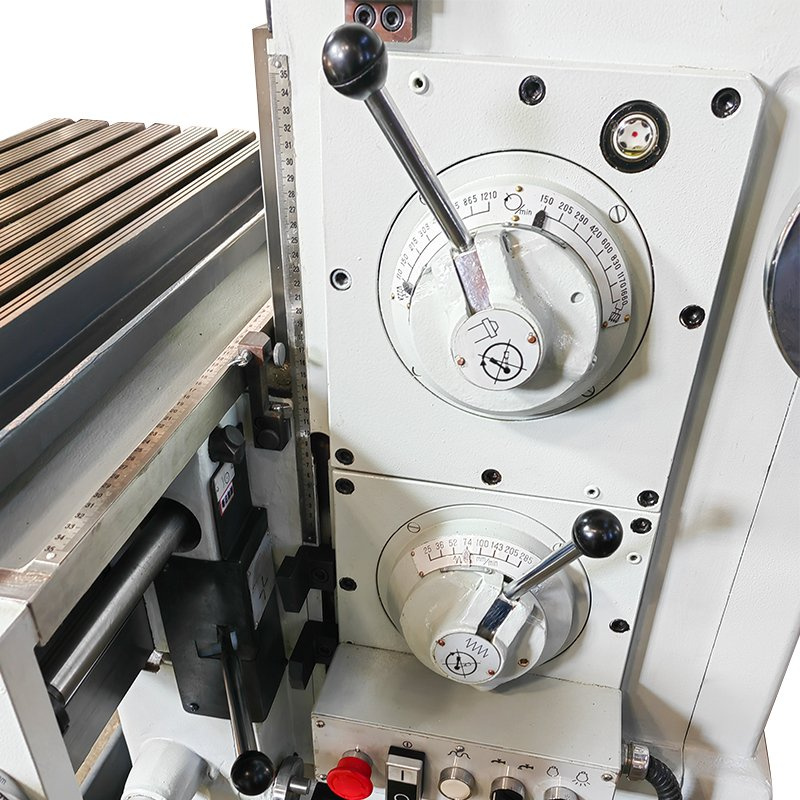

Universal milling machine X8126A
10001
Discover the X8126A Universal Milling Machine with spindle speeds of 150-1660r/min, 8 feed steps, and versatile spindle movement. Ideal for precision industrial applications.
WhatsApp ：+86 173 5340 5464
Email ：admin@sdvedon.com

- PRODUCT PARAMETERS -

Spindle feeding steps8
Spindle feed range25-285mm/min
Spindle taper7:24 IS040
Manual axial movement of the spindle (mm)80
The movement of each grid on the dial(mm)0.5
Spindle body rotation angle-45
Spindle speed level8
Spindle speed range150-1660r/min
Distance from the centerline of the horizontal spindle to the lower plane of the upper beam(mm)96
Distance from the front edge of the horizontal tableand thefront plane of the vertical guide rail of the bed due todifferent installation positions(mm)212-412
Distance between the centerline of the vertical spindle andthe front plane of the vertical guide rail of the bed(mm)155
Distance between the lower end face of the vertical spindleand the plane on the horizontal table(mm)0-285
Total power capacity(kVA)4
Main motor power(kw)3
Main motor speed(r/min)1430
Cooling water pump motor(w)40
Machine tool dimensions(longxwide xhigh)(mm)1450x1445x1650
(X8126A Technical Parameters)
ItemDetails
Distance from horizontal spindle centerline to table surfaceFirst installation position35-385mm
Second installation position42-392mm
Third installation position132-482mm
Longitudinal stroke of table(mm)350
Lifting stroke of table(mm)350
Table feeding steps8(Eight steps)
Table longitudinal and lifting feed range25-285mm/min
Table speed of vertical and vertical rapid movement1000mm/min
Number of T-slot6
Width of T-slot(mm)14
Distance of T-slot(mm)45
Table size(ongxwide)(mm)750x260
Number of T-slot5
Width of T-slot (mm)14
Distance ofT-slot(mm)45
Spindle taper of X8126A7:24 IS040
Lateral movement stroke of spindle (mm)200
Travel per revolution of the dial(mm)1.5
Spindle speed steps8
Spindle speed range110-1230r/min
