Z5040A
10001

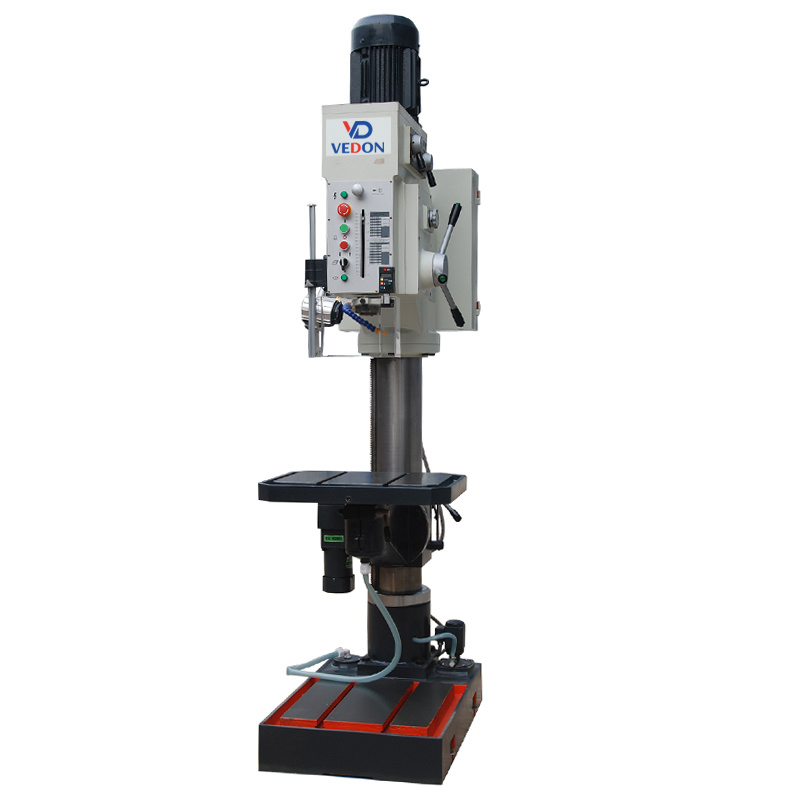

Item: Vertical Drilling Machine
Model: Z5040A
Max. drilling diameter: 40mm
Max. tapping diameter: M24
WhatsApp ：+86 173 5340 5464
Email ：admin@sdvedon.com

- PRODUCT PARAMETERS -

ItemVertical Drilling Machine
ModelZ5040A
Max. drilling diameter40mm
Max. tapping diameterM24
Distance from spindle axis to generating line of column360mm
Distance from spindle nose to workable surface600mm
Distance from spindle nose to base plate surface1215mm
Spindle travel180mm
Max. adjustment of workable and table rest560mm
Swivel of table and table rest+/-45°
Spindle taperMT4
Range of spindle feeds42-2050rpm
Number of spindle feeds12
Spindle feed range0.07,0.15,0.26,0.4mm/r
Column diameter160mm

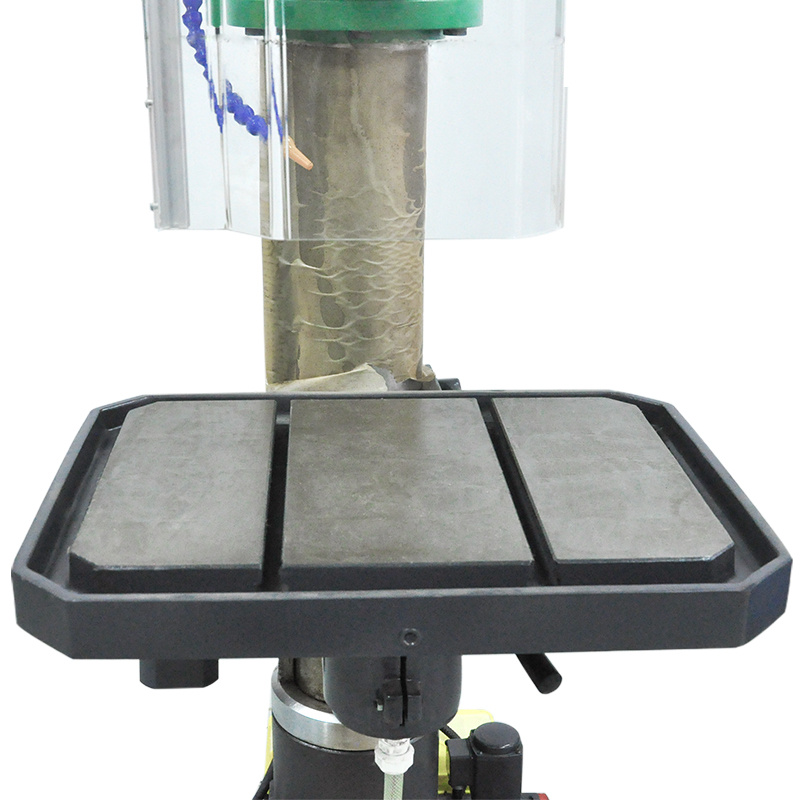

Effective working area of table (L*W)370*500mm
Effective working area of base plate (L*W)460*450mm
Dimension of T-slot of table and base plate2-14mm, 2-16mm
Main motor power2.2/2.8kw
Package size700*1150*2150mm
Weight740/800kg
