CW61160
10001

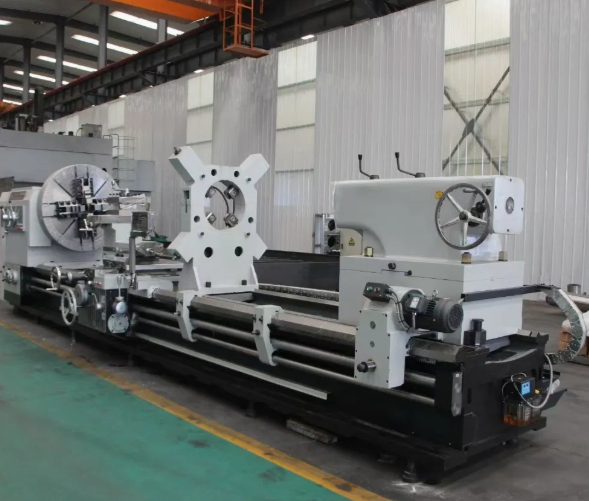

CW61160B lathe features Φ1600mm swing capacity, 1500-4000mm between centers, 22kW spindle motor, and manual 4-position turret. Ideal for heavy-duty metalworking.
WhatsApp ：+86 173 5340 5464
Email ：admin@sdvedon.com

- PRODUCT PARAMETERS -

ITEMSUNITCW61160B Lathe
CapacitySwing over bedmmΦ1600
Swing over cross slidemmΦ1200
Distance between centersmm1500/2000/3000/4000mm
Width of bed waymm755
Max. load capacityT6
SpindleSpindle boremmΦ130
Spindle nose taper-Metric 140 M1#6
Spindle nose type-A2-15
Spindle speed steps-FWD.21 steps
Spindle speed rangerpm3.15-315
Chuck sizemmΦ1000
Chuck type-4-jaw manual
TurretTurret type-Manual turret 4 position
Tool shank sizemm45x45
FeedX axis travelmm620
Z axis travelmm1350/1850/2850/3850
X axis feed grade/rangemm/r56/0.05-6
Z axis feed grade/rangemm/r56/0.1-12
X axis rapid traverse speedmm/min1870
Z axis rapid traverse speedmm/min3740
Metric thread grade/rangemm44/1-120
Inch thread grade/rangeT.P.I.31/28-3/8

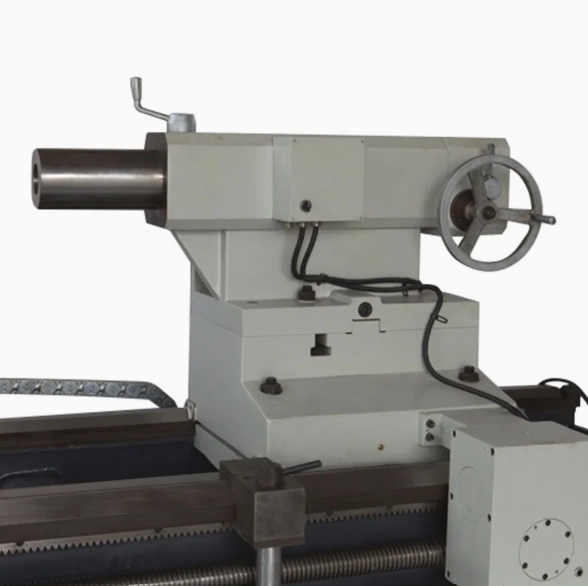

TailstockTailstock quill diametermmΦ160
Tailstock quill taper-MT#6
Tailstock quill travelmm300
MotorsMain spindle motorkW22
Rapid traverse motorkW1.5
Coolant pump motorkW0.125
DimensionsWidth x Heightmm2250×2150
Lengthmm4600/5100/6100/7100
WeightNet weightT11.2/11.6/12.3/13
