CMC650U
10001

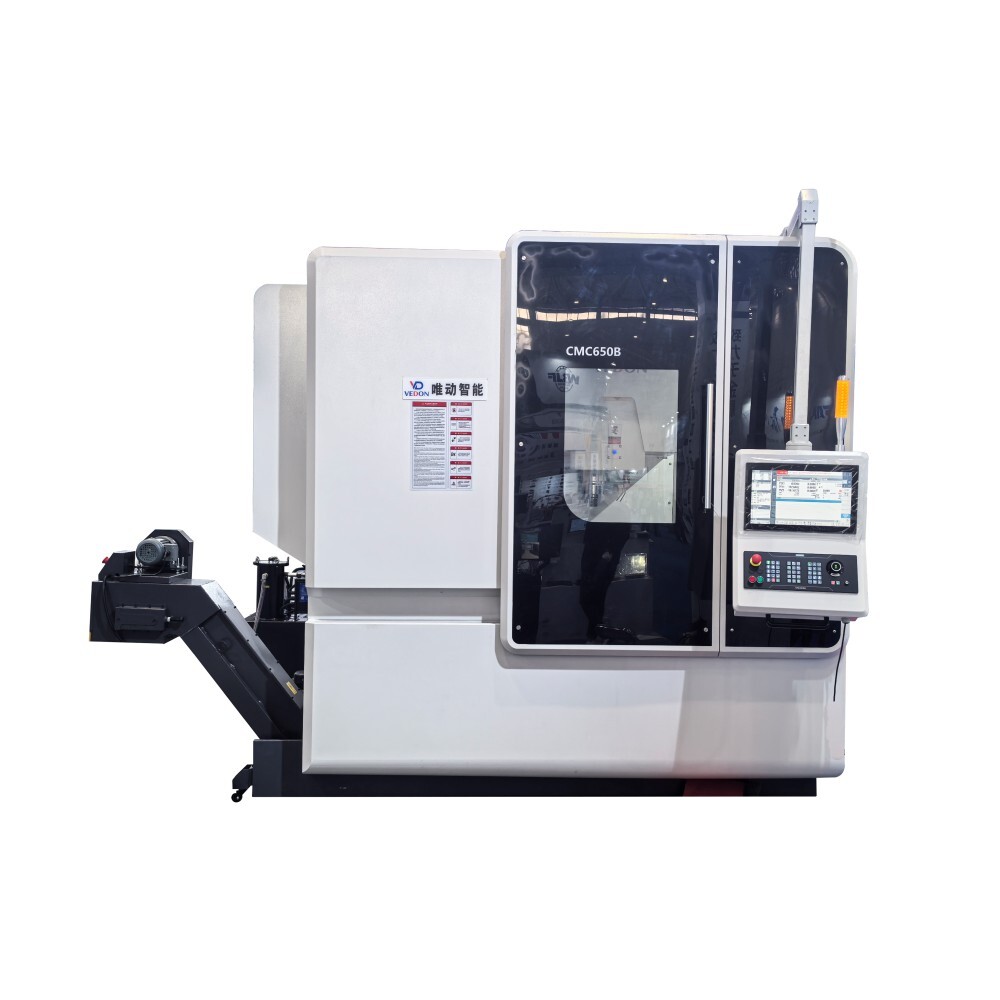

Discover the CMC650U 5-axis CNC milling machine with 650mm X-axis travel, 12000rpm spindle, and 24-tool capacity. Ideal for precision machining with ±5 arc-second accuracy.
WhatsApp ：+86 173 5340 5464
Email ：admin@sdvedon.com

- PRODUCT PARAMETERS -

SpecificationsUnitCMC650uRemark
Travel range
X axis travel
mm650
Y axis travel
mm520
Z axis travel
mm475
Spindle nose to table surface
mm150-625

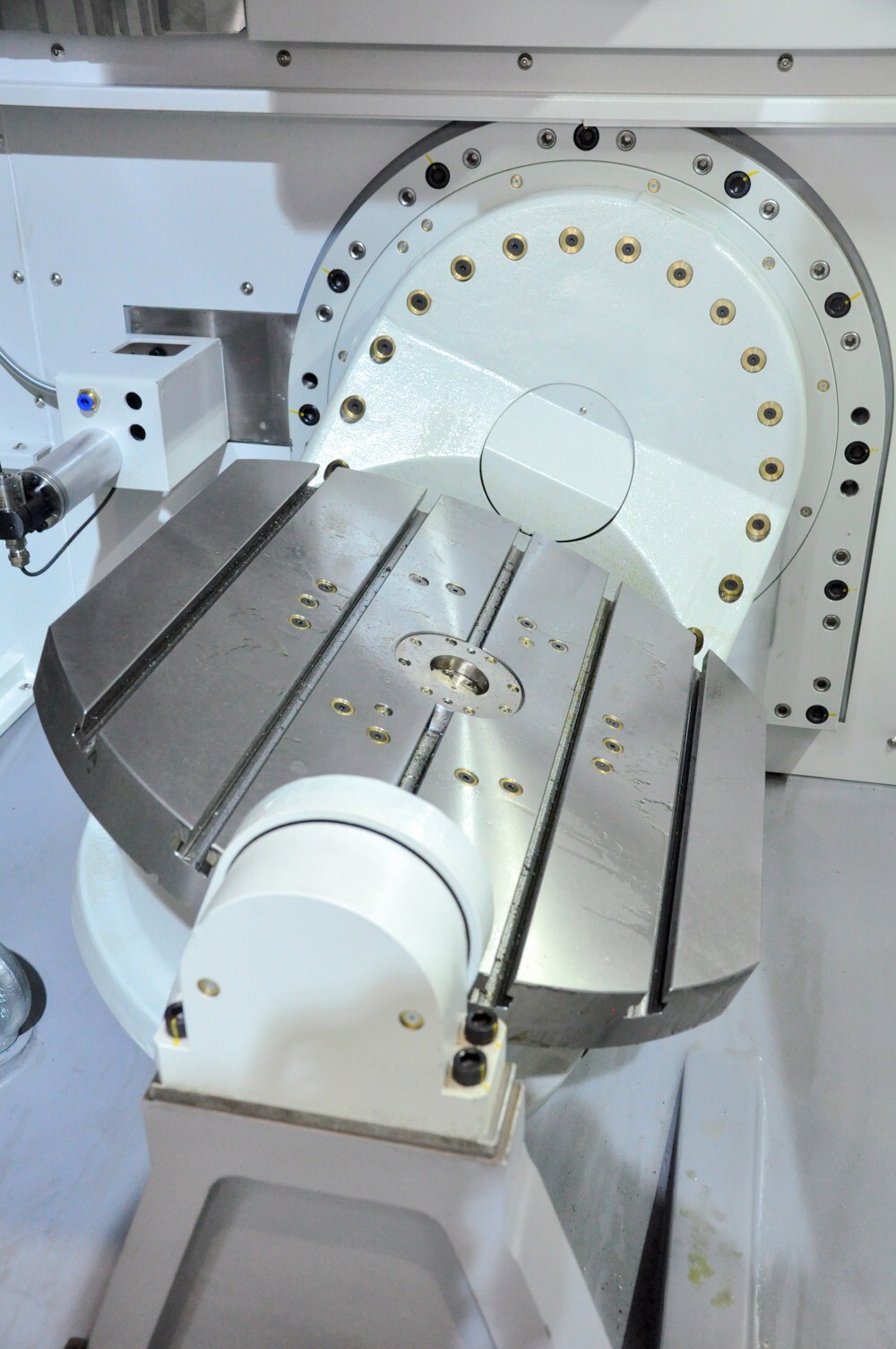

Table
Table size
mm0650X540
T slot(width×distance×quantity)

5-14-100
Max table load
kg300
Table tilting angle
°±120

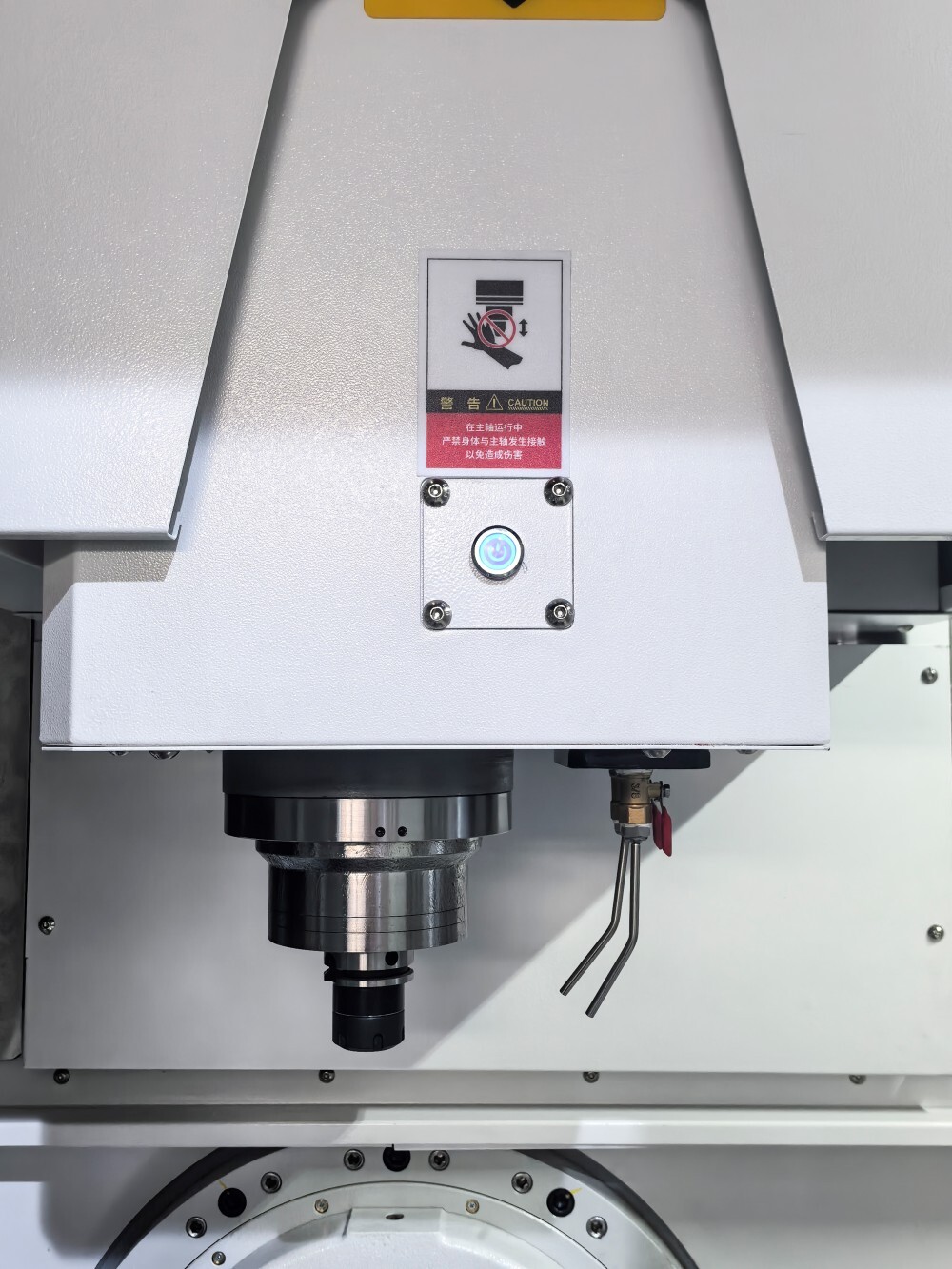

SpindleCELLS
Spindle speed
rpm40-12000
Spindle motor power
Kw7.5
Spindle taper

BBT 40
Spindle input torque(Max)
Nm90

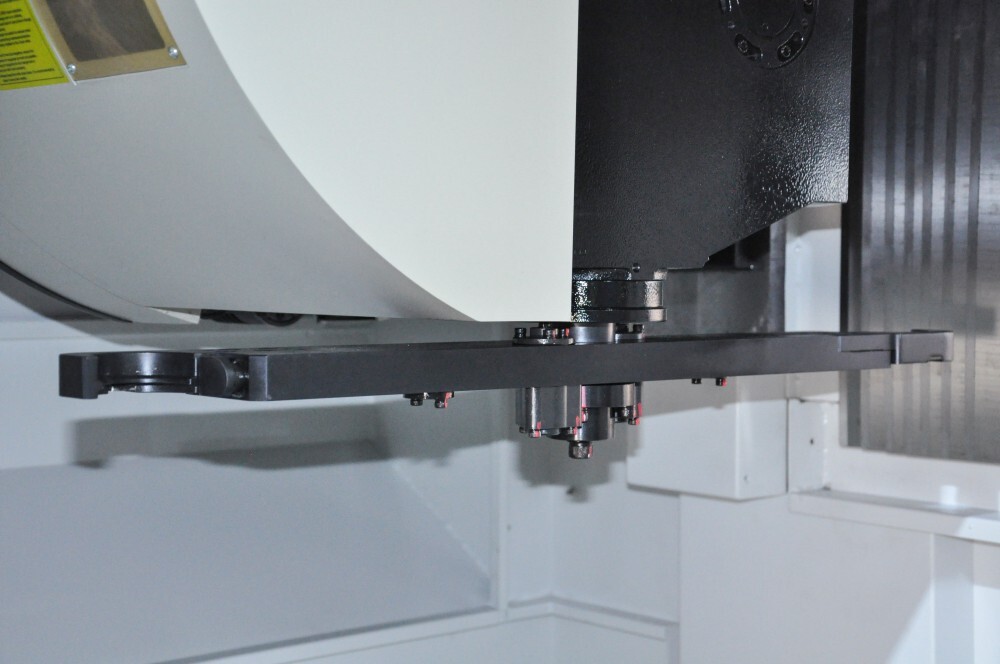

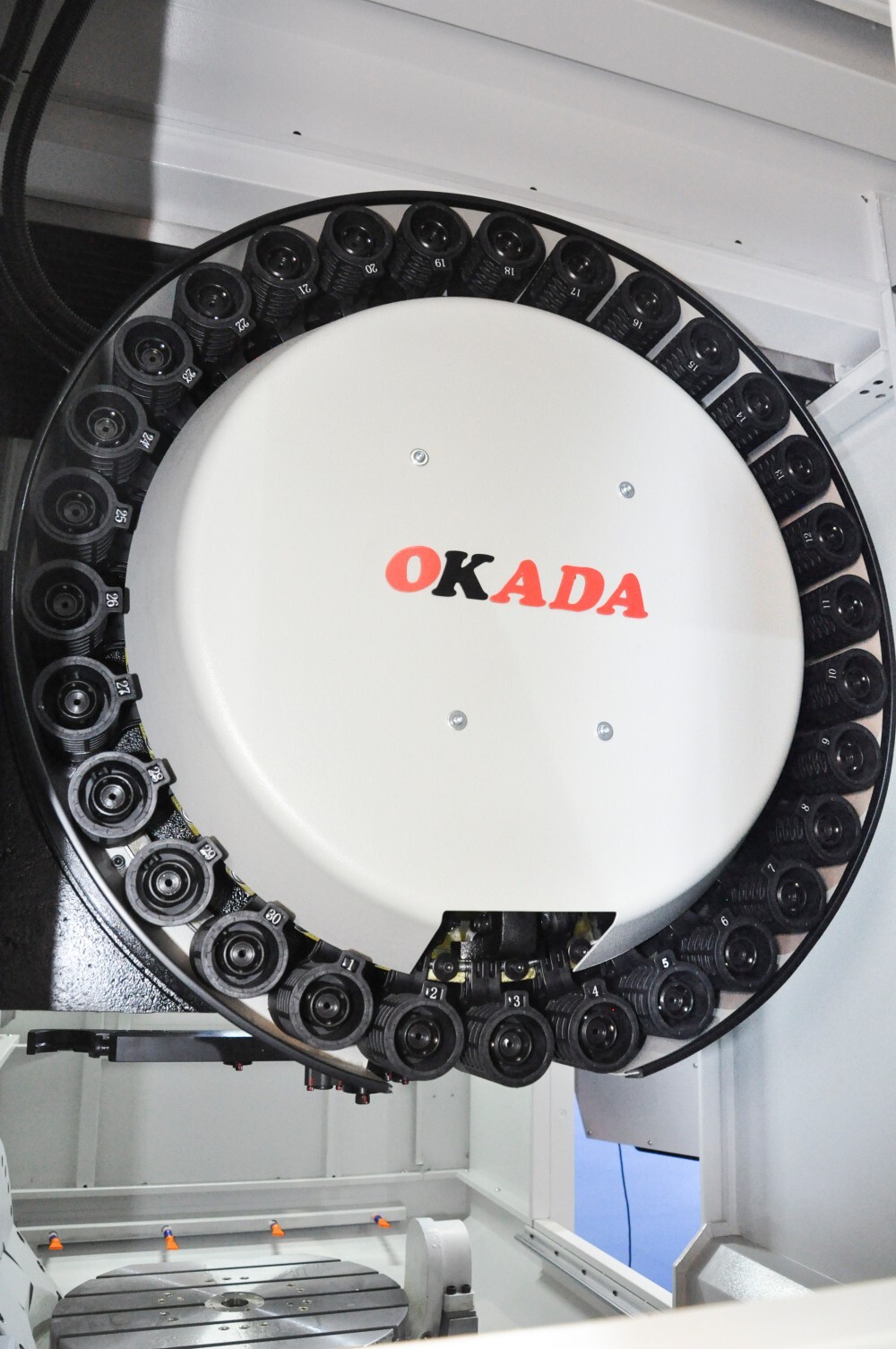

Tool magazine
ATCTool magazine capacity
24TEYON

Max tool diameter(Full/Empty)mm80/150

Max tool lengthmm300

Max tool weightkg8

Exchangings1.75/5


Feeding system
Rapid feedX,Y,Z axism/min42

B/C axisr/min60/100
Cutting feed speedmm/min1-10000
Accuracy
Positioning accuracyX,Y,Z axismm0.008

B axisAngular second±5

C axisAngular second±5
Repear positioning accuracyX,Y,Z axismm0.005

B axisAngular second4

C axisAngular second4

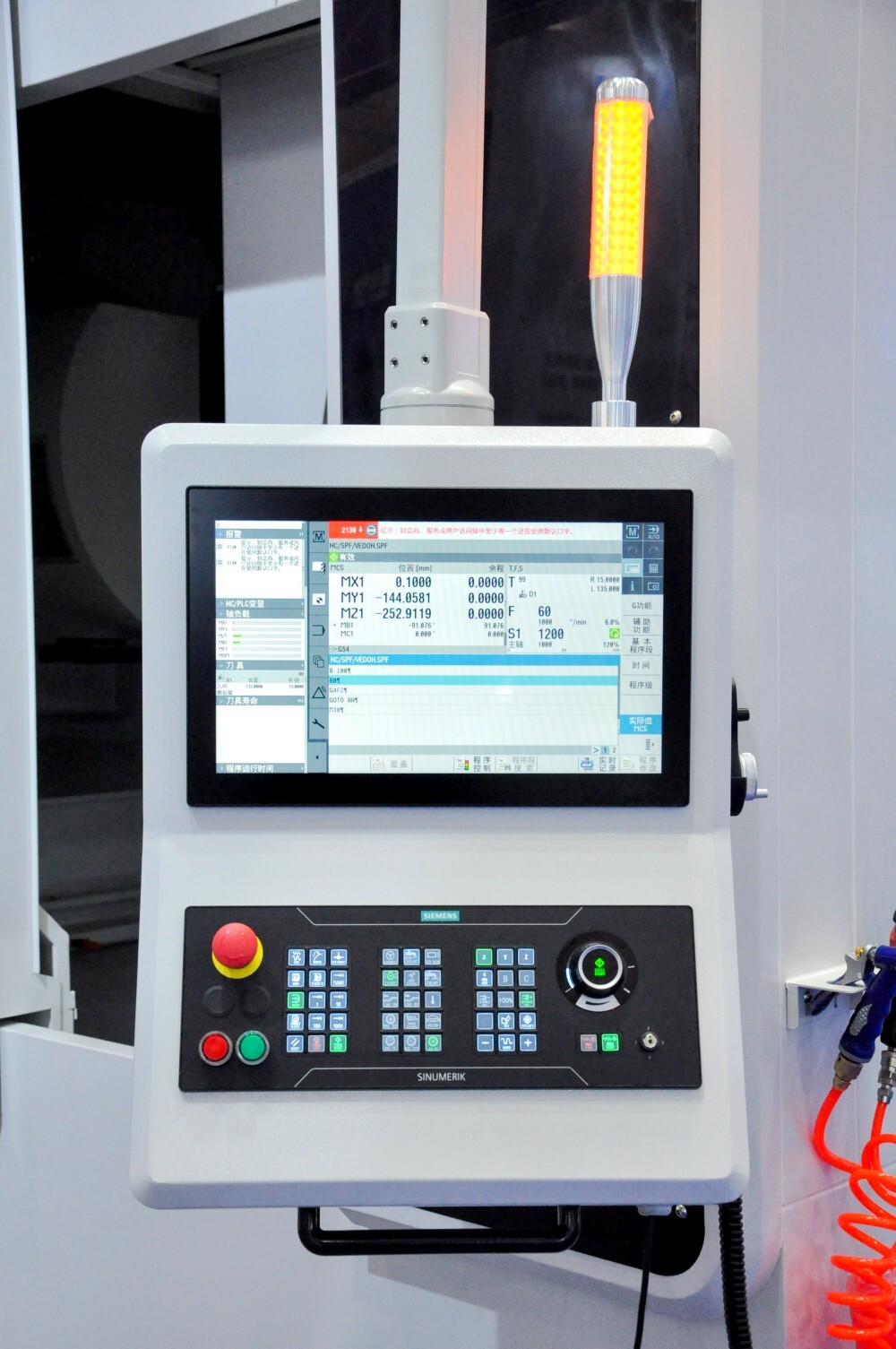

Controller
Model
SIEMENS ONE
Axis controlledAxes5
Axis linkageAxes3linear axis,2 rotary axis
Auxiliary functions
Power request

3 -380V±10%,50Hz
Air requestMpa0.5-0.7Mpa
Machine dimension
Lengthmm3970
Widthmm3250
Heightmm2870
Weightkg9500
