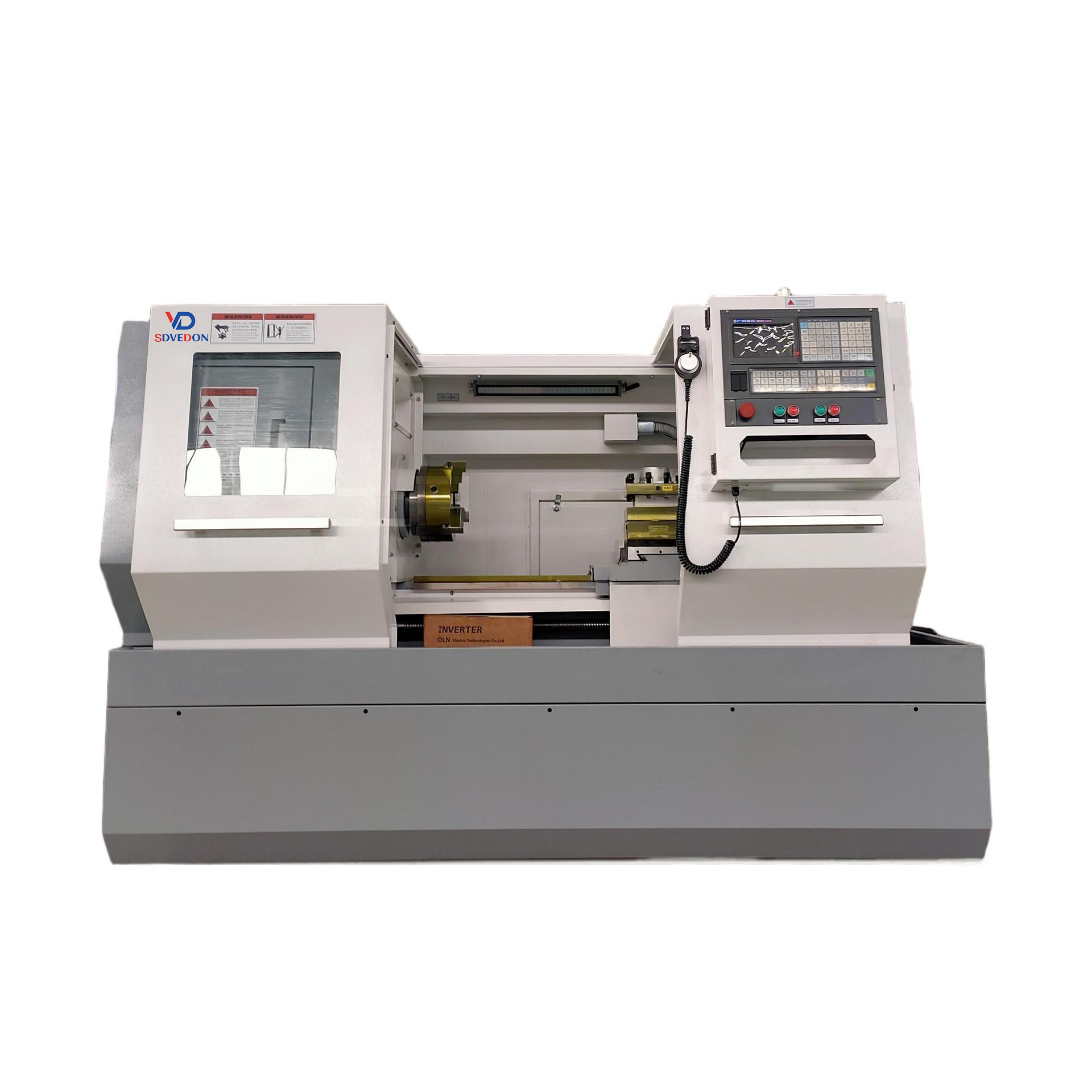

CK6150
10001
With digital control at its core, it breaks through the operational limitations of traditional lathes, transforming complex processes into precise instructions and providing efficient, stable, and consistent machining solutions. The spindle utilizes high-precision bearings for strong vibration resistance, maintaining stable accuracy even during long-term high-speed operation. The bed is constructed from a single piece of cast iron, treated with aging to eliminate internal stress, resulting in minimal deformation and ensuring long-term machining stability.

- PRODUCT PARAMETERS -

With digital control at its core, it breaks through the operational limitations of traditional lathes, transforming complex processes into precise instructions and providing efficient, stable, and consistent machining solutions. The spindle utilizes high-precision bearings for strong vibration resistance, maintaining stable accuracy even during long-term high-speed operation. The bed is constructed from a single piece of cast iron, treated with aging to eliminate internal stress, resulting in minimal deformation and ensuring long-term machining stability.


CategoryModelUnitCK6150CK6180CK61100
Processing capacityMaximum rotation diameter of bedmmΦ500Φ800Φ1000
Maximum rotation diameter of carriagemmФ290Φ450Φ630
Maximum cutting diametermmΦ500Φ800Φ1000
Maximum processing lengthmm150028501350
TravelMaximum travel of X/Z axismm300/1500450/3000480 / 1500
Minimum displacement unit of X/Z axismm0.0010.0010.001
SpindleDiameter of spindle holemmФ82Φ105Φ105
Number of spindle stages
Infinite/three gears (frequency conversion within gears)Stepless / 4-rangeStepless / 4-range
Maximum speed of spindlerpm150-2000/60-160030-84/53-150/120-350/300-83530-84 / 53-150 / 120-350 / 300-835
Spindle end
A2-8/C8A2-8/C8/c11A2-8 / C8 / c11
Main motor power (frequency conversion)kW7.51111
InverterkW7.51111
X/Z axisN.m5/7.510/1510 / 15
X/Z axis fast moving speedm/min’6/84/64 / 6
Feed tool holderTool rest type
4-station electric tool holder4-Station Electric Tool Turret4-Station Electric Tool Turret
Tool bar sizemm25*2532*3240*40
Tool rest repeat positioning accuracymm≤0.004≤0.004≤0.004
Tail stock sleeve diametermmΦ65Φ100Φ75
Tail stock sleeve travelmm130250200

Tail stock center taper hole
Mohs 5#Mohs 6#Mohs 6#
Net weight of machine toolkg180053005000
Overall dimensions of machine tool (length *width × height)mm2900*1300*16805200*1800*20003700*1800*2000
OtherPower requirement (power/current)kW/A15kW/20A20kW/30A20kW / 30A
