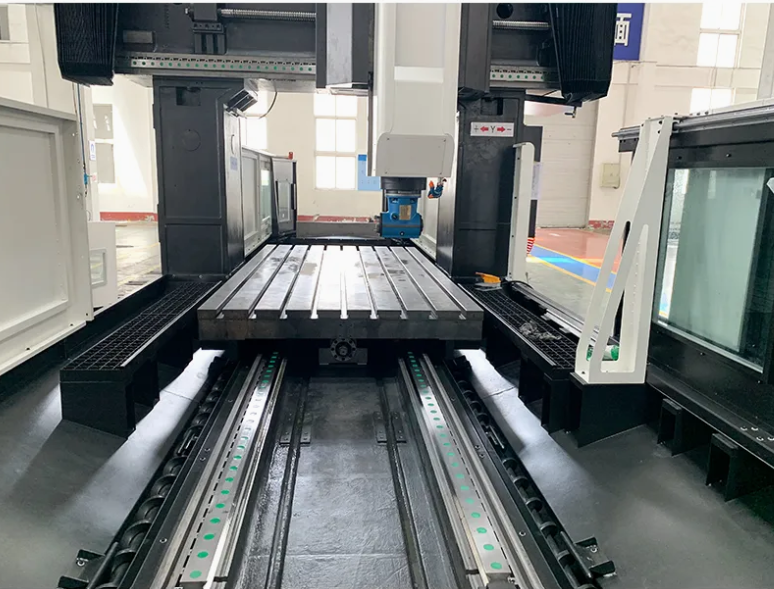

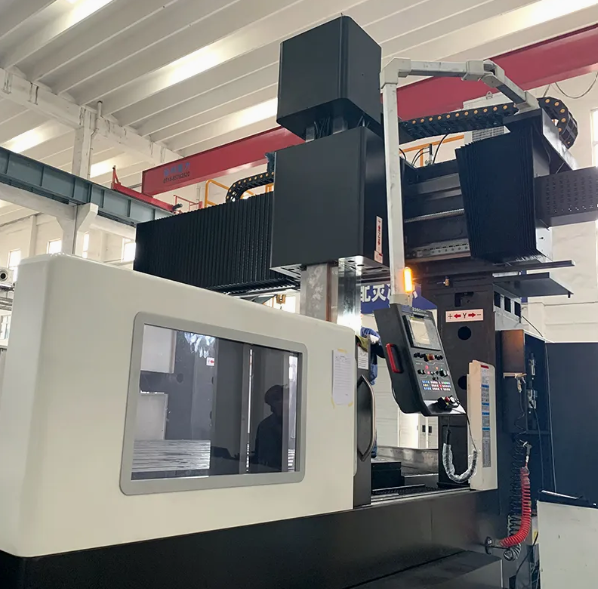

Gantry Machining Center
10001
Model: GMC1120
Worktable longitudinal travel: 2200mm
Slide carriage transverse travel: 1700mm
Milling head vertical travel: 800mm
WhatsApp ：+86 173 5340 5464
Email ：admin@sdvedon.com

- PRODUCT PARAMETERS -

ModelGMC1120
Worktable longitudinal travel2200mm
Slide carriage transverse travel1700mm
Milling head vertical travel800mm
Worktable size2000x1100mm
Max. load of worktable3500kg
Number/Width/Distance of T-slot7/22/160mm
Gantry width1600mm
Distance from spindle end to worktable surface150-950mm
Spindle taperBT50
Spindle speed10-3200rpm
Spindle motor power15/18.5kw
Feed speed X/Y/Zaxis1-10000/1-10000/1-8000 mm/min
Rapid feed X/Y/Zaxis15000/20000/12000 mm/min
Positioning accuracy X/Y/Z Axis+0.005/B17300JIS
Repeat positioning accuracy X/Y/Z Axis+0.003/B17300JIS
Overall dimension7450/4200/4580mm
Machine weight18000kg

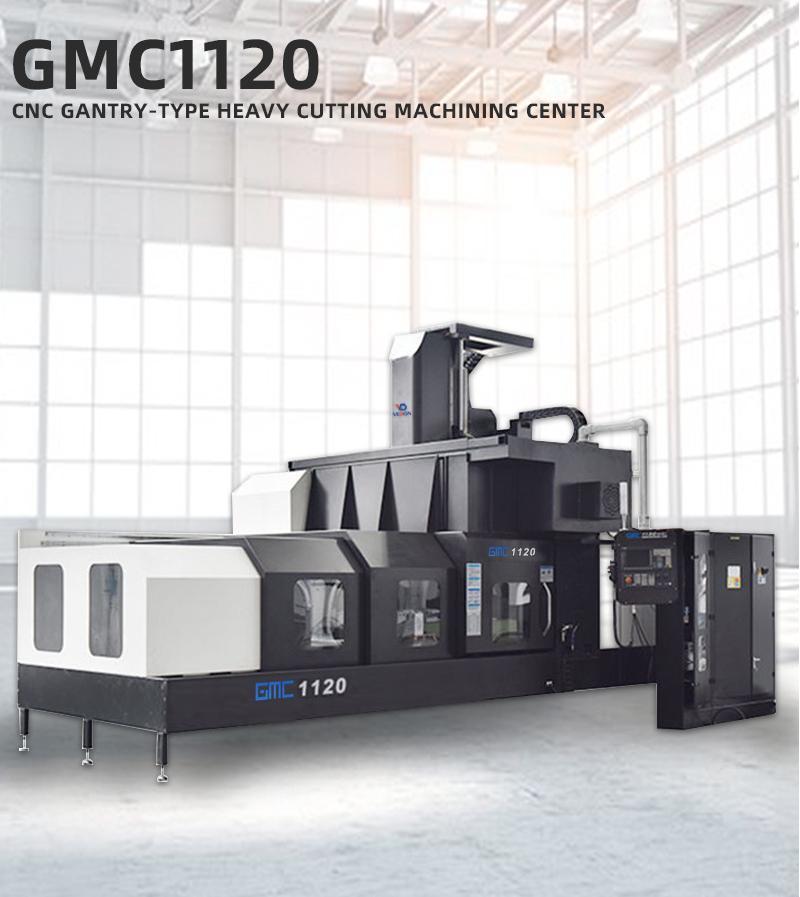

Shandong-Vedon-Intelligent-Equipment-Co-Ltd- (1)

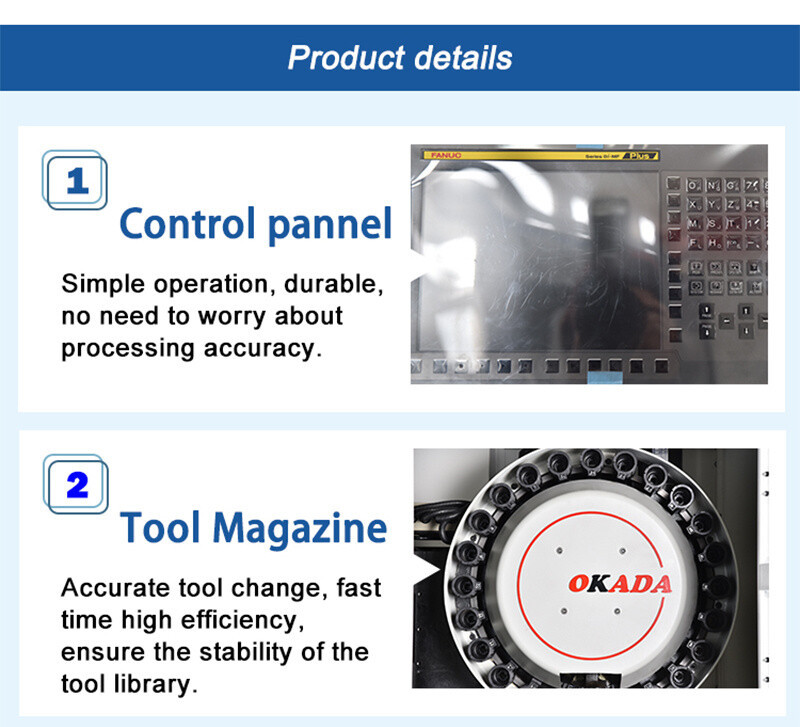

Shandong-Vedon-Intelligent-Equipment-Co-Ltd- (2)

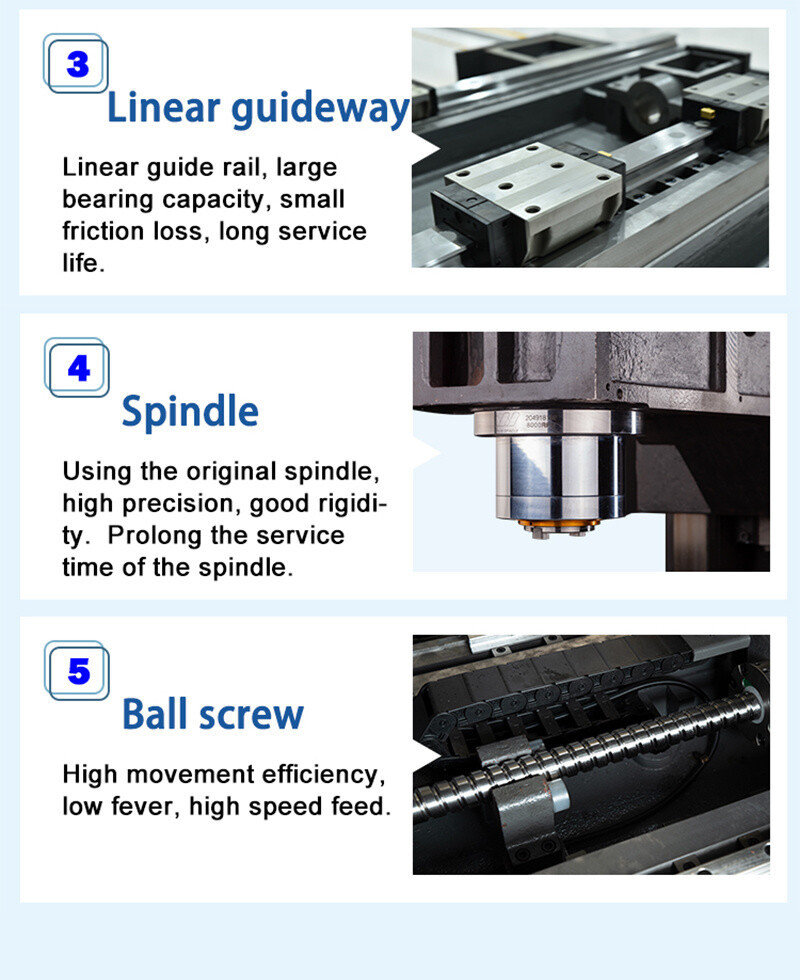

Shandong-Vedon-Intelligent-Equipment-Co-Ltd- (3)
