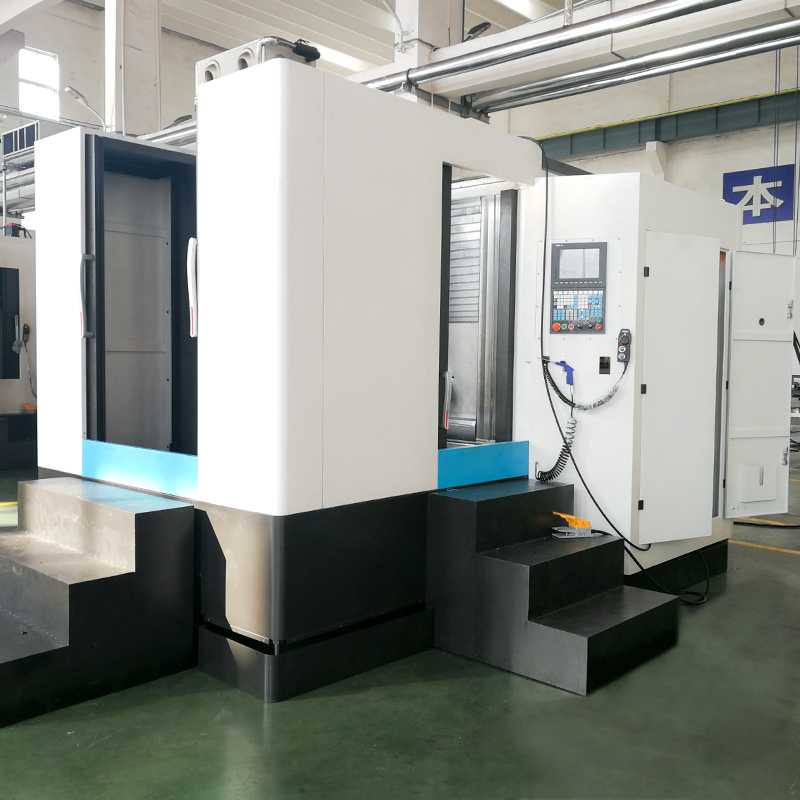

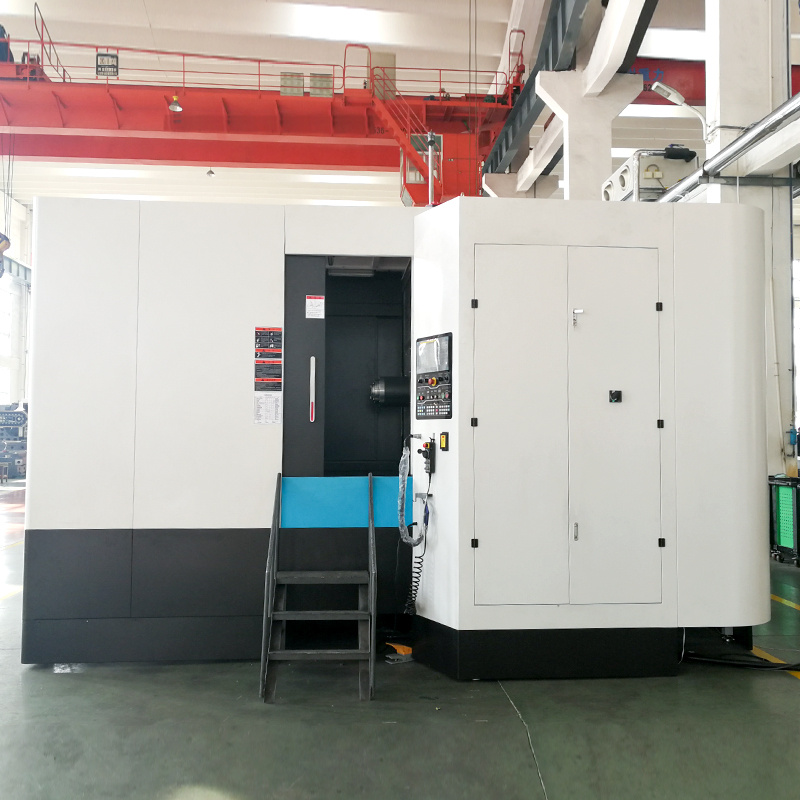

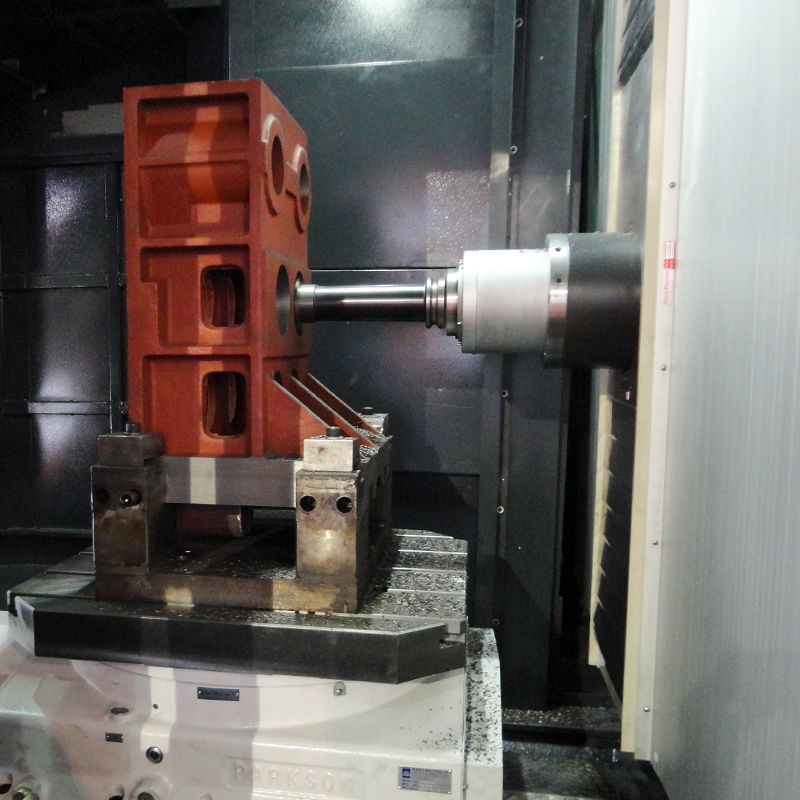

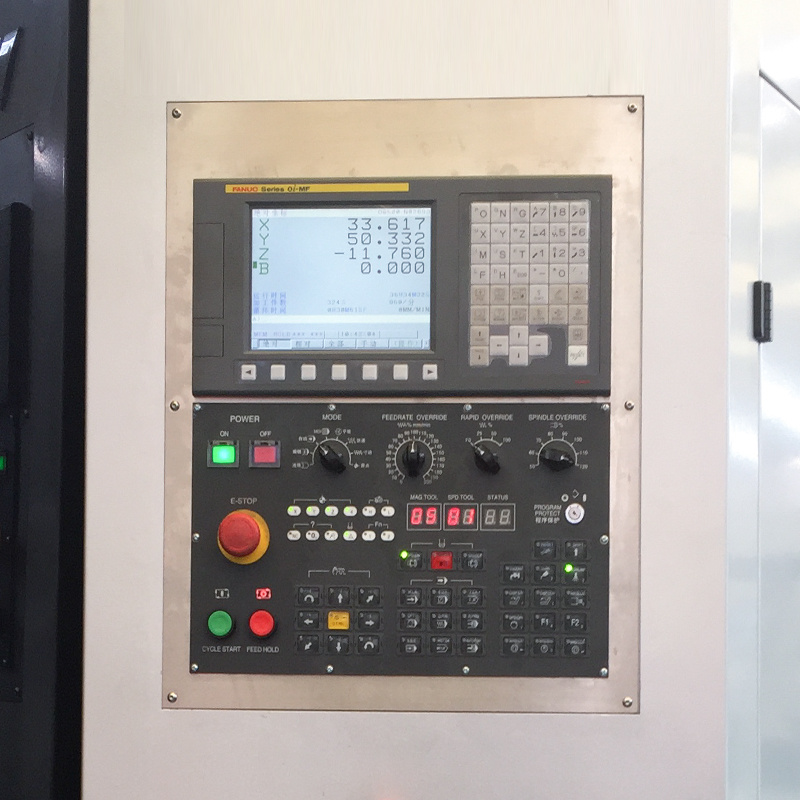

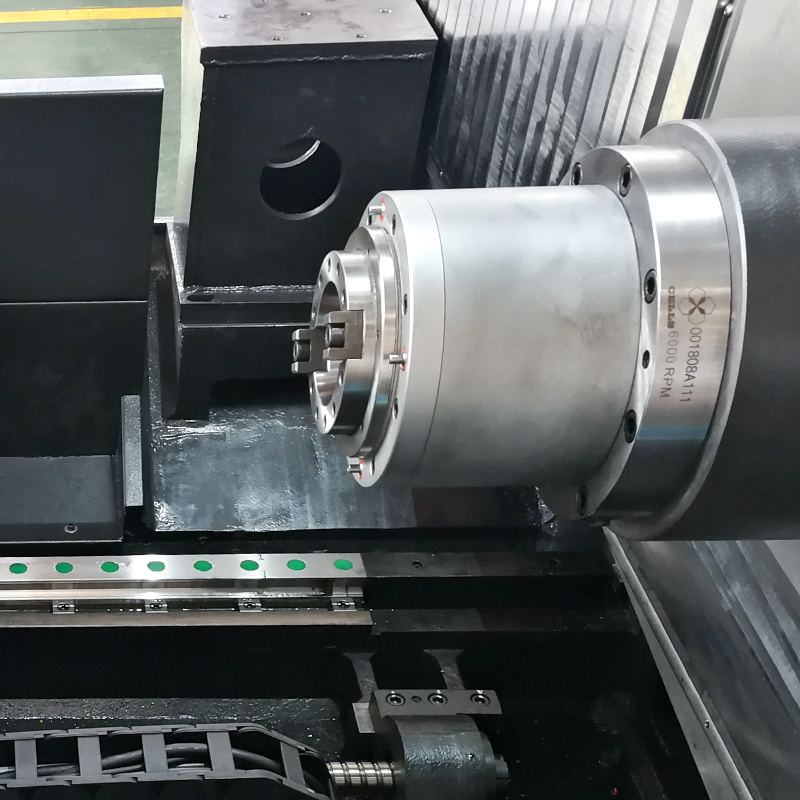

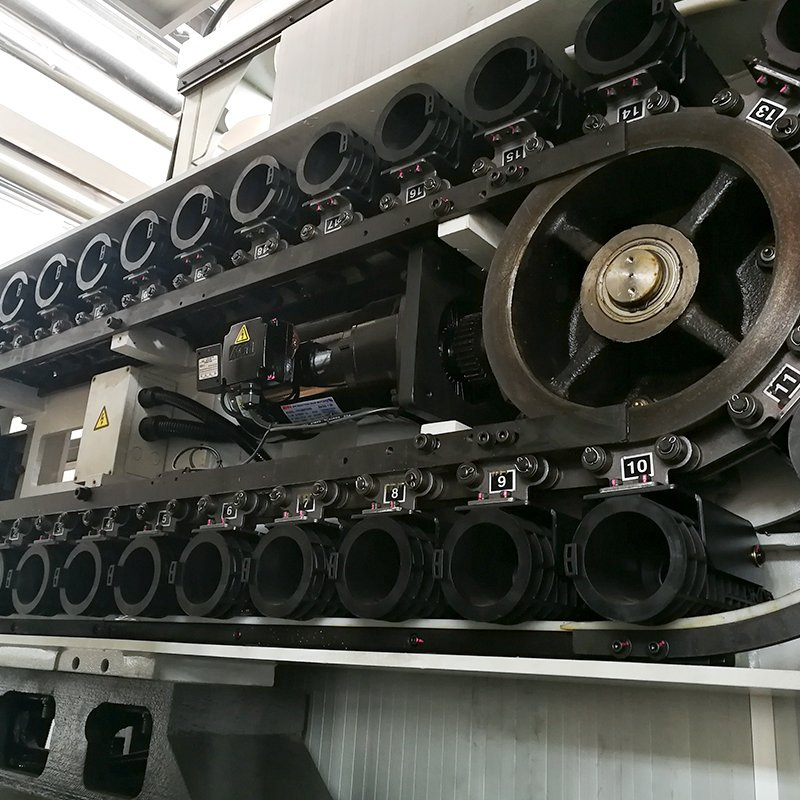

Horizontal machining center

Explore the NCH-50 Series Horizontal Machining Center - featuring high precision CNC milling, multiple workbench options, and advanced spindle technology for industrial applications.

WhatsApp ：+86 173 5340 5464

Email ：admin@sdvedon.com

- PRODUCT PARAMETERS -

50 series horizontal mill parameter table
name		unit	NCH-50	NCH-50A	NCH-50C	NCH-50LA	NCH-50L	NCH-50H	HMC-50VD
			Cross Saddle	Cross Saddle	Cross Saddle	Cross Saddle	Cross Saddle	Inverted T single station	Positive T double station
Workbench	Workbench size	mm	500×500	500×500	500×500	500×500	500×500	500×500	500×500
	Number of workbenches	-	1	1	1	1	1	1	2
	Workbench indexing	-	1° or 0.001°	0.001°	1°	1° or 0.001°	1° or 0.001°	1° or 0.001°	1° or 0.001°
	Workbench exchange time	s	——	——	——	——	——	——	12
	Maximum load of workbench	kg	400	400	400	800	800	1000	500
	T-slot (number of slots x slot width x spacing)	mm	5X18X100	5X18X100	5X18X100	5X18X100	5X18X100	5×18×100	5×14×100
	Maximum workpiece rotation diameter	mm	Φ900	Φ900	Φ900	Φ1000	Φ1000	Φ1300	Φ800
	Maximum speed of worktable	r/min	12	12	12	12	12	12	16.66
journey	Workbench moves left and right (X direction)	mm	700	700	700	1000	1000	1050	800
	Spindle box moves up and down (Y direction)	mm	600	600	600	650	650	750	750
	Workbench/column movement forward and backward (Z direction)	mm	580	580	580	600	600	900	800
	Distance from spindle centerline to worktable	mm	90～690	50～650	105～705	-40~610	-40~610	110～860	150～900
	Distance from spindle end to worktable center	mm	120～700	160～740	170～750	200～800	200～800	120～1020	50～850
spindle	Spindle taper number	-	ISO7:24 No.40	ISO7:24 No.40	ISO7:24 No.40	ISO7:24 No.40	ISO7:24 No.50	ISO7:24 No.50	ISO7:24 No.50
	Maximum spindle speed	rpm	8000	10000	10000	8000	8000	6000	6000
	Spindle motor power	kw	11/15	11/15	11/15	9/11	9/11	15/18.5	15/18.5
	Maximum torque of spindle motor	Nm	95.5	95.5	95.5	140	140	259	259
Tool magazine	Tool magazine capacity	Bundle	24/32	24/32	24	24/30	24/30	24/30/40	24/30/40
	Knife selection method	-	random	random	random	random	random	random	random
	Maximum tool diameter × length	mm	Φ78×300	Φ80×300	Φ80×300	Φ110×350	Φ110×350	Φ125×350	Φ112×350
	Maximum tool diameter (no adjacent tool)	mm	Φ120	Φ150	Φ150	Φ200	Φ200	Φ230	Φ200
	Maximum tool weight	kg	8	8	8	15	15	18	25
	Tool exchange time (tool to tool)	s	3.8	3.8	3.8	3.76	3.76	4.75	3.31
Rapid traverse speed	X/Y/Z	m/min	36	36	36	36	36	24	48
Machine tool accuracy	Positioning accuracy (X/Y/Z)	mm	0.01	0.01	0.01	0.01	0.01	0.01	0.01
	Positioning accuracy (B axis)	″	10	20	10	10	10	10	10
	Repeat positioning accuracy (X/Y/Z)	mm	0.006	0.006	0.006	0.006	0.006	0.006	0.006
	Repeat positioning accuracy (B axis)	″	4	4	4	4	4	4	2
other	Optical machine weight	kg
	Machine weight	kg	6000	6000	6000	7500	7500	12000	12500
