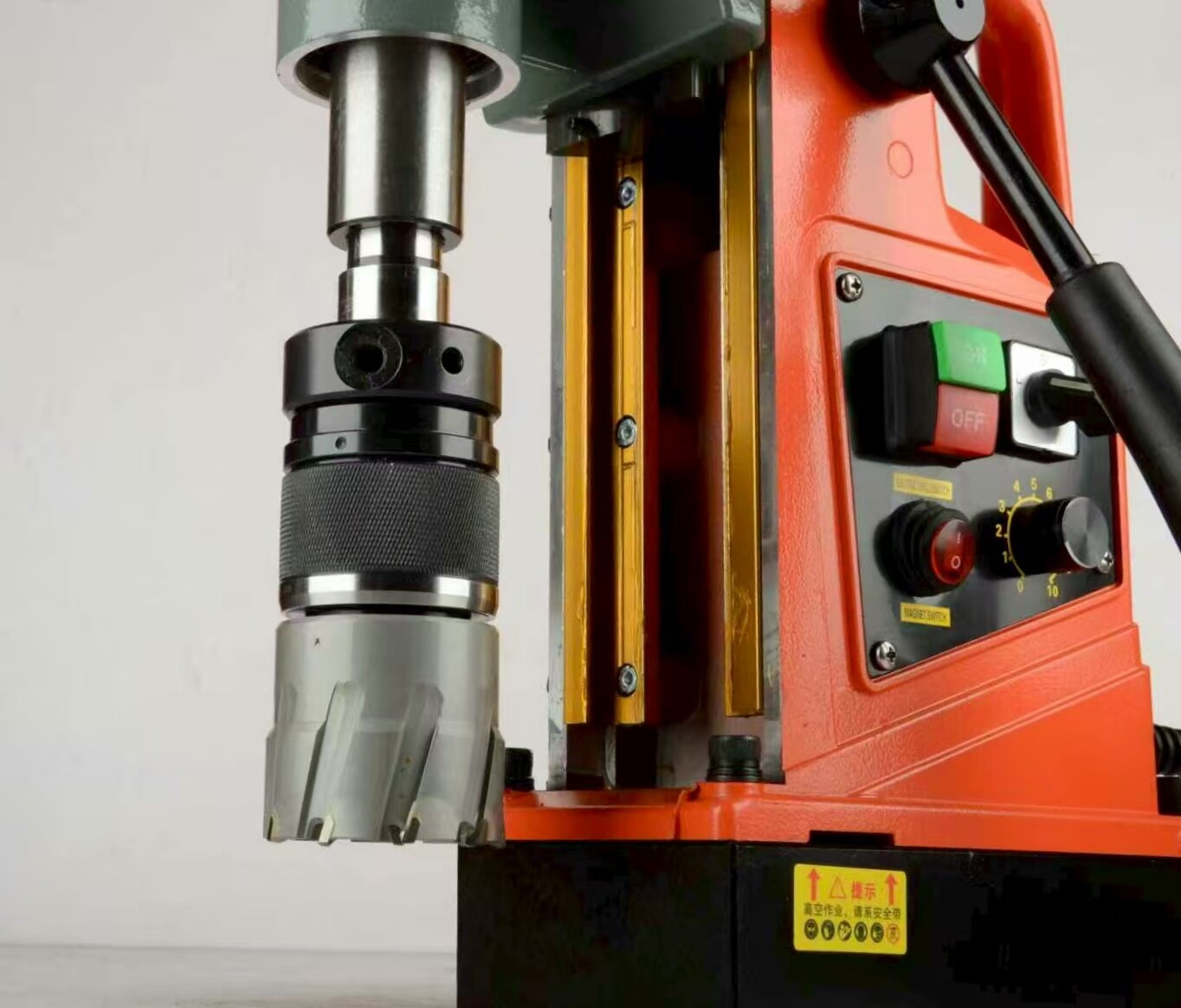

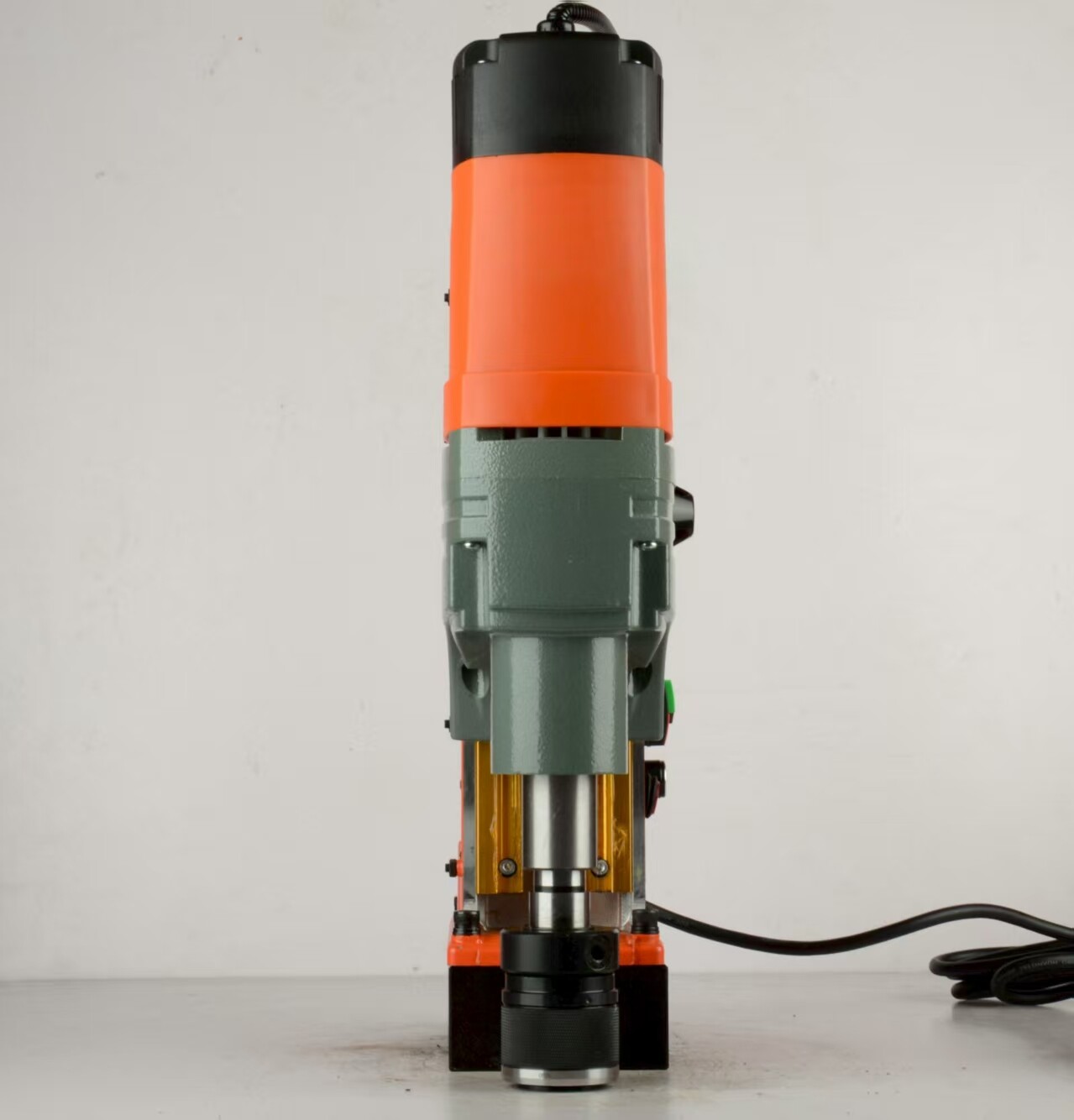

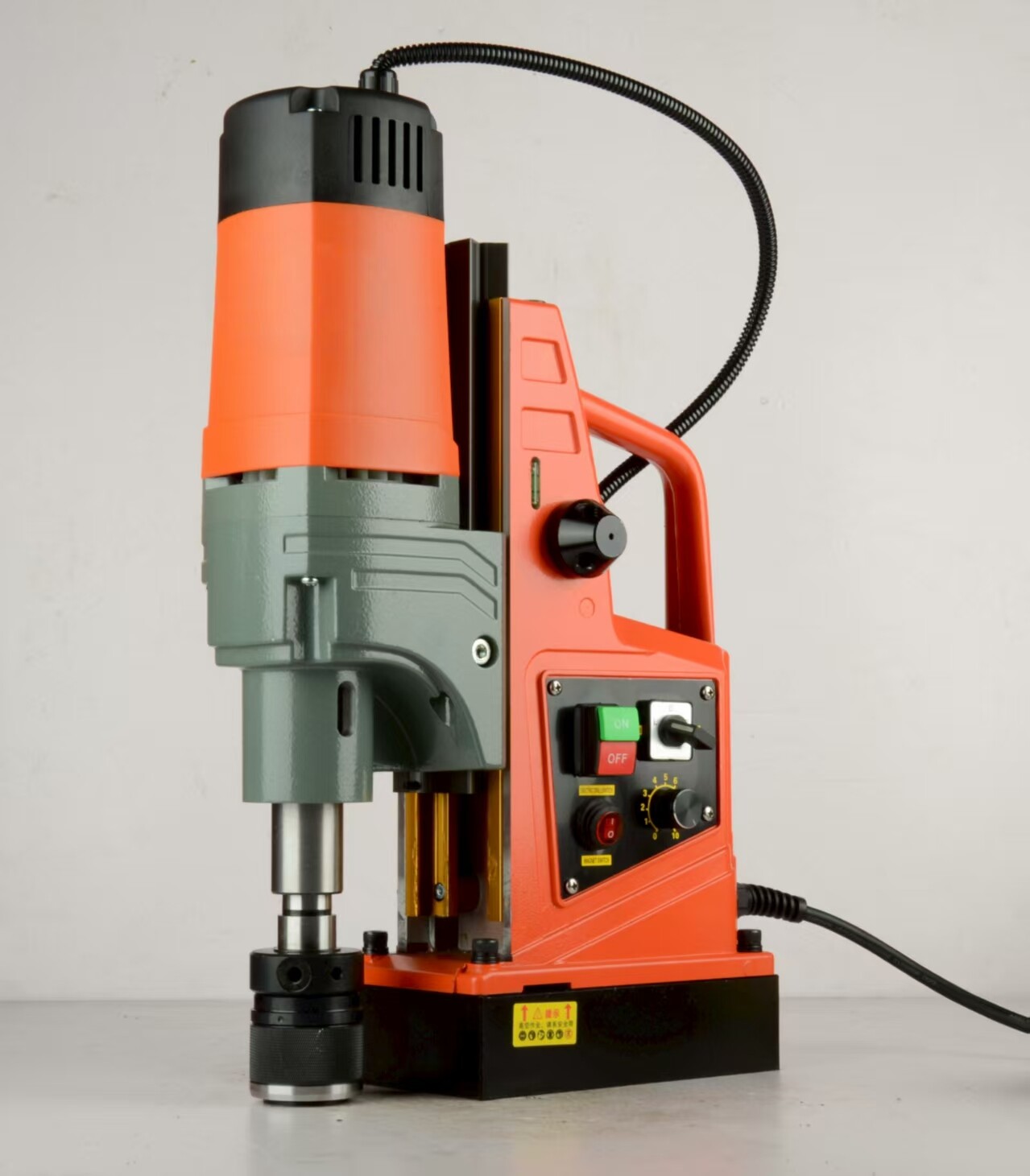

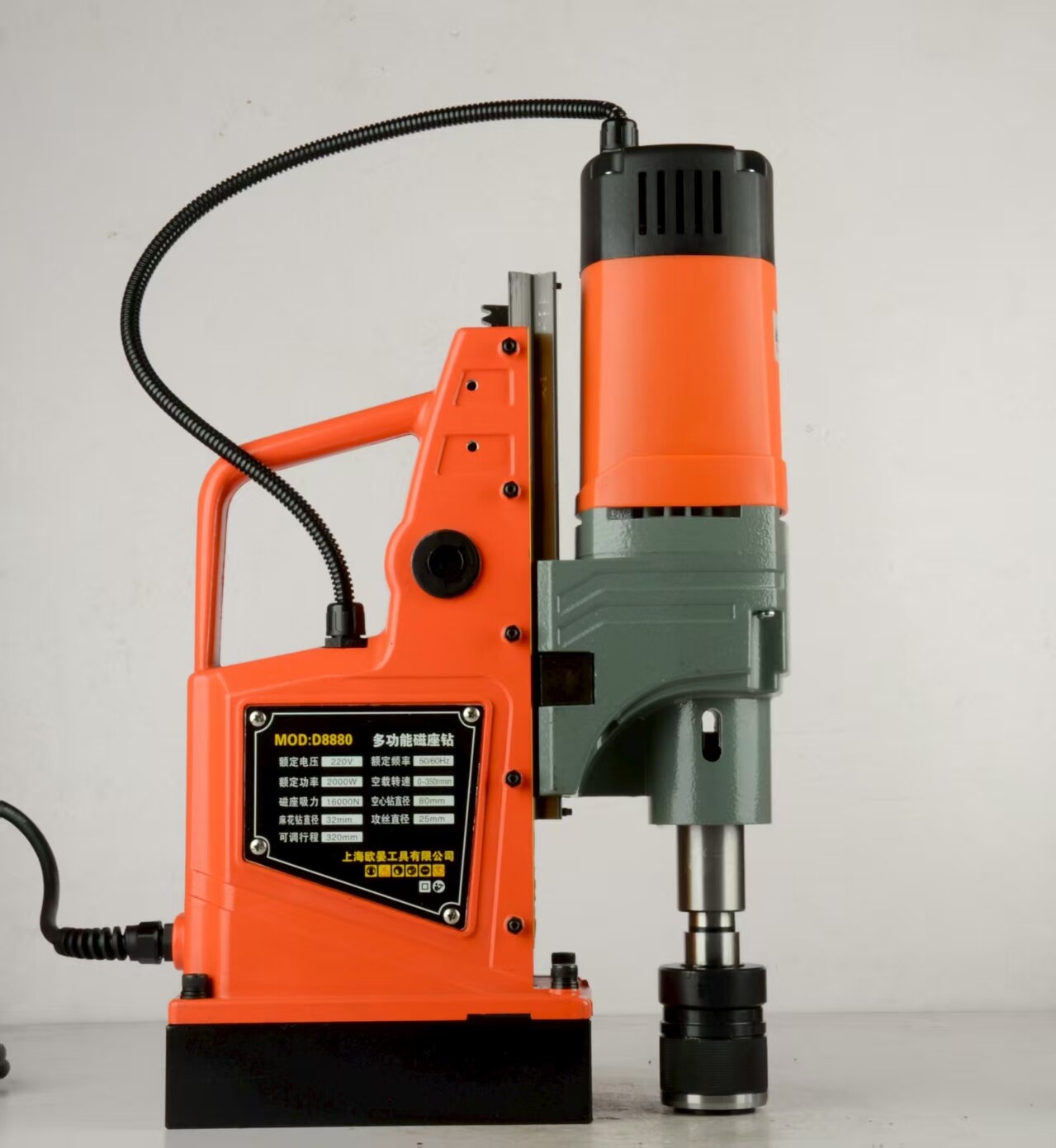

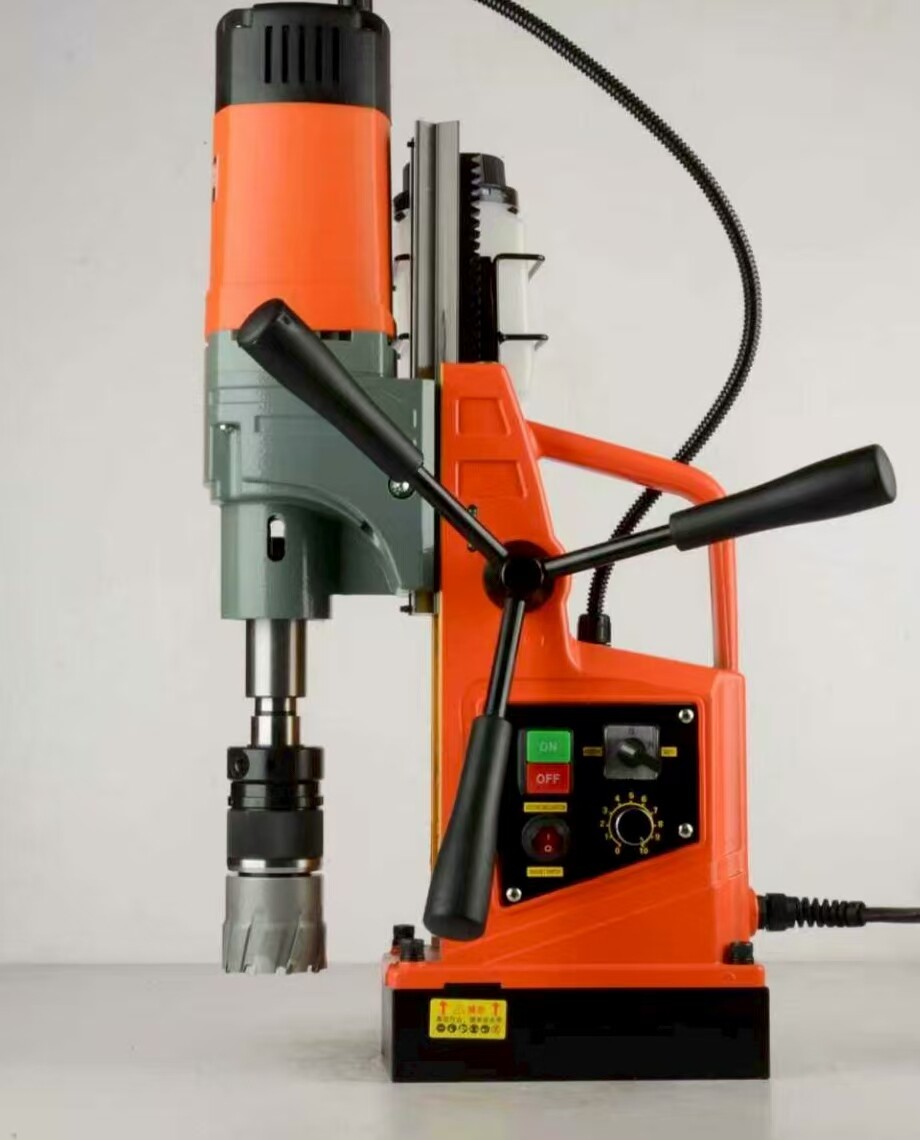

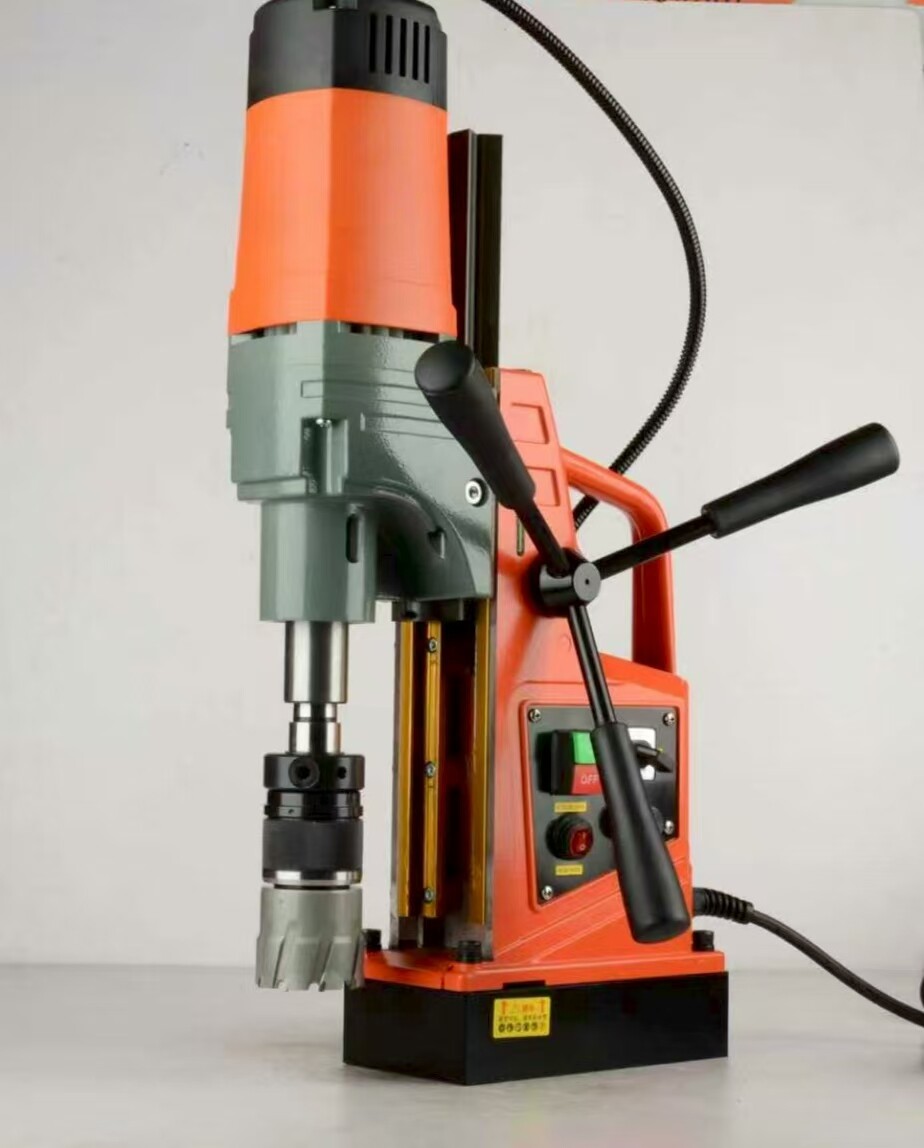

VDD80Z
10001

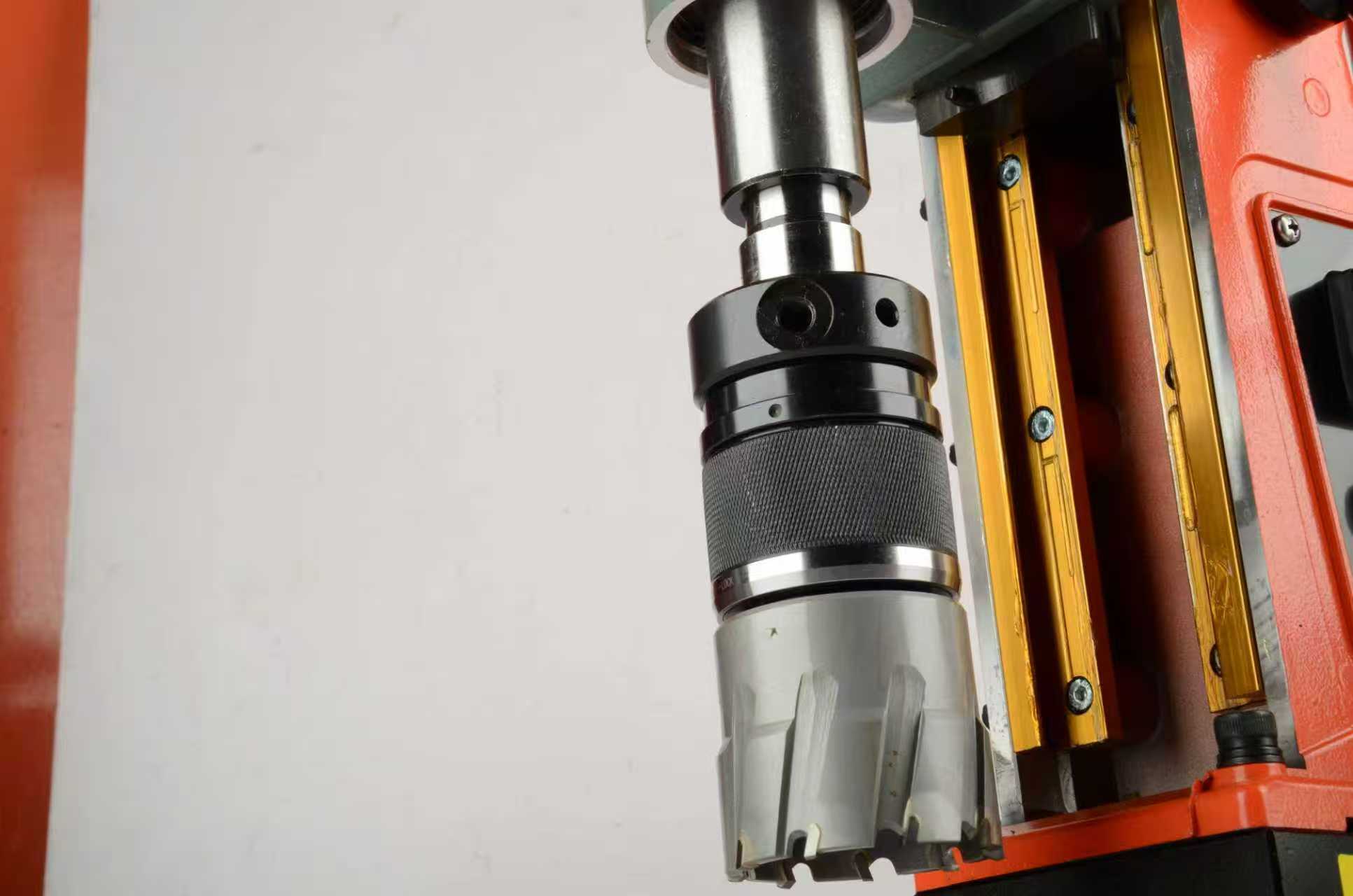

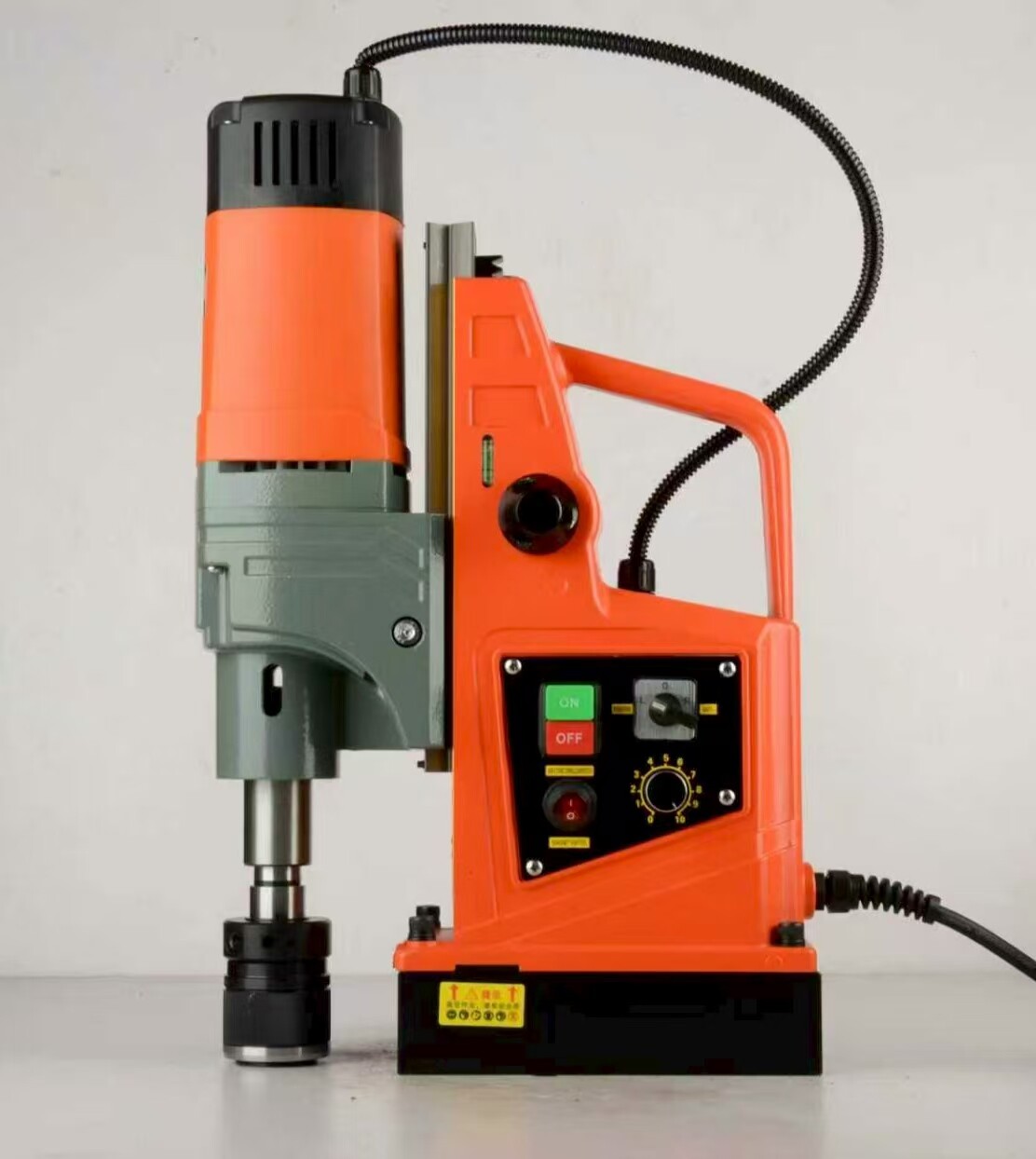

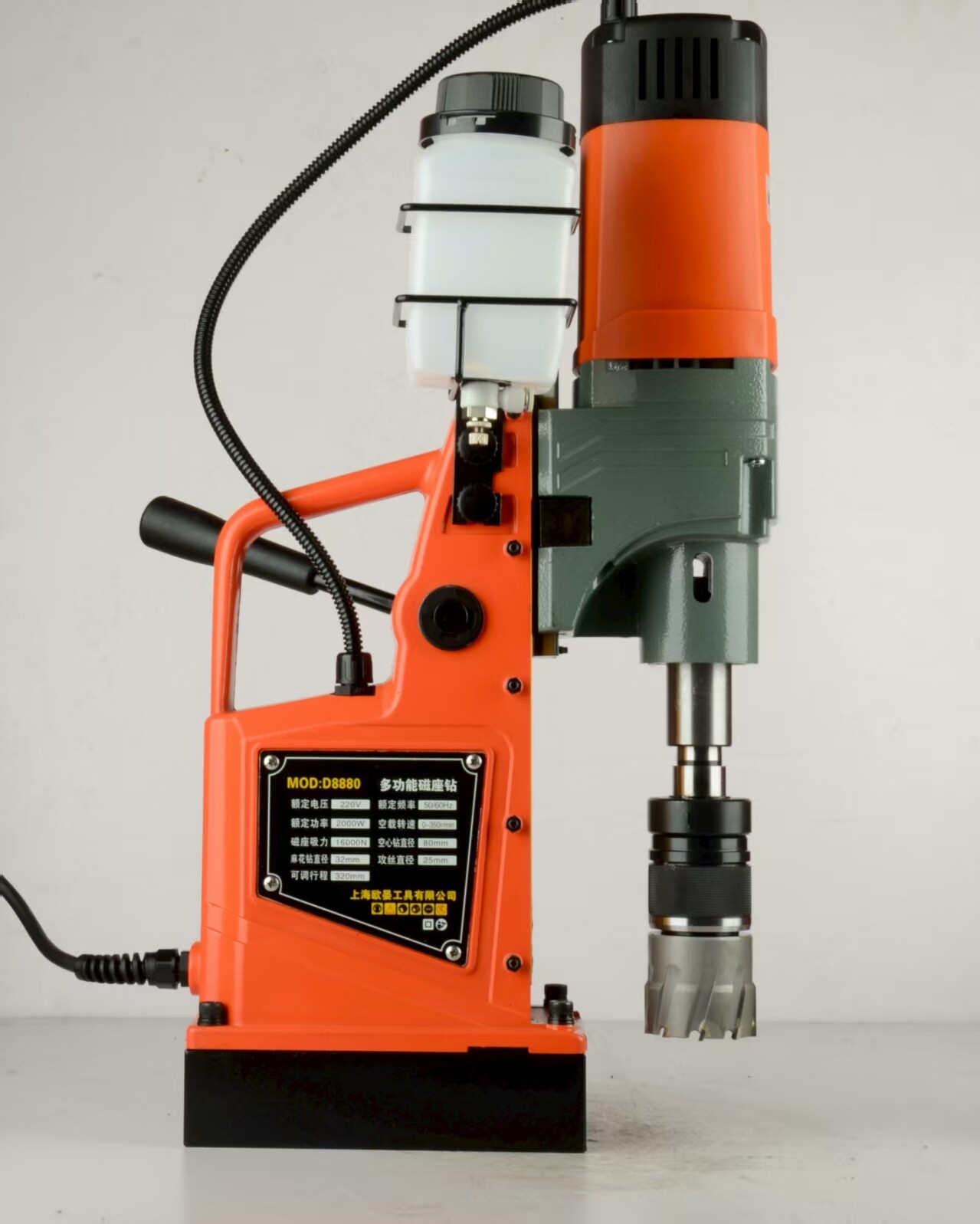

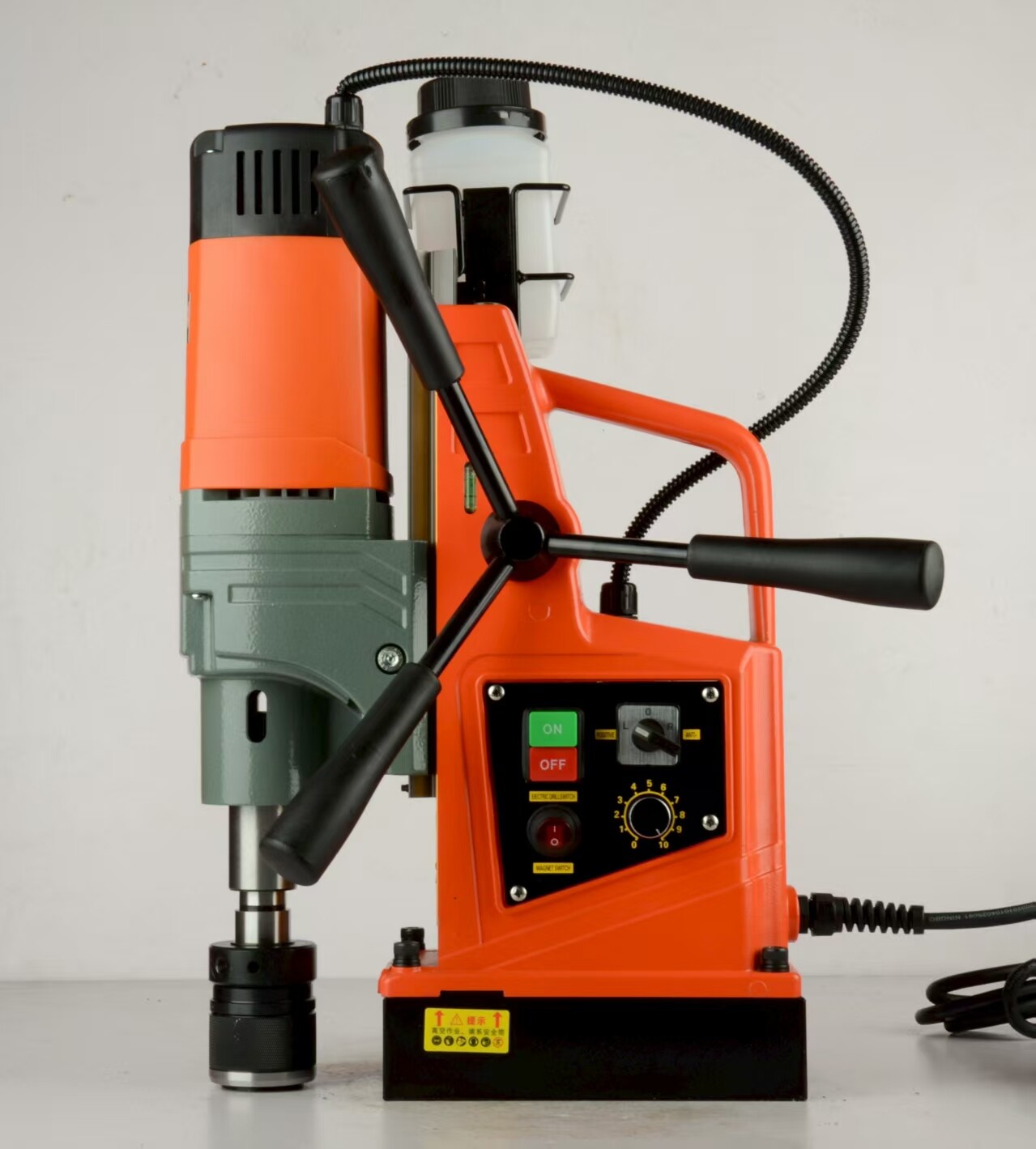

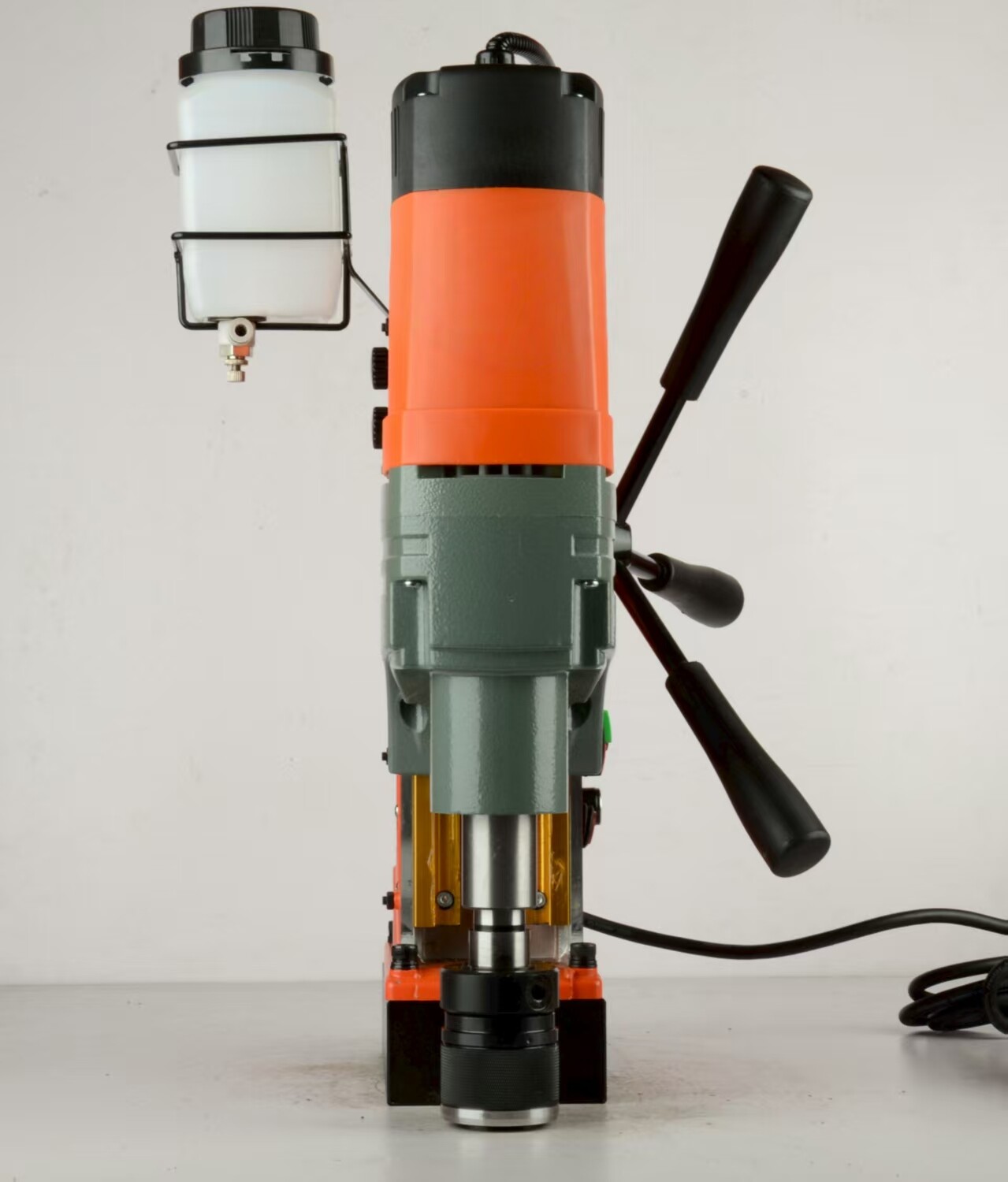

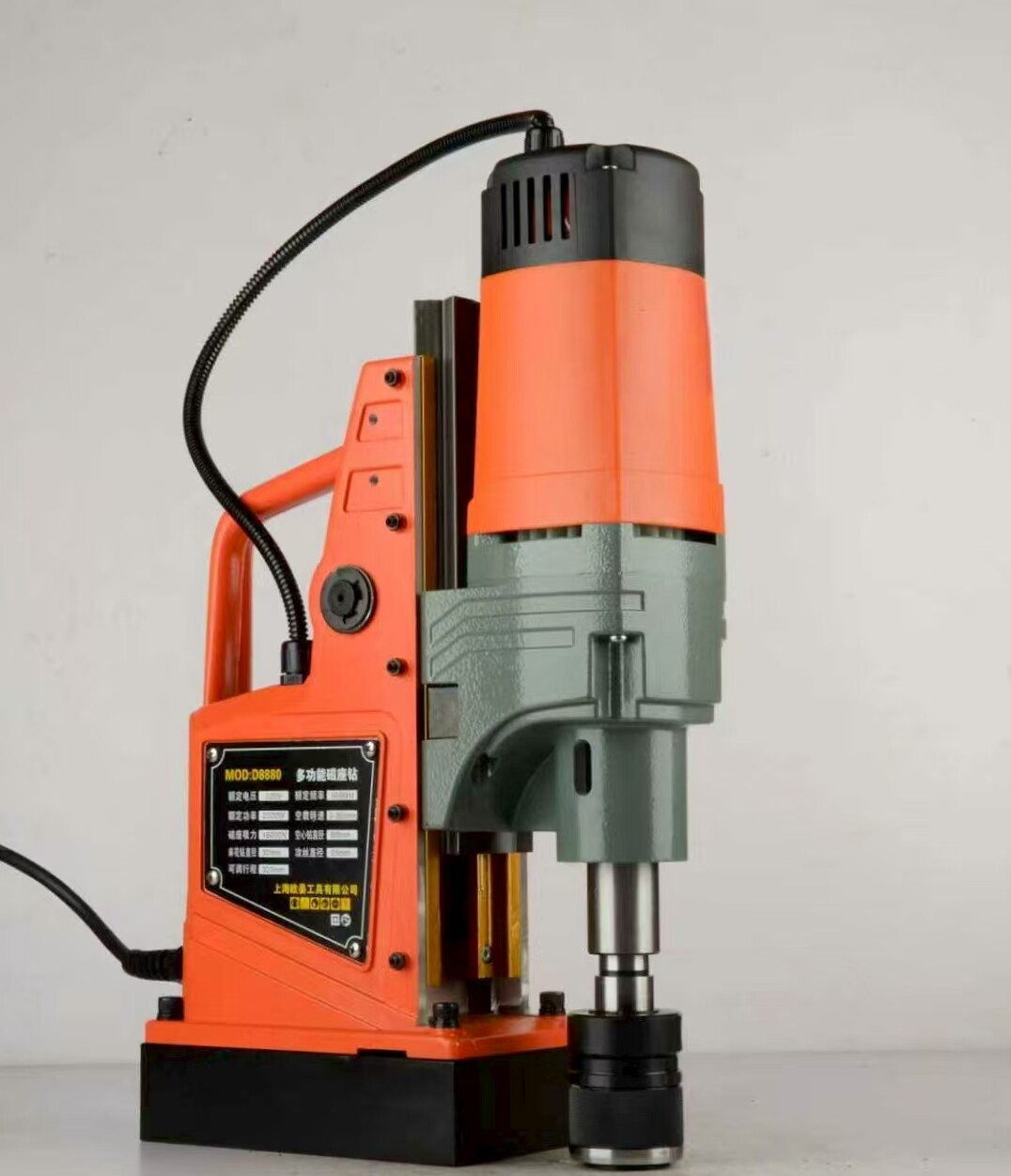

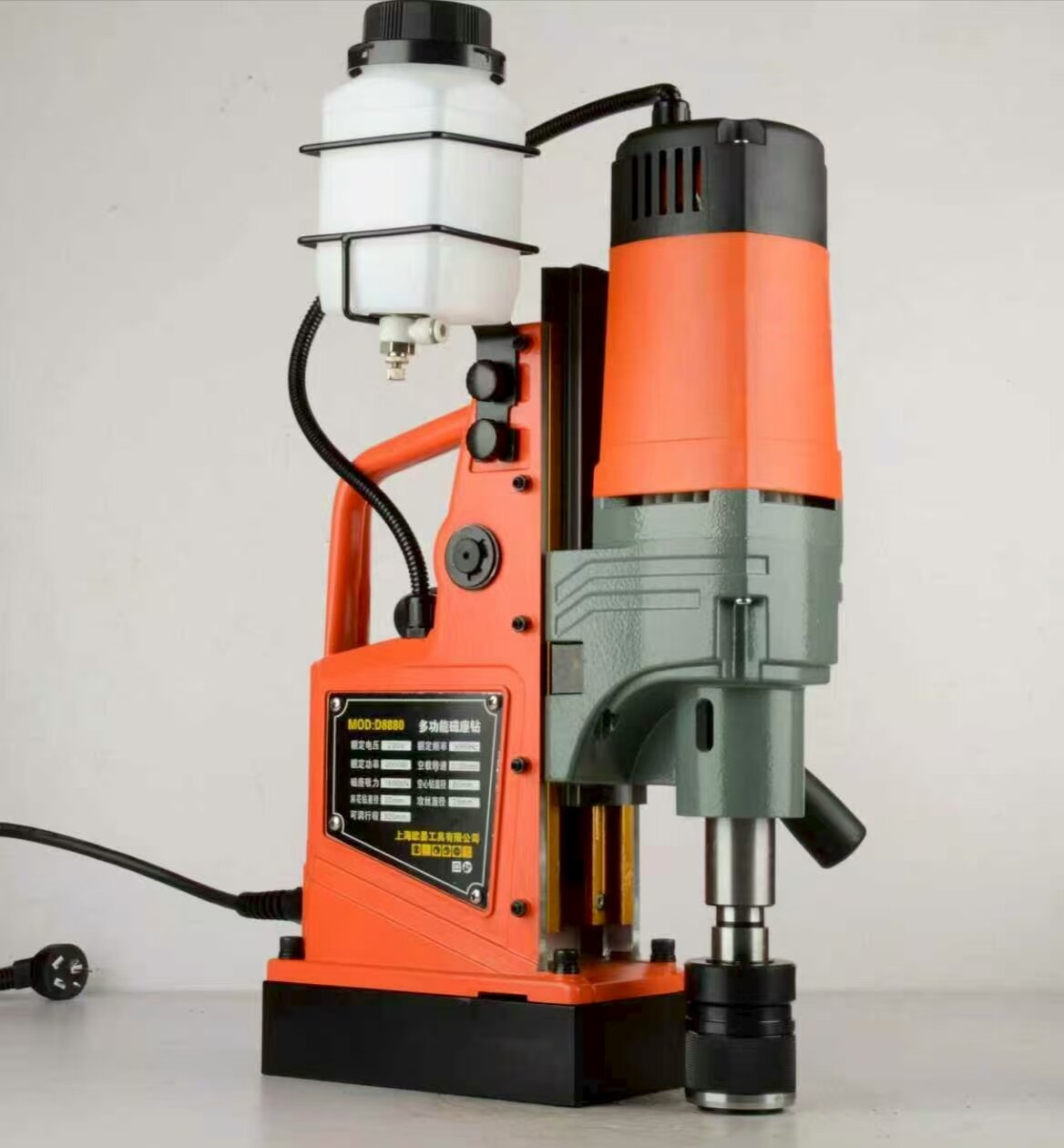

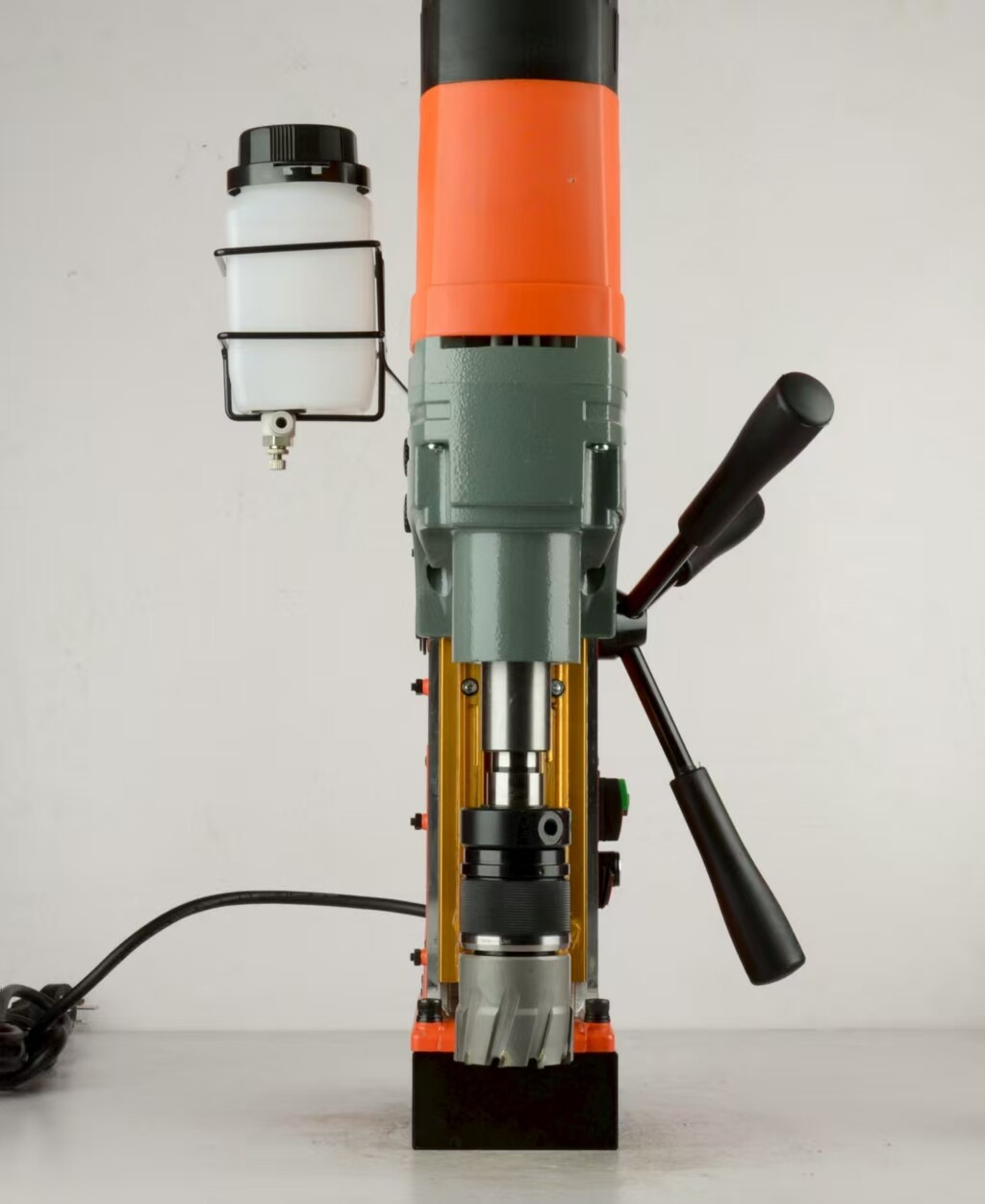

The D8880Z is a multifunctional magnetic drill capable of twist drilling, core drilling, and tapping. It features quick-access core drill bits and special functions such as hole reaming, half-hole drilling, and beveled hole drilling.

- PRODUCT PARAMETERS -

The D8880Z is a multifunctional magnetic drill capable of twist drilling, core drilling, and tapping. It features quick-access core drill bits and special functions such as hole reaming, half-hole drilling, and beveled hole drilling.


Ouyan's magnetic drill boasts ultra-thin magnets with exceptional suction, compact size, and high power, allowing for a wide drilling range. It also offers simple operation, accurate positioning, portability, high productivity, and wide application in various industries.


This product is widely applicable to complex structures, the fabrication and installation of large steel structures, shipbuilding and maintenance, bridges, railways, oilfield development, power plants, machinery manufacturing, gas pipelines, and environmental protection projects. This drill is the ideal tool for the drilling industry!


ModelVDD50ZVDD80Z
Hollow Drill Diameter50mm80mm
Rated Voltage220v220v
Rated Frequency50/60Hz50/60Hz
Rated Power1600W2000W
No-Load Speed0-600r/min0-350r/min
Magnetic Holder13000N16000N
Stroke120mm225mm
Adjustable Stroke220mm320mm
Twist Drill Diameter16mm32mm
Tapping Diameter16mm19Kg
Net Weight11.5Kg130x330x450mm
Dimensions100x270x350mm25mm
