VD338
10001

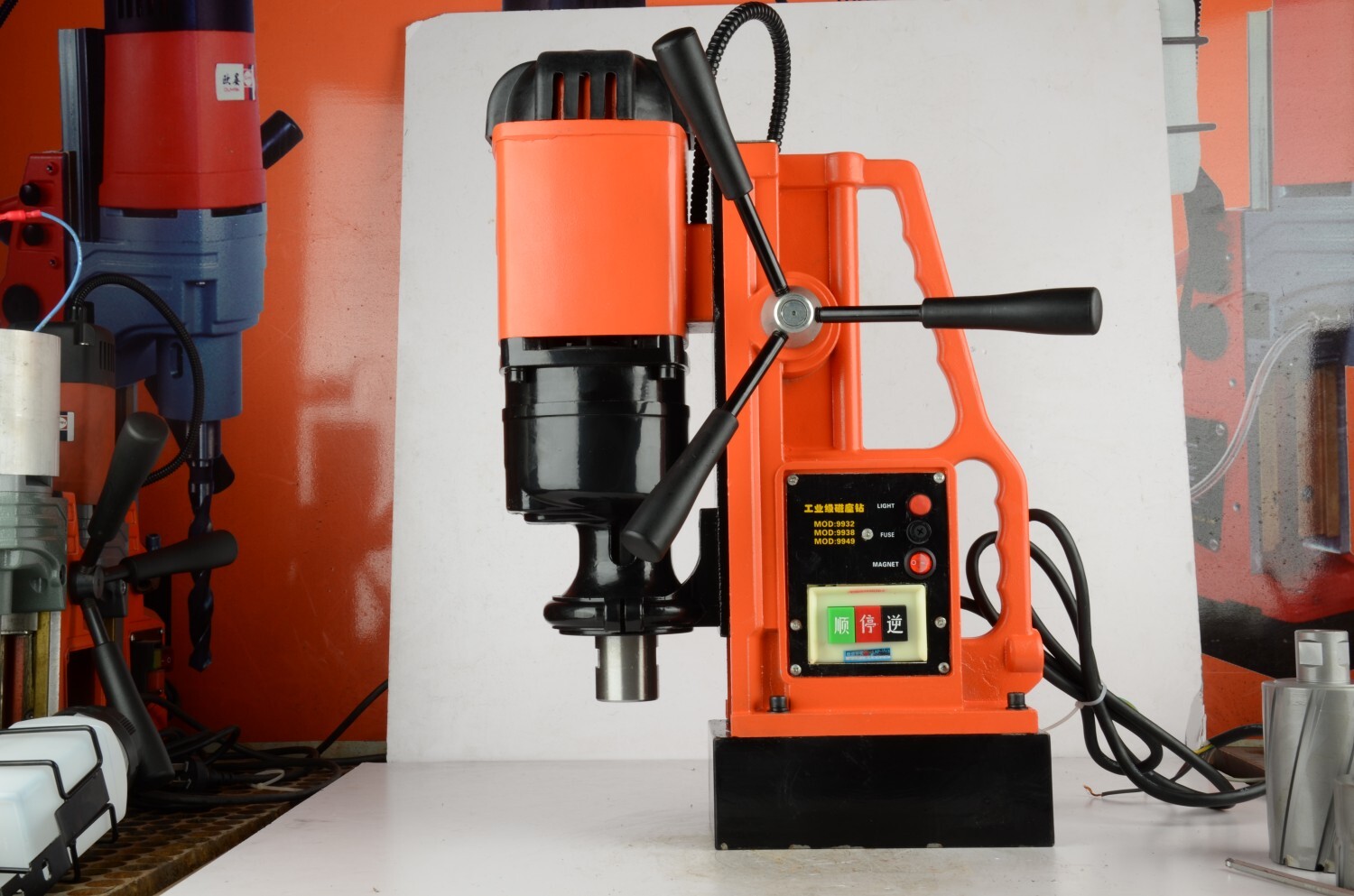

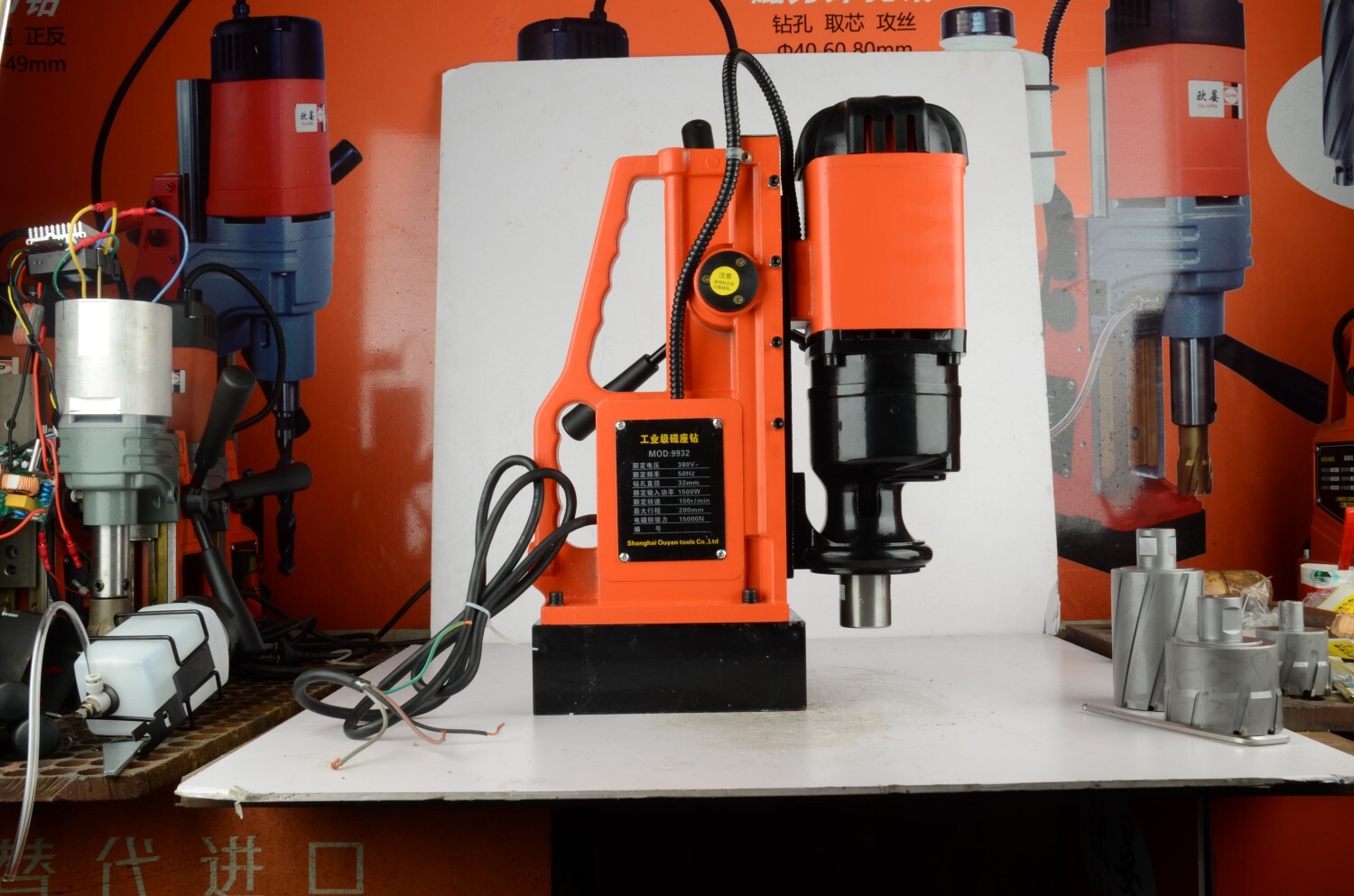

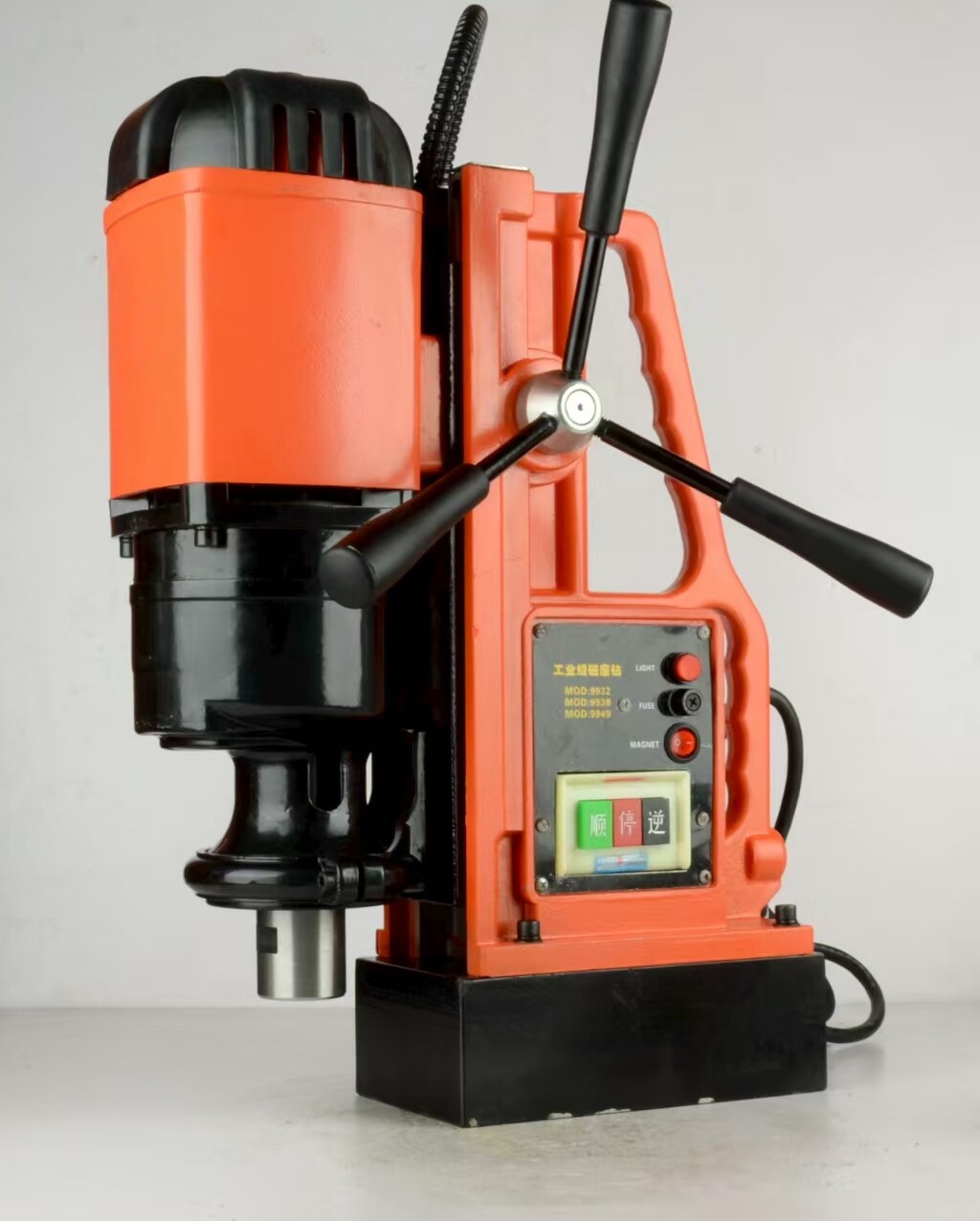

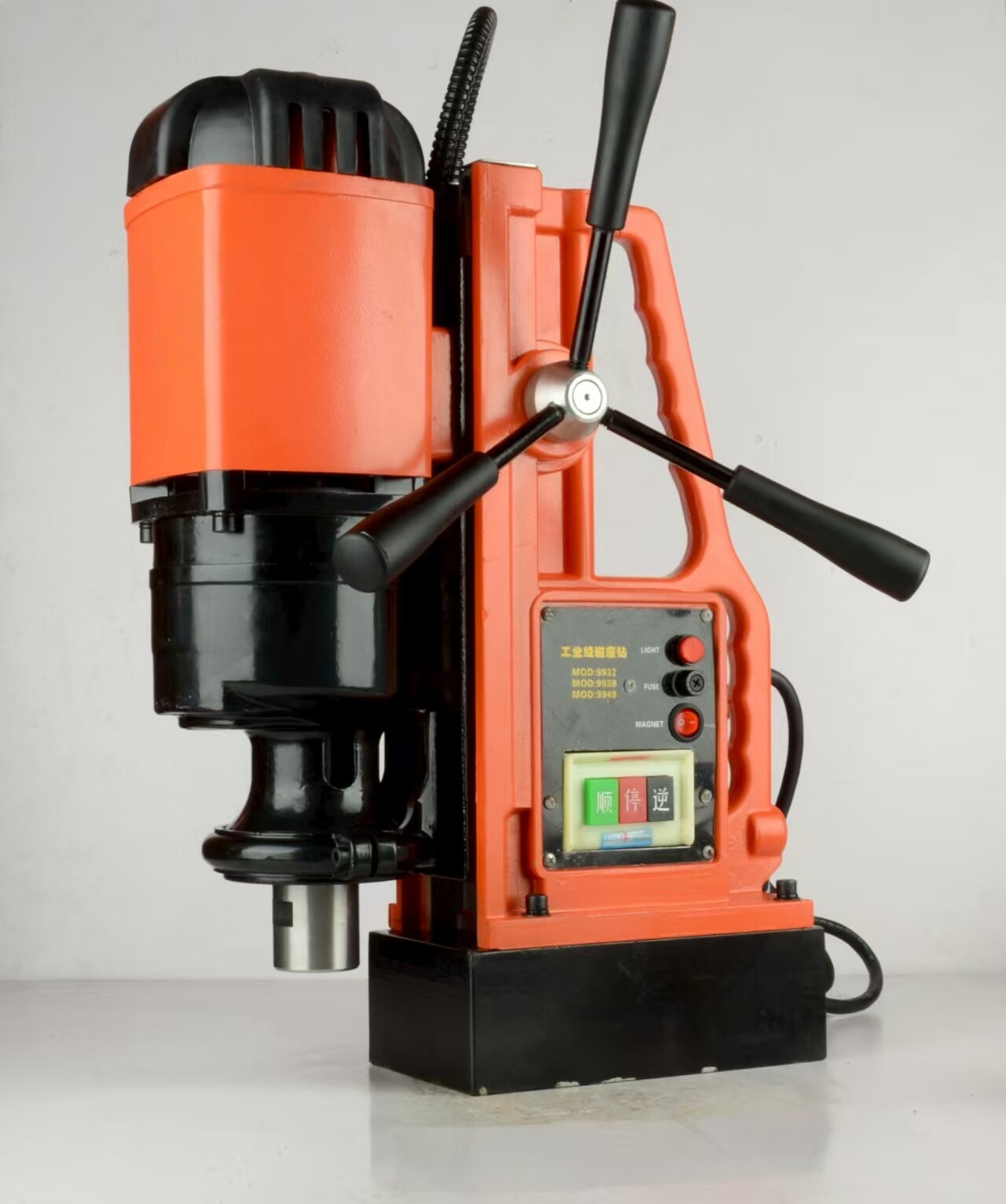

The VD338 magnetic drill offers 38mm max drilling diameter with 1800W power. Features 16000N suction force, 220mm stroke & 50/60Hz frequency for industrial applications.
WhatsApp ：+86 173 5340 5464
Email ：admin@sdvedon.com

- PRODUCT PARAMETERS -

ModelVD332VD338VD349
Maximum Drilling Diameter32mm38mm49mm
Rated Voltage380v380v380v
Rated Frequency50/60Hz50/60Hz50/60Hz
Rated Power1500W1800W2000W
No-Load Speed150r/min120r/min110r/min
Magnetic Base Suction Force15000N16000N18000N
Stroke220mm220mm220mm
Adjustable Stroke220mm220mm220mm
Net Weight45Kg46Kg47Kg
Magnetic Base Dimensions240x125x80mm240x125x80mm240x125x80mm
Tapping Diameter25mm28mm30mm
External Dimensions130x390x520mm130x390x520mm130x390x520mm
