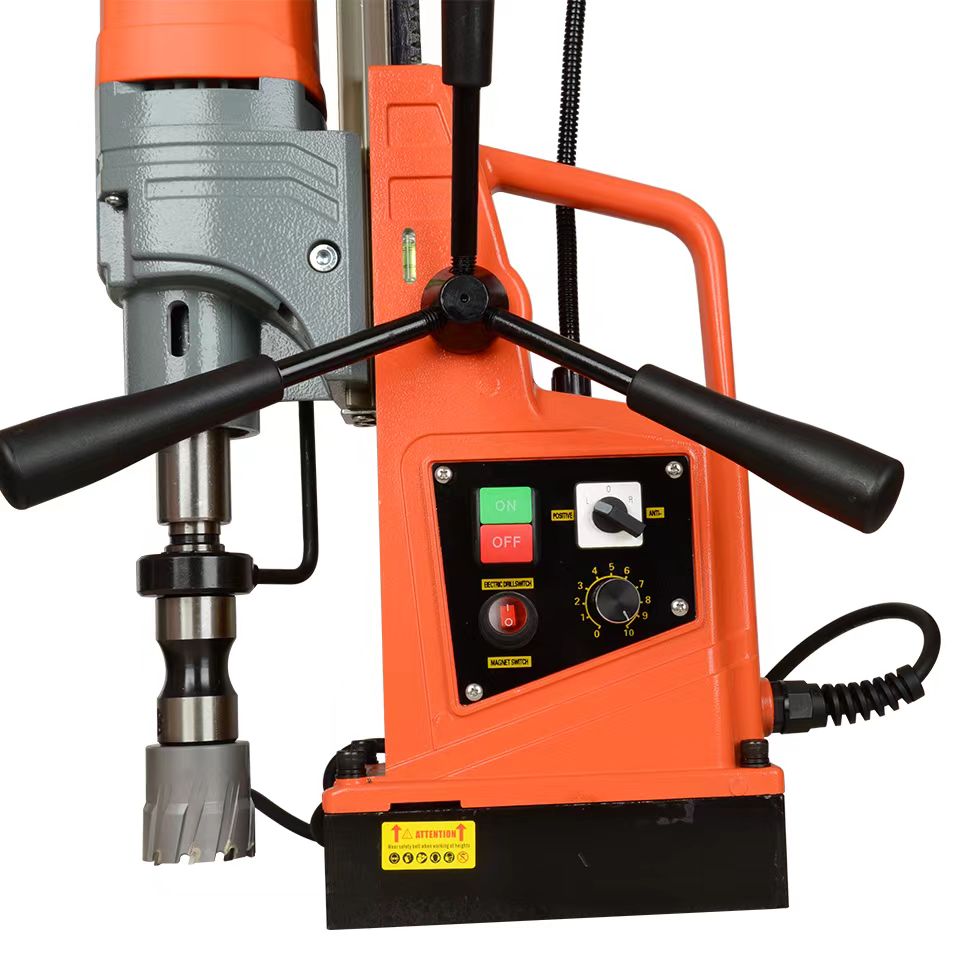

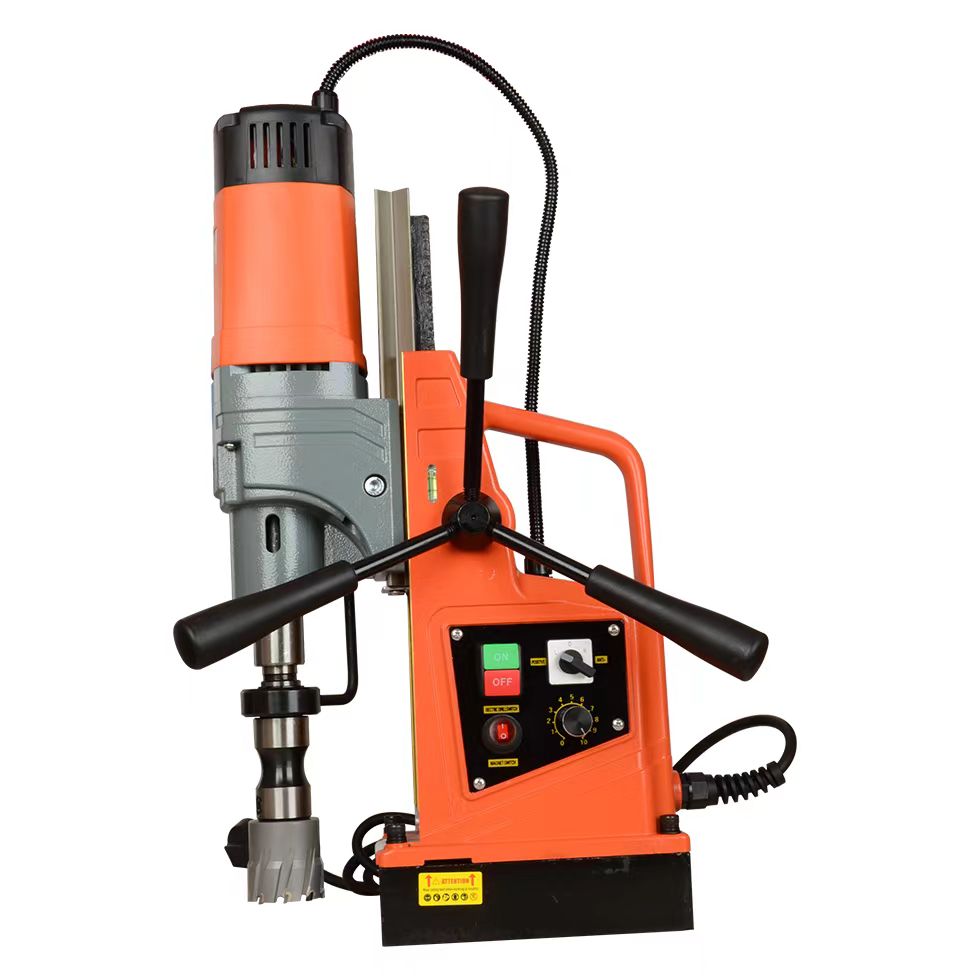

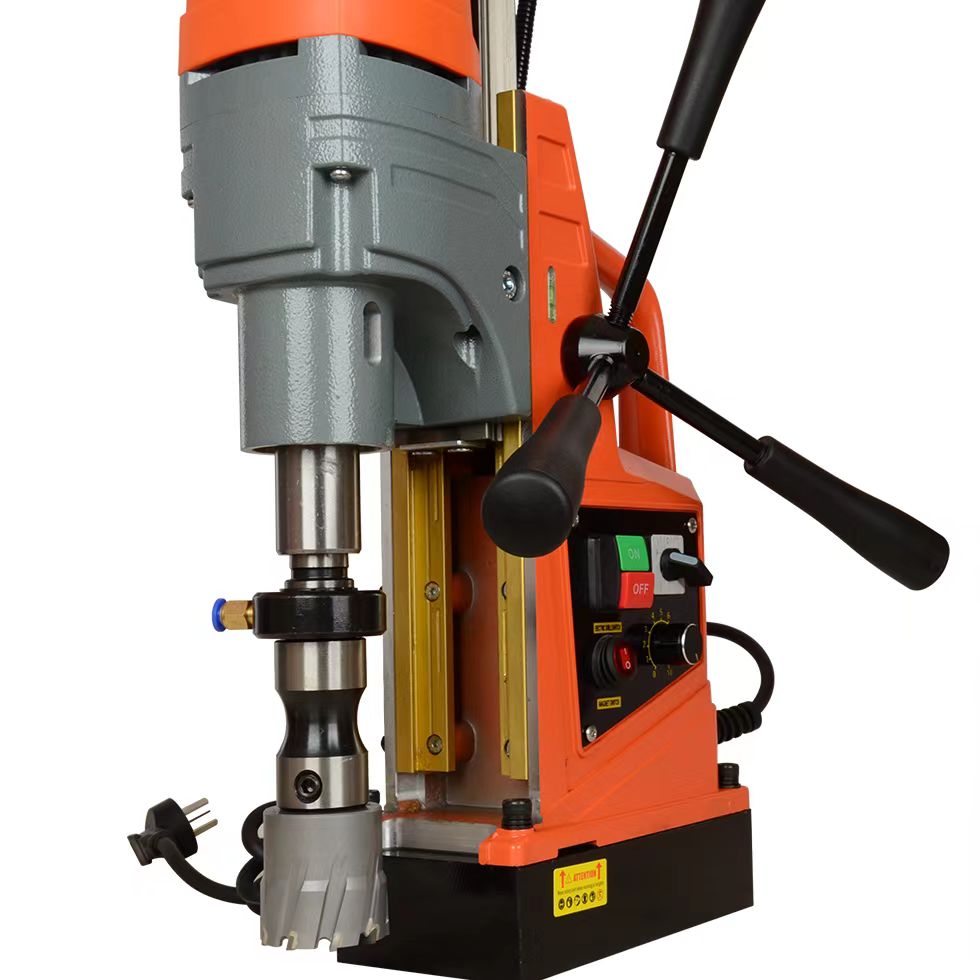

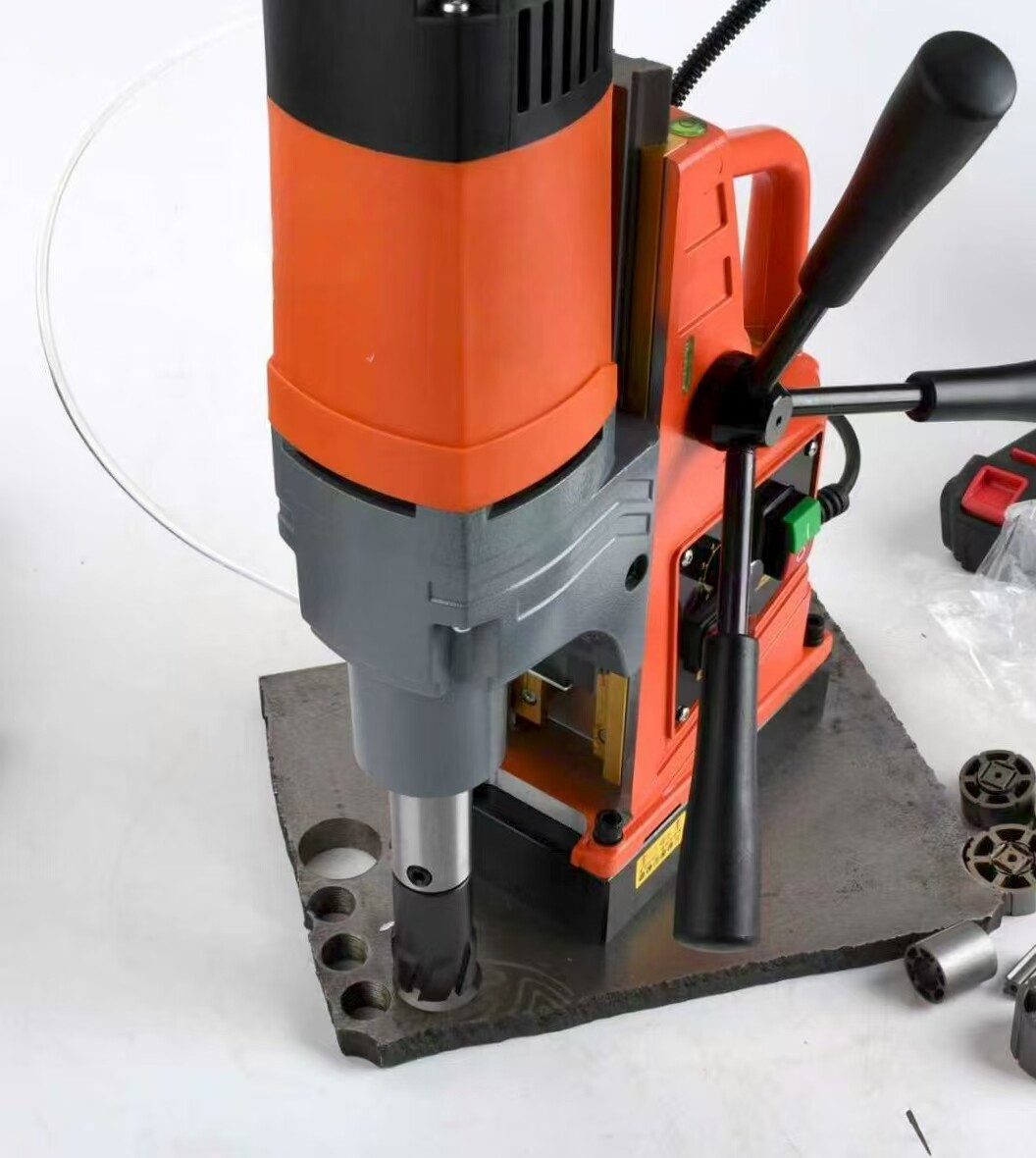

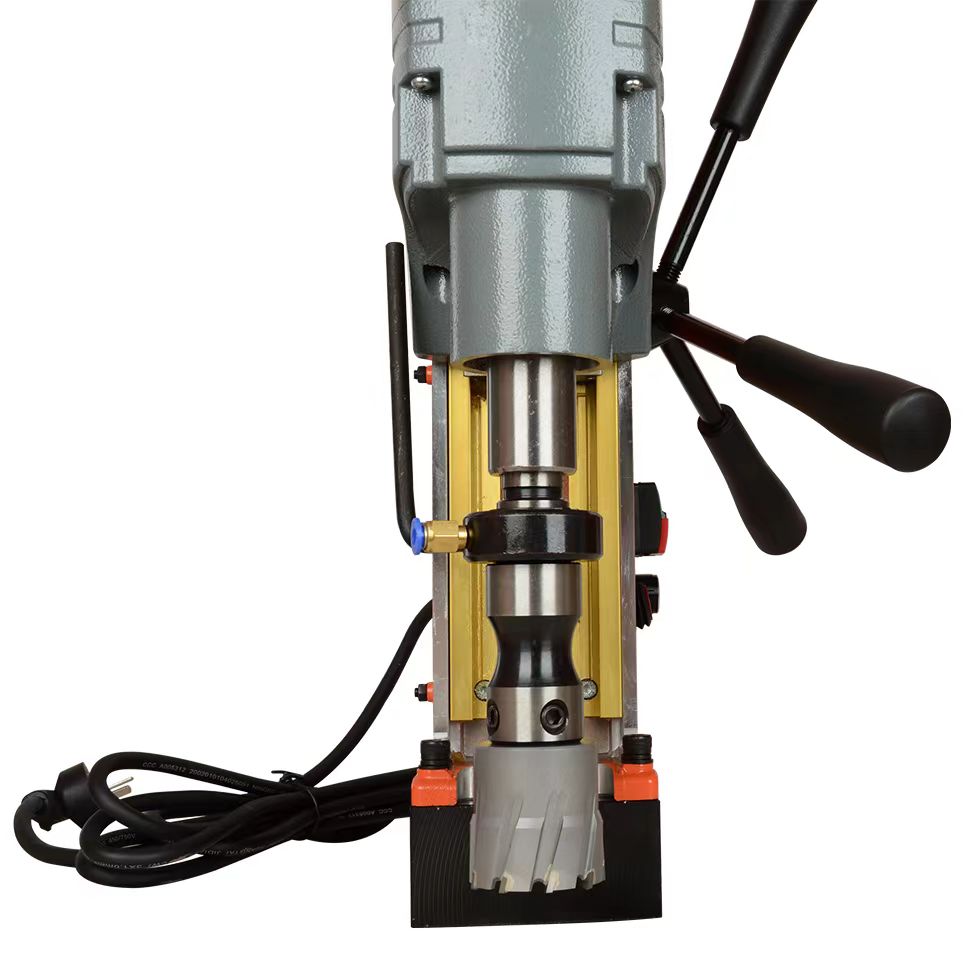

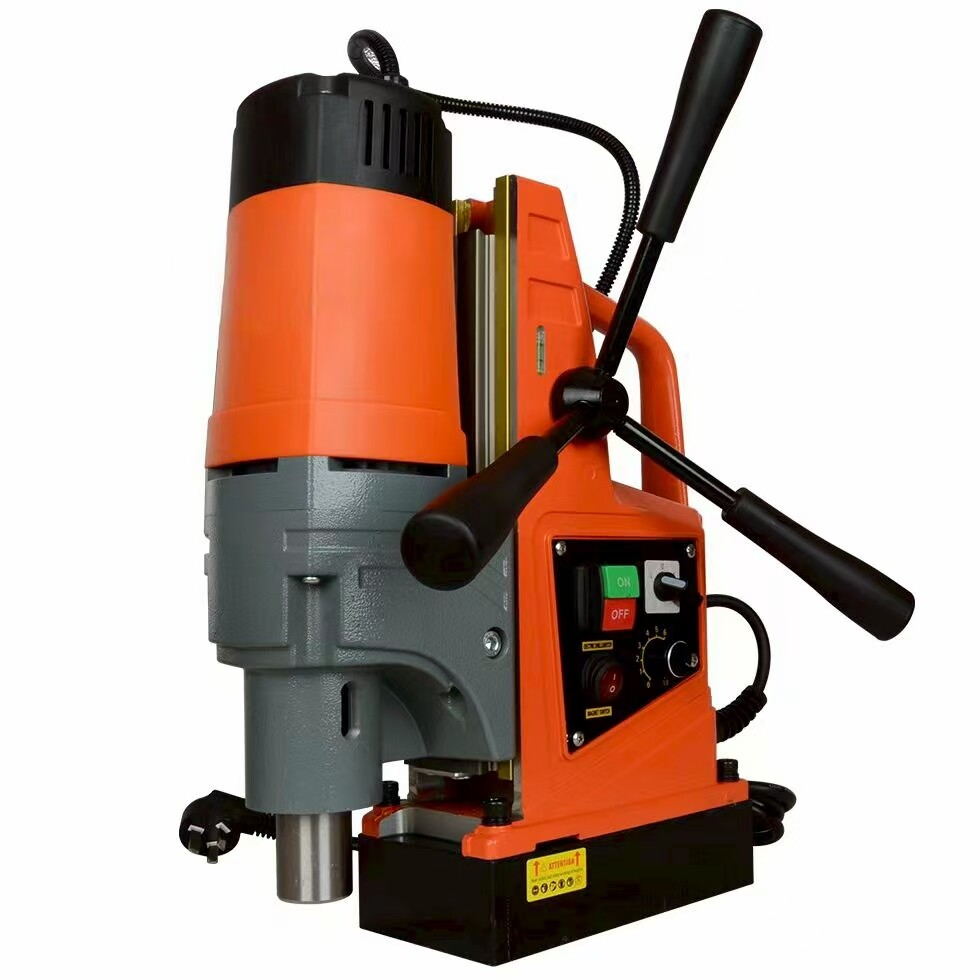

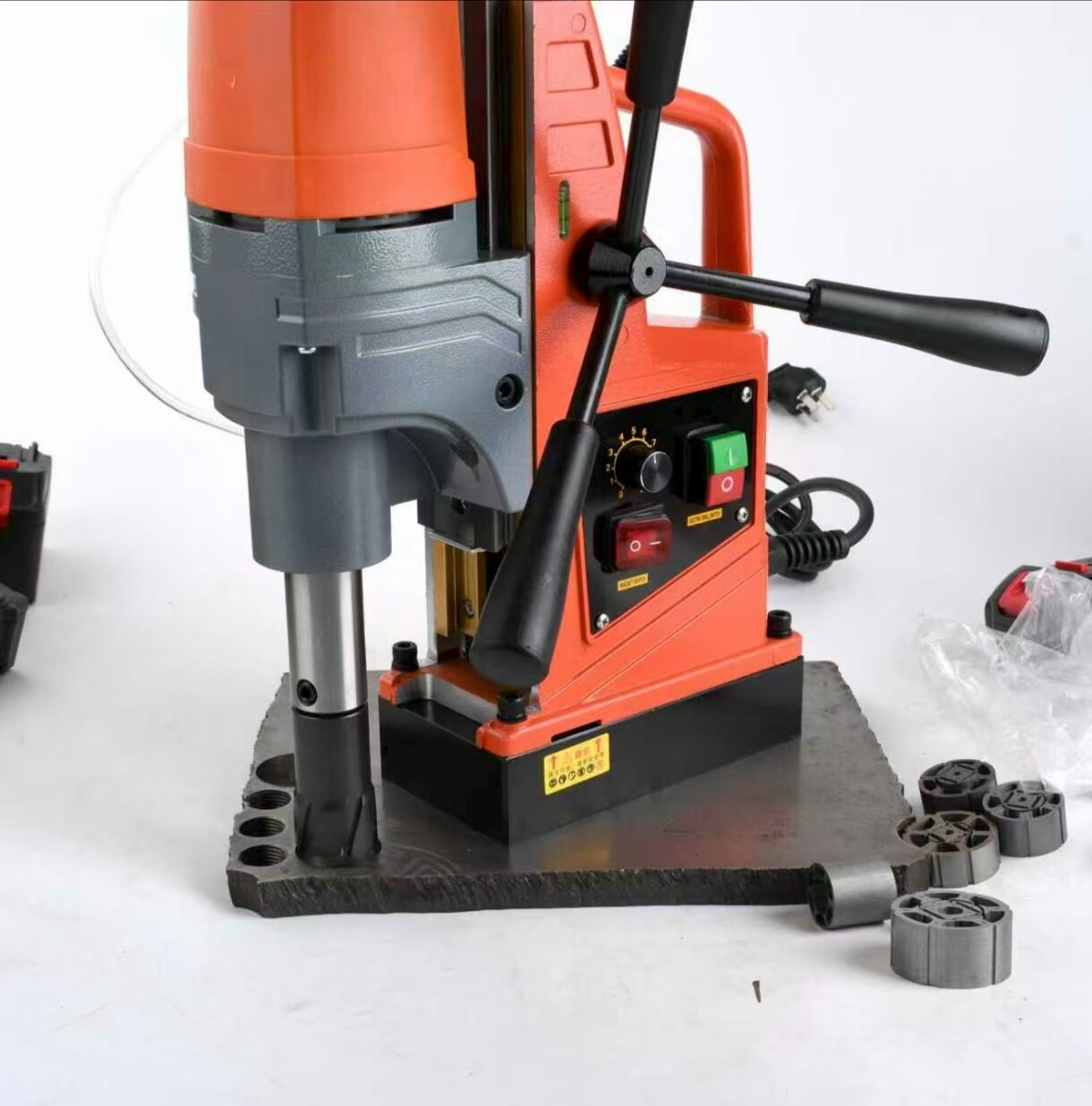

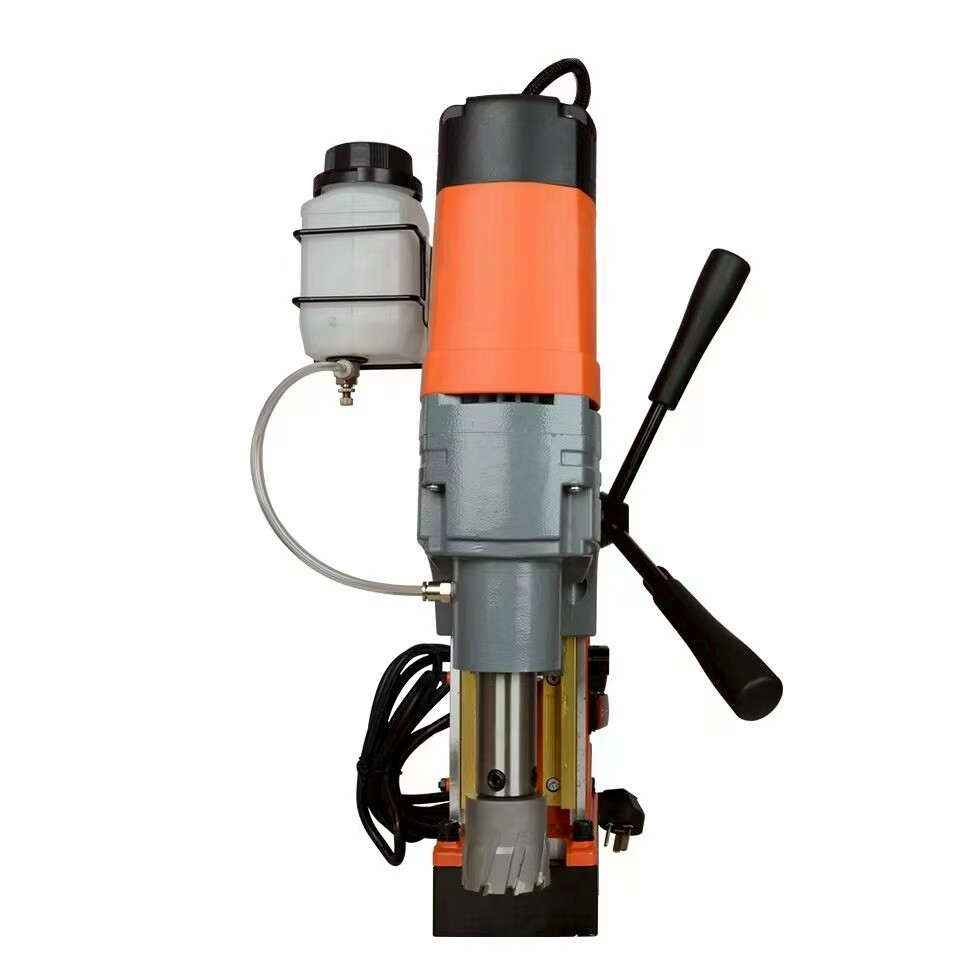

VDD50
10001
VDD50 magnetic drill offers 50mm max drilling diameter with 13000N suction force. Features 220V power, 0-600r/min speed & 120mm stroke. Ideal for industrial applications.
WhatsApp ：+86 173 5340 5464
Email ：admin@sdvedon.com

- PRODUCT PARAMETERS -

modelVDD40VDD50VDD60VDD80
Maximum drilling diameter40mm50mm60mm80mm
Rated voltage220v220v220v220v
Rated frequency50/60Hz50/60Hz50/60Hz50/60Hz
Rated power1500W1500W1800W2000W
No-load speed0~650r/min0-600r/min0-450r/min0-350r/min
Magnetic base suction force12000N13000N15000N16000N
Stroke120mm120mm225mm225mm
Adjustable stroke230mm220mm320mm320mm
Core drill diameter40mm-60mm80mm
Net weight11Kg11.5Kg18Kg19Kg
Overall dimensions100x270x350mm100x270x350mm130x330x450mm130x330x450mm
Tapping diameter14mm16mm22mm25mm
