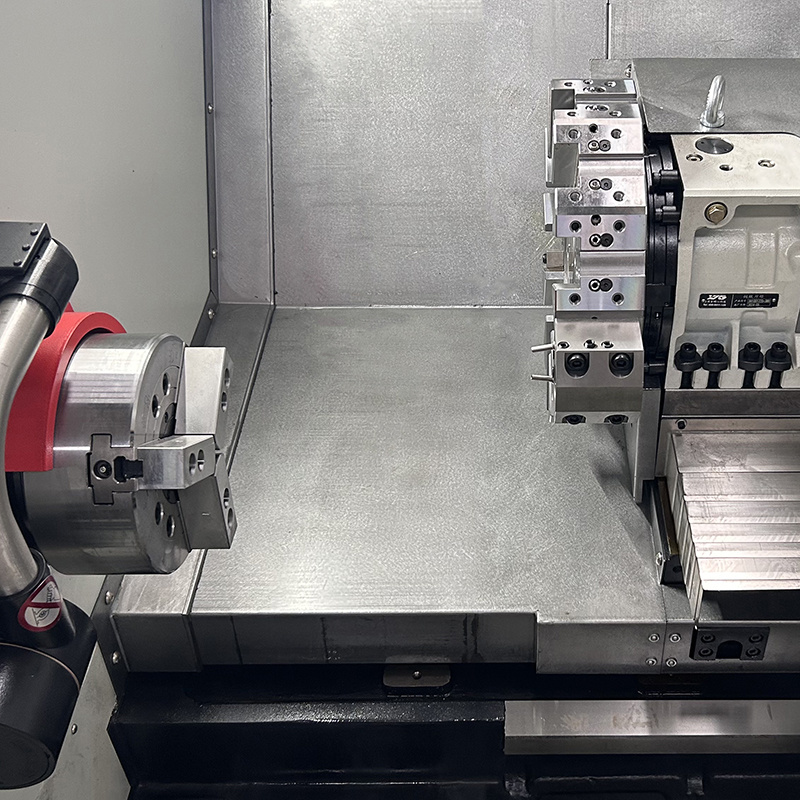

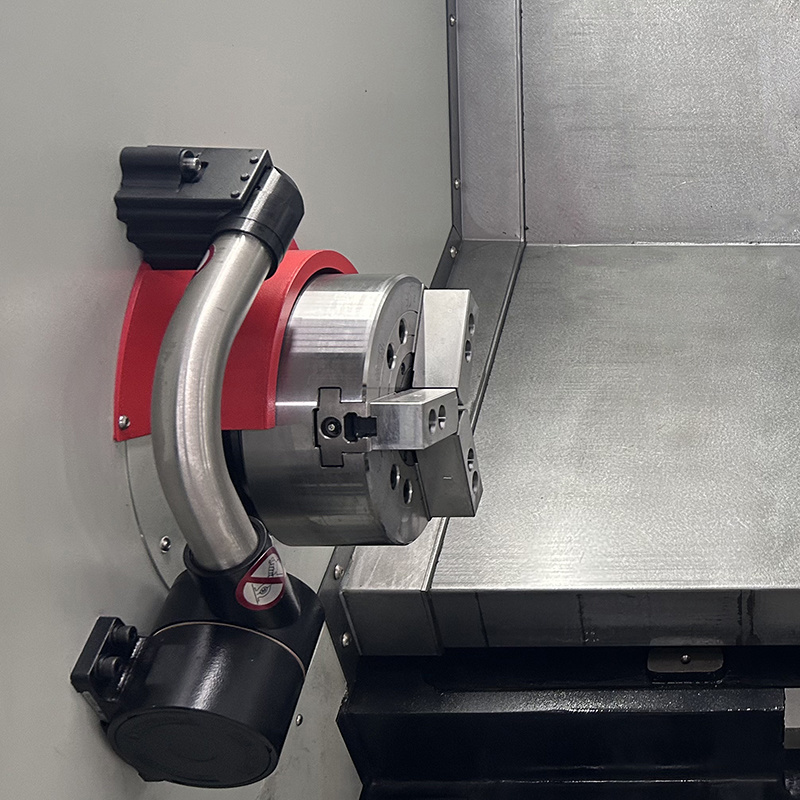

TCK52
10001
With digital control at its core, it breaks through the operational limitations of traditional lathes, transforming complex processes into precise instructions and providing efficient, stable, and consistent machining solutions. The spindle utilizes high-precision bearings for strong vibration resistance, maintaining stable accuracy even during long-term high-speed operation. The bed is constructed from a single piece of cast iron, treated with aging to eliminate internal stress, resulting in minimal deformation and ensuring long-term machining stability.

- PRODUCT PARAMETERS -

With digital control at its core, it breaks through the operational limitations of traditional lathes, transforming complex processes into precise instructions and providing efficient, stable, and consistent machining solutions. The spindle utilizes high-precision bearings for strong vibration resistance, maintaining stable accuracy even during long-term high-speed operation. The bed is constructed from a single piece of cast iron, treated with aging to eliminate internal stress, resulting in minimal deformation and ensuring long-term machining stability.


ProjectUnitTCK52-600
Rotation diameter on the bed surfacemmΦ520
Maximum turning diameter on skateboardmmΦ300
Machining lengthmm600
Main motor powerKW7.5
Spindle speedrpm2500
Spindle hole diametermmΦ80
X-axis strokemm200
X-axis motor torqueNM8
Z-axis travelmm600
Z-axis motor torqueNM12
X- Z-axis connection method
Direct connection
Maximum spindle speedrpm3000
Main shaft speed series
Infinitely variable speed
Main spindle end form and code
A2-8
Inner diameter of spindle through-holemmΦ80
Inner diameter of spindle pull tubemmΦ56
Standard chuck specificationsinch8*
Fast moving speedm/min20

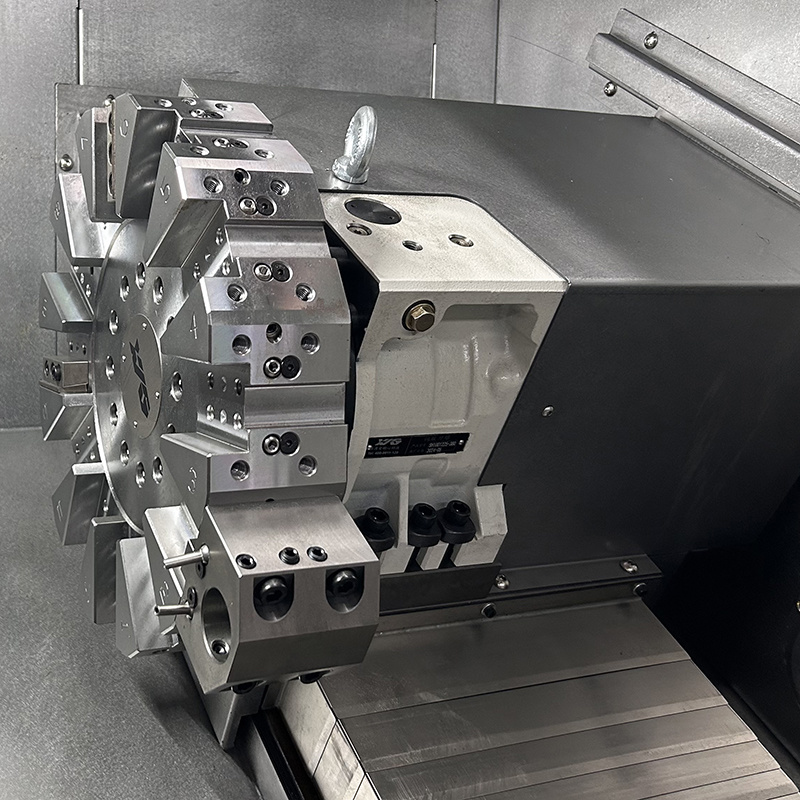

Knife holder form
Horizontal 8-station hydraulic turret
X/Z bidirectional positioning accuracymm±0.008
X/Z unidirectional repetitive positioning accuracymm±0.004
Quill diametermm70
Sleeve travelmm100
Tail seat travelmm450
