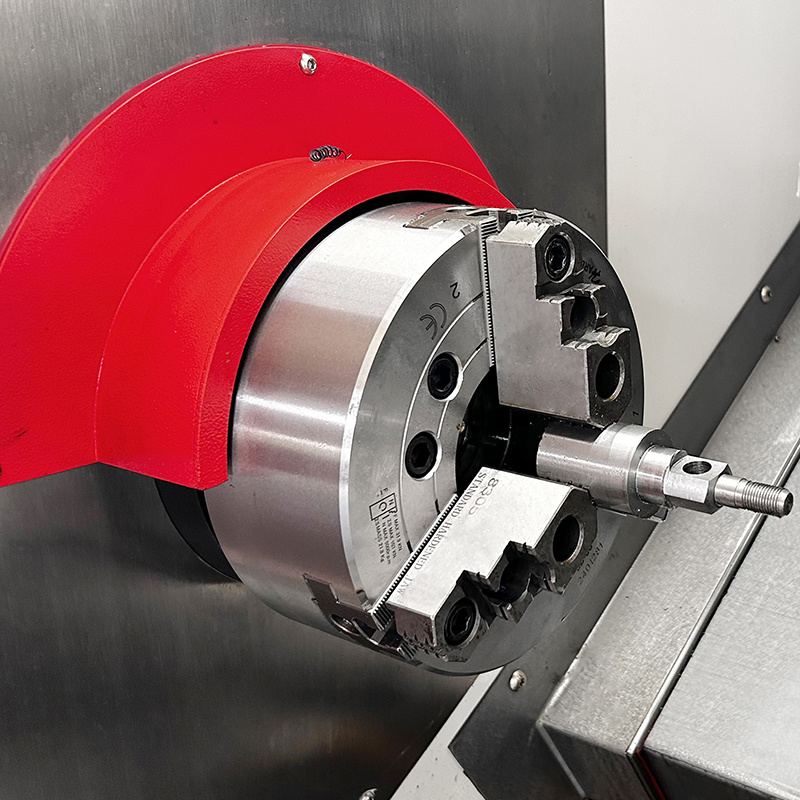

TCK52D
10001
With digital control at its core, it breaks through the operational limitations of traditional lathes, transforming complex processes into precise instructions and providing efficient, stable, and consistent machining solutions. The spindle utilizes high-precision bearings for strong vibration resistance, maintaining stable accuracy even during long-term high-speed operation. The bed is constructed from a single piece of cast iron, treated with aging to eliminate internal stress, resulting in minimal deformation and ensuring long-term machining stability.

- PRODUCT PARAMETERS -

With digital control at its core, it breaks through the operational limitations of traditional lathes, transforming complex processes into precise instructions and providing efficient, stable, and consistent machining solutions. The spindle utilizes high-precision bearings for strong vibration resistance, maintaining stable accuracy even during long-term high-speed operation. The bed is constructed from a single piece of cast iron, treated with aging to eliminate internal stress, resulting in minimal deformation and ensuring long-term machining stability.


ModelTCK52D
technical specificationsunitparameter
machine rangeSwing over bedmmΦ650
Maximum rotation diameter on the saddle of the bedmmΦ400
Maximum processing lengthmmΦ480
Maximum machining diametermmΦ400
center distancemm600
SpindleSpindle head typemmA2-6
spindle boremm66
Rod diameter52
Maximum spindle speedr/min4000
Rated output of main motorKw15/18.5
clamphydraulic chuckinch8
tailstockTailstock sleeve/MT5
Tailstock movement type/Sliding board driven
Quill diametermm80
Tailstock travelmm490
Tailstock guideway type/hardened guideway
Bed saddleTilt angledegree30
Moving distance Xmm260
Moving distance Zmm610



Fast moving speed X/Zm/min30/30
Servo motor X/ZKW2.5/2.5

Turret diametermmKnife disc diameter 380
Adjacent tool change time$0.5
Number of knife positions/12 workstations
Turret typePower turretBMT55 - 12-station live tooling
