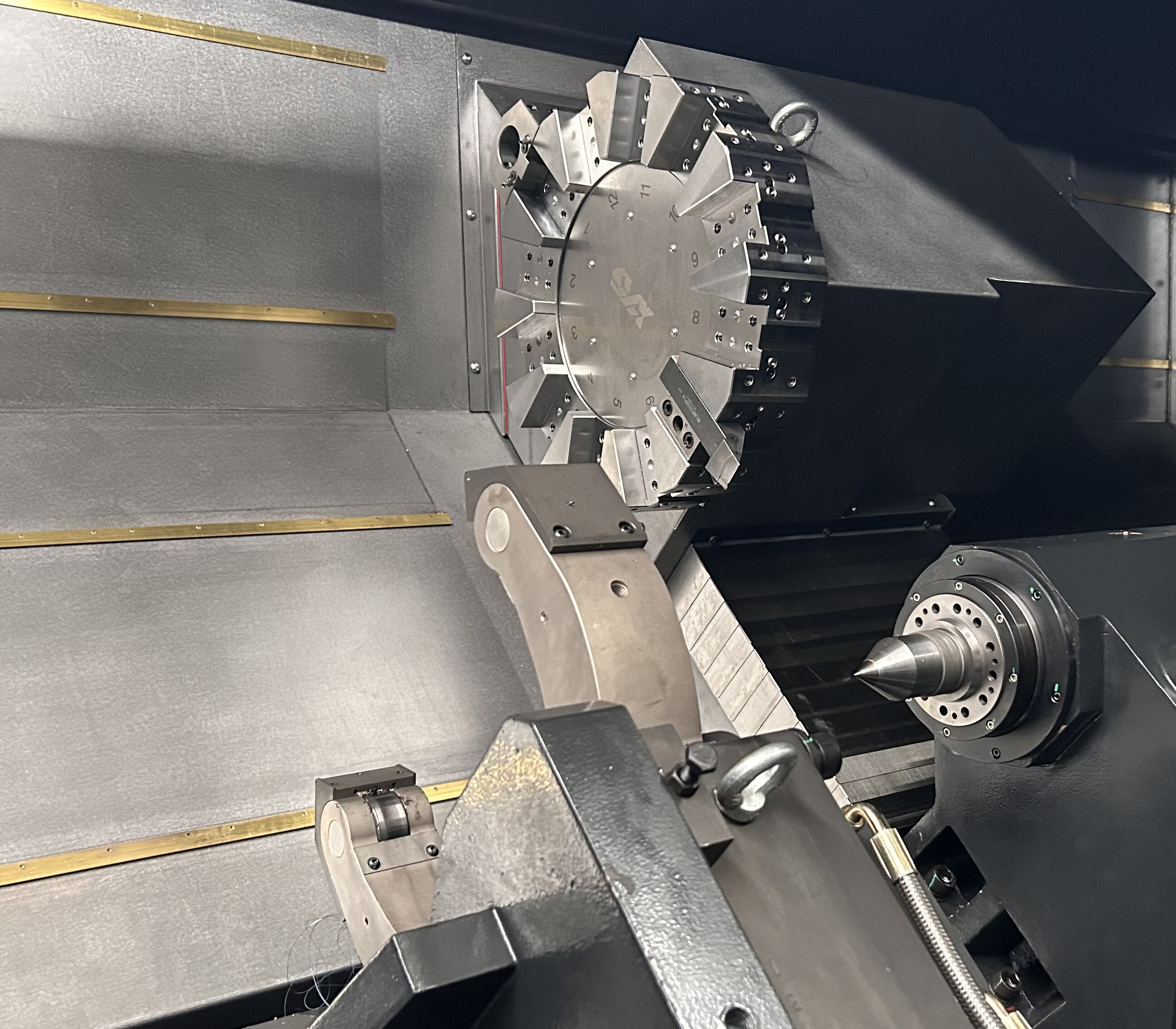

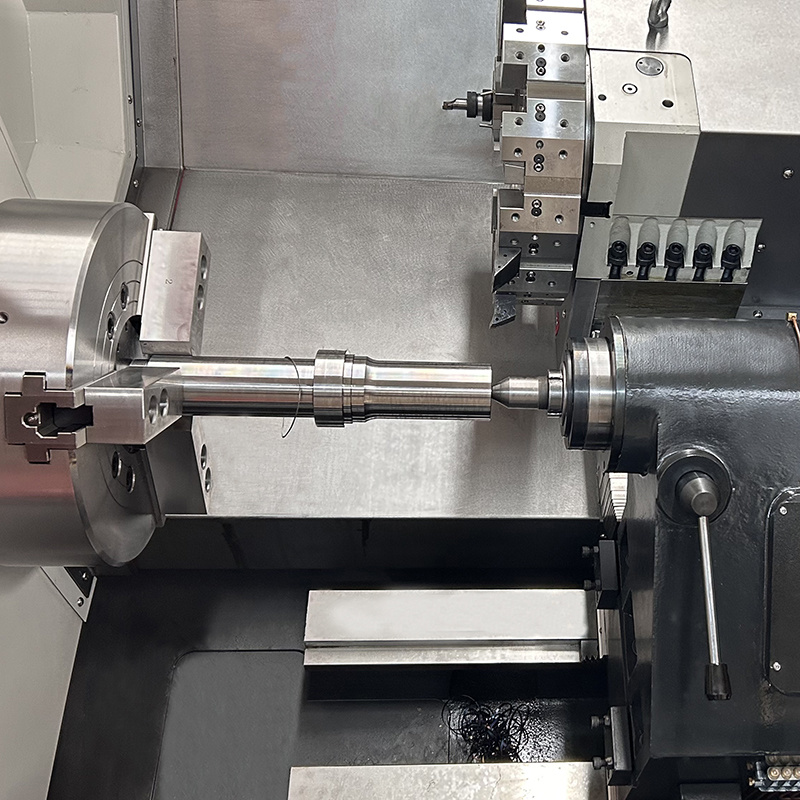

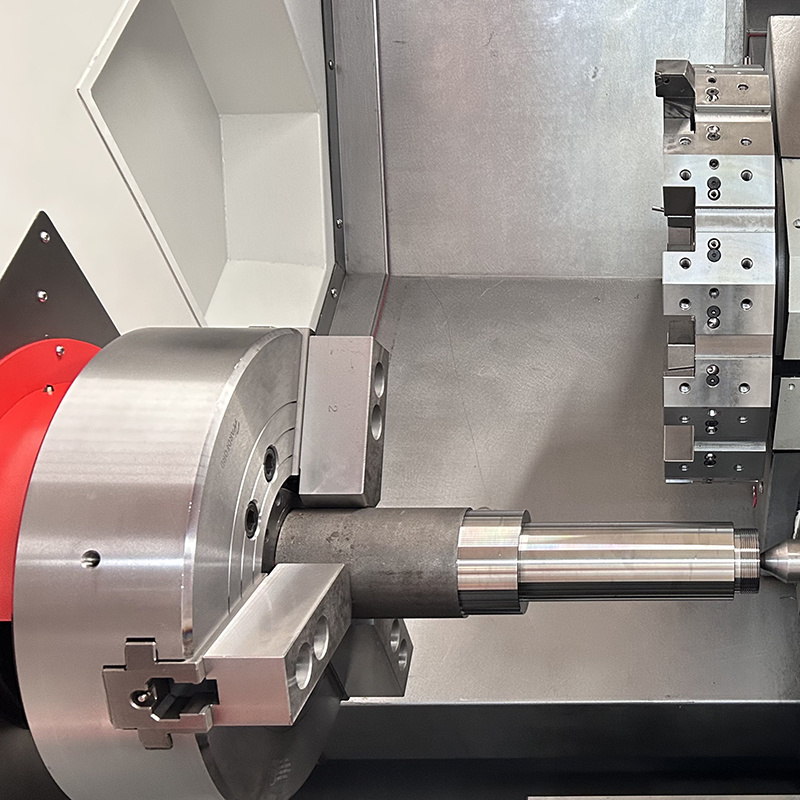

TCK700
10001
With digital control at its core, it breaks through the operational limitations of traditional lathes, transforming complex processes into precise instructions and providing efficient, stable, and consistent machining solutions. The spindle utilizes high-precision bearings for strong vibration resistance, maintaining stable accuracy even during long-term high-speed operation. The bed is constructed from a single piece of cast iron, treated with aging to eliminate internal stress, resulting in minimal deformation and ensuring long-term machining stability.

- PRODUCT PARAMETERS -

With digital control at its core, it breaks through the operational limitations of traditional lathes, transforming complex processes into precise instructions and providing efficient, stable, and consistent machining solutions. The spindle utilizes high-precision bearings for strong vibration resistance, maintaining stable accuracy even during long-term high-speed operation. The bed is constructed from a single piece of cast iron, treated with aging to eliminate internal stress, resulting in minimal deformation and ensuring long-term machining stability.


Technical ParametersunitTCK700
Processing RangeThe maximum turning diameter on the bedmmΦ780
The maximum swing diameter over the saddlemmΦ500
Recommended turning diametermmΦ650
center distancemm1100
SpindleSpindle head typemmA2-11
Spindle through-hole diametermm105
Bar stock diametersmm92
Highest spindle speedr/min2500
rated output power of the main motorKw22-30
maximum output torque of the spindleNM573NM
Fixturehydraulic chuckin15
Tailstocktailstock sleevemmMT5 internal rotation
tailstock movement type/hydraulic programmable fully automatic
saddletilt angleDEG45 °
travel distance Xmm350+20
workpiece length clamped by chuckmm4900
rapid traverse speed X/Zm/min16/24
servo motor X/ZKW3/3
tool turrettypeservo hydraulicBMT65 horizontal 12 station
adjacent tool changing timeS0.5
tool capacity/12 station
tool dimensions (turning/boring)mm32×32/Φ32(40)
spring collet chuck model/ER40
power turret powerKW5.5-7.5
machine dimension X10004500X2300X2550mmnet weight/gross weight7000/7500KG
machine dimension X15006000X2300X2550mmnet weight/gross weight8800/9500KG
machine dimension X20006500X2300X2550mmnet weight/gross weight9800/10500KG
machine dimension X30007500X2300X2550mmnet weight/gross weight12500/13300KG
machine dimension X40008500X2300X2550mmnet weight/gross weight14800/15800KG
machine dimension X40009800X2300X2550mmnet weight/gross weight16800/17800KG


inspection itemspermitted tolerance(mm)
periodic axial movement of the spindle0.005
radial runout of the spindle chuck locating taper0.005
positioning accuracyrepeat positioning accuracy AX±0.004 Z±0.005
positioning accuracy BX:0.008 Z:0.011
C-axis repeat positioning accuracy0.0027°
diameter consistency0.01/150
surface flatness0.013/φ200
thread pitch cumulative error0.010/50
surface roughnessRa1.6μm
