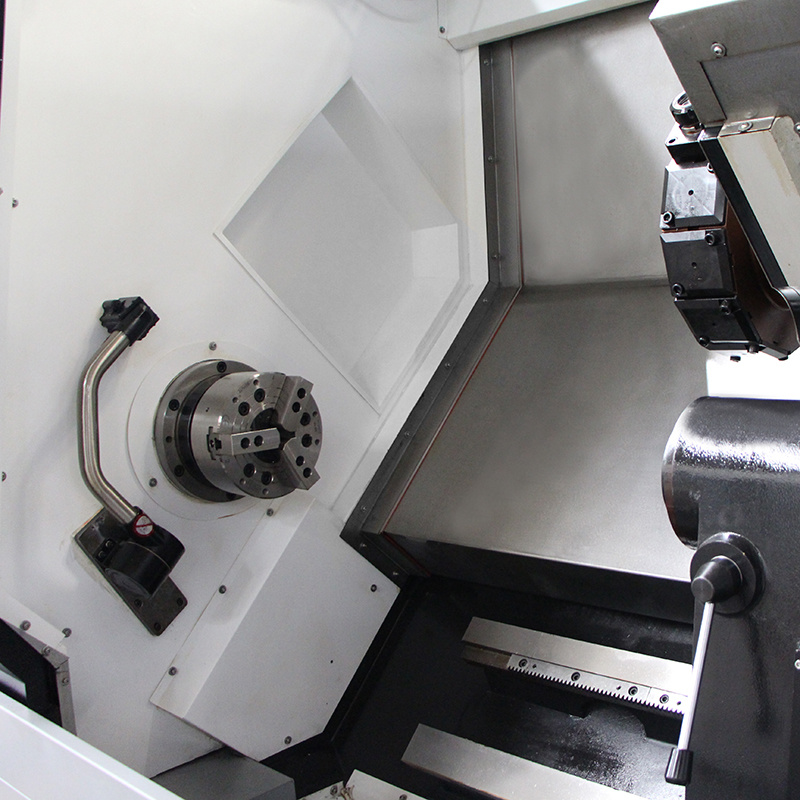

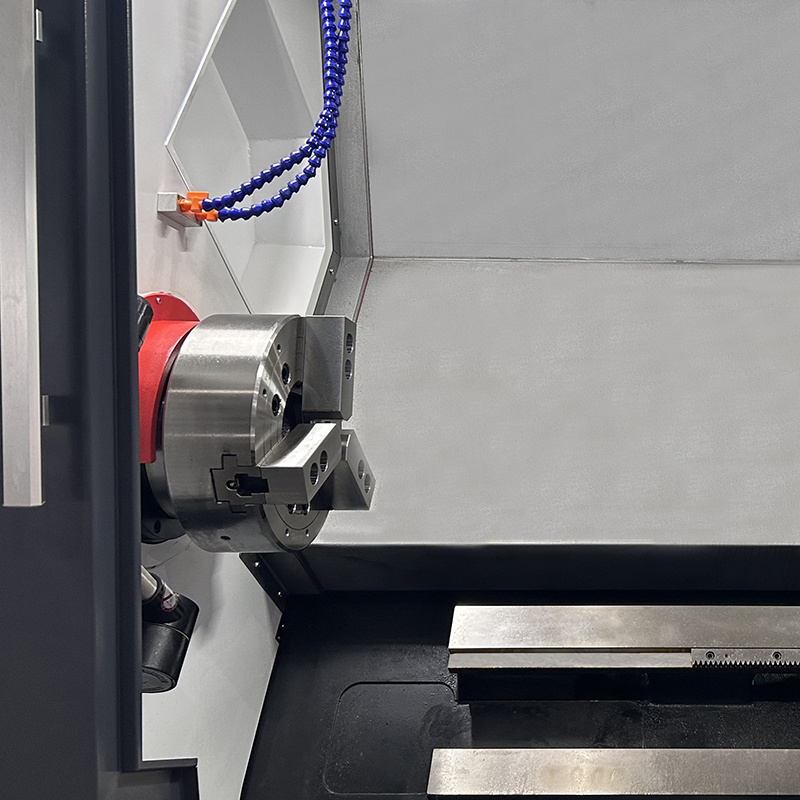

With digital control at its core, it breaks through the operational limitations of traditional lathes, transforming complex processes into precise instructions and providing efficient, stable, and consistent machining solutions. The spindle utilizes high-precision bearings for strong vibration resistance, maintaining stable accuracy even during long-term high-speed operation. The bed is constructed from a single piece of cast iron, treated with aging to eliminate internal stress, resulting in minimal deformation and ensuring long-term machining stability.
Model NO. D-Power tool tower DY-Y-axis power tower | TCK50DY | TCK50CY 4+4 | TCK50LD | TCK52 | TCK52DYS Double direct drive motorized spindle | TCK600 | TCK700 D-Power tool tower | TCK800 |
|
|
| Stand CNC controller | SYNTEC 22T | SYNTEC 22TB | SYNTEC 22TA | SYNTEC 22T | SYNTEC 22TB | SYNTEC 22T | SYNTEC 22T | SYNTEC 22T |
|
|
| Distance between centers | NO tailstock | 550 | 600 | 800 | 900 | 1100/1500 | 1100 | 1600 | 2100 | 3100 | 1100 | 1600 | 2100 | 3100 |
| Max. swing over bed(mm) | 510 | 520 | 650 | 650 | 630 | 780 | 900 |
|
Max. swing over cross slide(mm) | 180 | 280 | 400 | 400 | 450 | 500 | 630 |
|
Maximum machining diameter(mm) | / | / | / | φ470 | / | φ600 | φ680 | / |
|
| Linear guide rail width | 35/35 | 35/35 | 45/45 | 45/45 | 45/45 | 55/55 | 55/55 |
|
| Ball screw dimeter/pitch | 3210/3210 | 4010 | 3210/4010 | 3210/4010 | 4010/4010 | 5008/6312 | 5008/6312 |
|
| Bed Tilt angle | 30 | 30 | 30 | 30 | 45 | 45 | 45 |
|
| Spindle nose | A2-5 | A2-6 | Main A2-6 | Sub A2-5 | A2-8 | A2-11 | A2-11 |
|
| Max Spindle speed | 5000 | 4200/3500 | 4000 | 5500 | 3000 | option:2500 | 1800/2000 | 1500/2000 |
| Spindle bore | 56 | 66 | 66/79 | 66/79 | 52 | 86 | option:105 | 132/105 | 132/105 |
| Bar capacity | 46 | 52 | 52/65 | 52/65 | 45 | 74 | option:92 | 115/91 | 115/91 |
| Chuck diameter (inck) | 6 | 8" 10" | 8 | 6 | 10 | option:12 | 15/12 | 15/12 |
| X axis travel | 1100 | 210 | 260 | 260 | 310 | 350 | 350 |
| Z axis travel | 500 | 550 | 610 | 830 | 830 | 1100 | 1600 | 1000 | 1500 | 2000 | 3000 | 1000 | 1500 | 2000 | 3000 |
| Y axis travel | ±35 | 220 | / | ±45 | ±50 | ±50 | ±75 | ±75 |
Distance between chuck and center | / | / | 400 | 450 | 680 | 690 | 900 | 1400 | 900 | 1400 | 1900 | 2900 | 950 | 1450 | 1950 | 2950 |
| X/Z axis Rapid traverse | 24/24 | 24 | 24 | 16/16 | 16/16 |
| Positioning accuracy(mm) | 0.008 |
Repeatability accuracy(mm) | 0.004 |

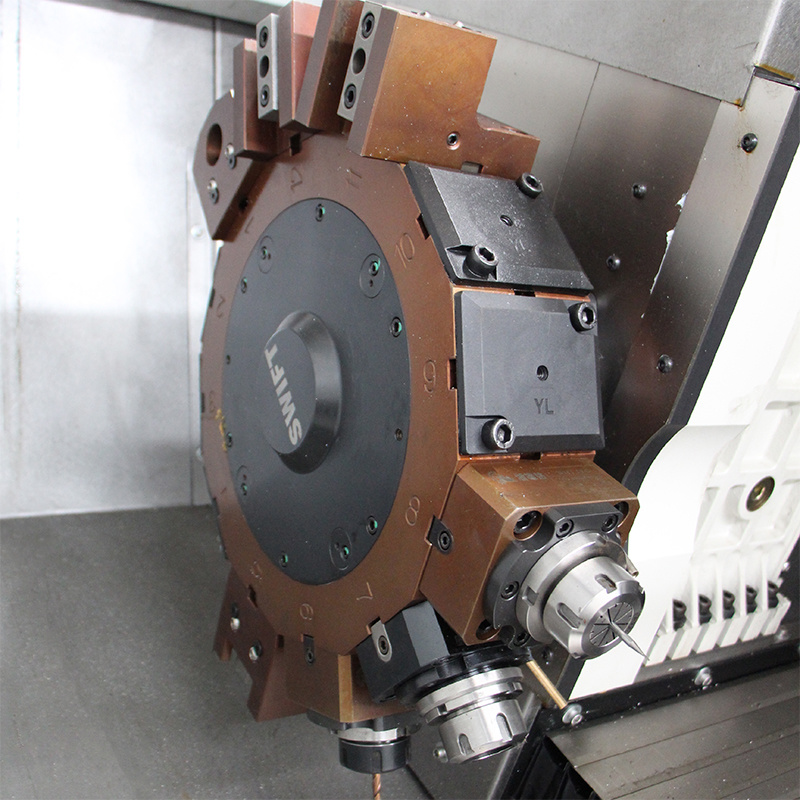

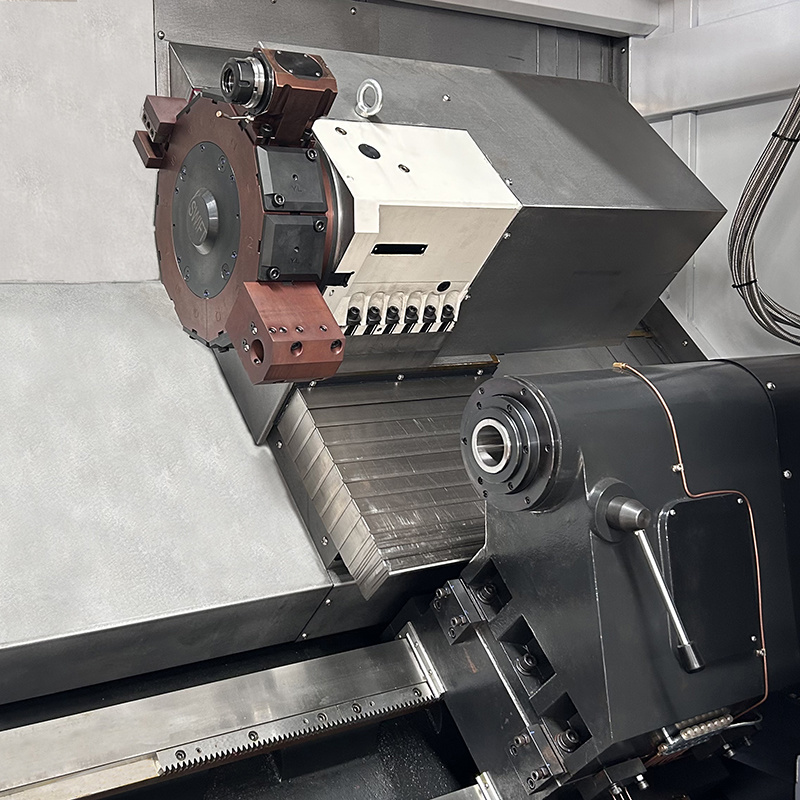

| Turret Type | BMT40 | servo | BMT45 | BMT55 | BMT65 | BMT65 |
| Tool station number | 12 | 8 | 12 | 12 | 12 | 12 |
Driven Tool station number | 12 | 4+4 | 12 | 12 | 12 | 12 |
| Tool holder size | 20X20 | 20X20 | 20X20 | 25X25 | 32X32 | 32*32 |
| Power tool speed | 5000 | 5000 | 5000 | 4000 | 4000 | 5000 |
| Power motor power |
|
|
| 15Nm 3.1KW | 15Nm 3.1KW | 15Nm 3.1KW | 36Nm/5.5-7.5KW | / |
Power tool chuck dimensions | ER25 | ER25 | ER25 | ER32 | ER40 | ER40 |
| Tail frame moving form | 1 | 1 | 1 | φ80 | 1 | 1 | Hydraulic automatic programmable | Hydraulic automatic programmable | 160 |
| Tailstock Travel | 1 | 1 | 400 | 490 | 740 | sub spindle 650 | 900 | 1400 | 1 | 1 | 1 | 1 | 900 | 1400 | 1900 | 2900 |
| Tailstock taper | 1 | 1 | MT5 | 1 | / |
| MT5 | MT6 | MT6 |
| Main motor power/kw | 7.5 | 11 | 22 | 12.5 | 20 | 30 | 30 |
| XZ axis motor power | / | / | / | 15Nm /3.1KW | 15Nm /3.1KW | 18Nm/3.9KW | / | / |
| Yaxis motor power | / | / | / | 11Nm/2.3Kw | 15Nm/3.1KW | 15Nm/3.1KW | / | / |
| Coolant pump power | 450 | 450 | 750 | 750 |
| Coolant pump Vmin | 2m²/H | 4m²/H | 4m³/H |
| Packing dimension L/m | 4 | 4 | 4.3 | 4.6 | 4.2 | 5.1 | 5.6 | 5.4 | 6.1 | 6.4 | 7.8 | 5.3 | 5.8 | 6.3 | 7.3 |
| Packing dimension W/m | 2 | 1.9 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 | 2.25 |
