TCK700DY
10001
With digital control at its core, it breaks through the operational limitations of traditional lathes, transforming complex processes into precise instructions and providing efficient, stable, and consistent machining solutions. The spindle utilizes high-precision bearings for strong vibration resistance, maintaining stable accuracy even during long-term high-speed operation. The bed is constructed from a single piece of cast iron, treated with aging to eliminate internal stress, resulting in minimal deformation and ensuring long-term machining stability.

- PRODUCT PARAMETERS -

With digital control at its core, it breaks through the operational limitations of traditional lathes, transforming complex processes into precise instructions and providing efficient, stable, and consistent machining solutions. The spindle utilizes high-precision bearings for strong vibration resistance, maintaining stable accuracy even during long-term high-speed operation. The bed is constructed from a single piece of cast iron, treated with aging to eliminate internal stress, resulting in minimal deformation and ensuring long-term machining stability.


Processing range
Max. swing over bedmmΦ780
Max.swing over slidemmΦ500
Max.turning diametermmΦ650
Center distancemm1100/1600/2100/3100
Spindle
Spindle head type/A2-8/A2-11
Spindle through-hole diametermmΦ88/Φ105/Φ132
Bar capacitymmΦ74/Φ91/Φ115
Max.spindle speedrpm/min3000/2500/1800
Rated output of the main motorkw22
Max.spindle output torqueNM573
Spindle transmission form/Timing belt

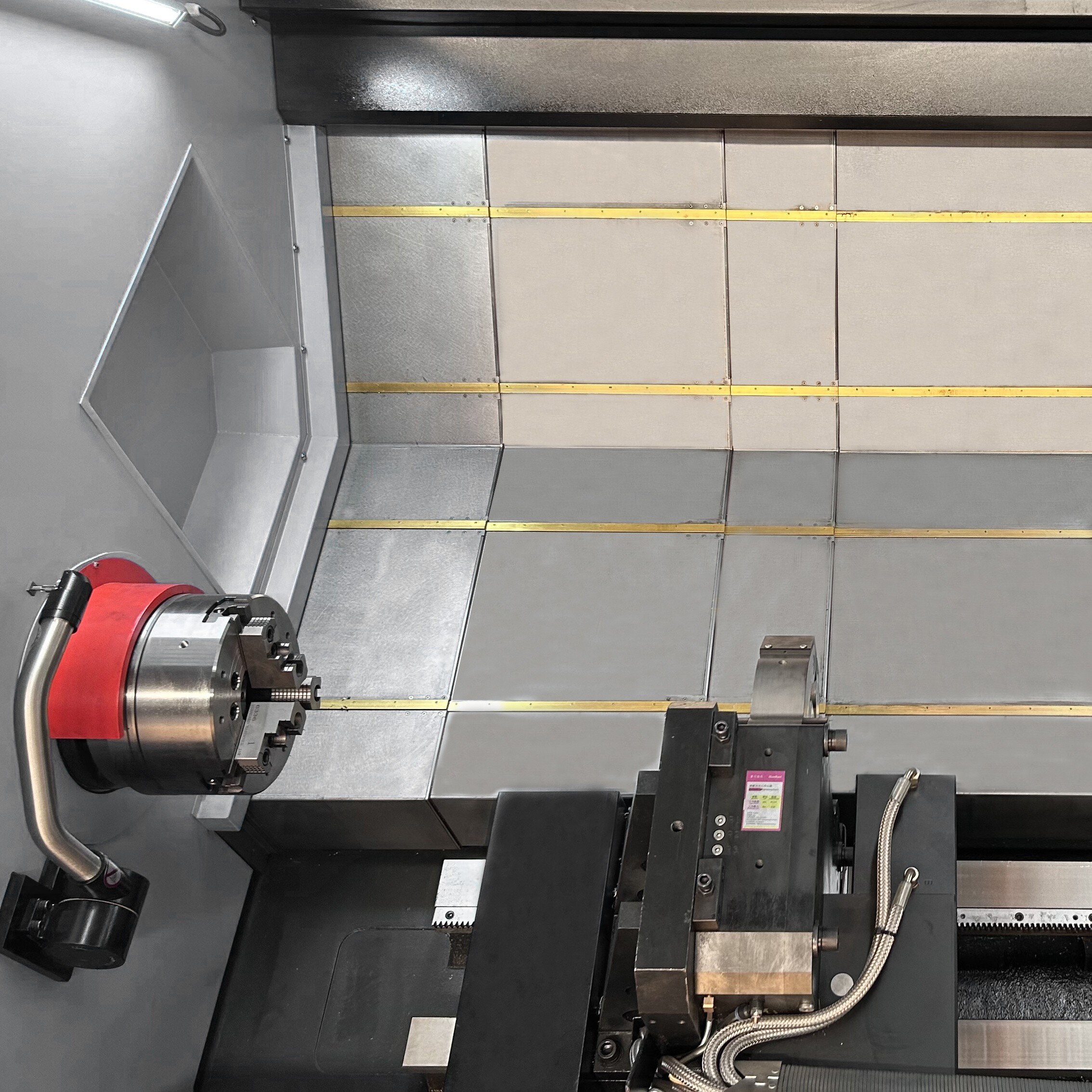

Chuck
Hydraulic chuckinch12/15/18/21

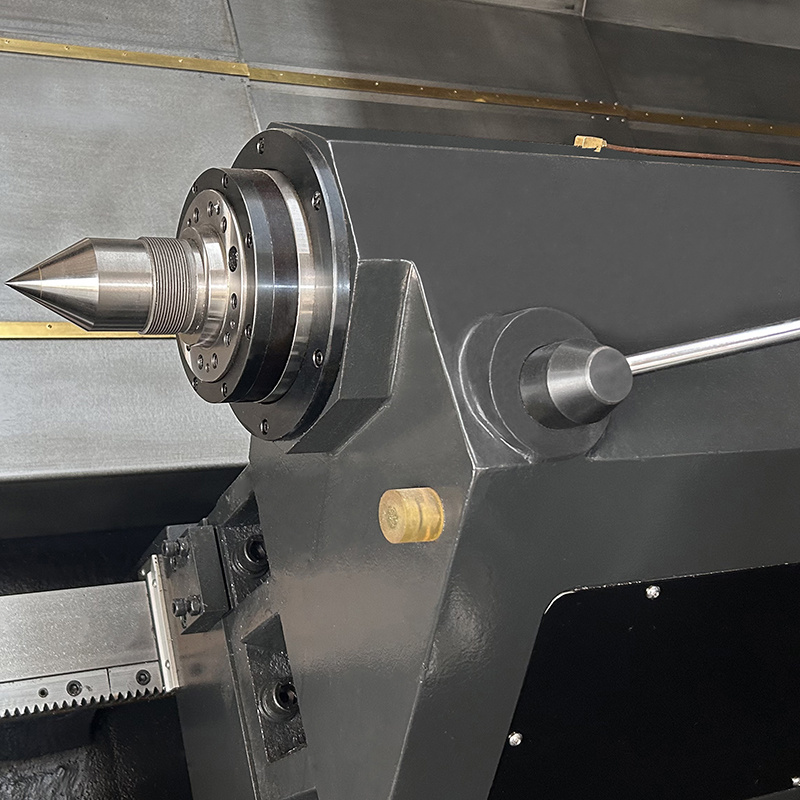

Tailstock
Tailstock sleeve/MT6 internal rotation
Tailstock movement form/Hydraulically programmable tailstock
Lathe bed
Tilt angleDEG45°
X-axis travelmm350+20
Z-axis travelmm1100/1600/2100/3100
X/Z fast moving speedm/min16/24

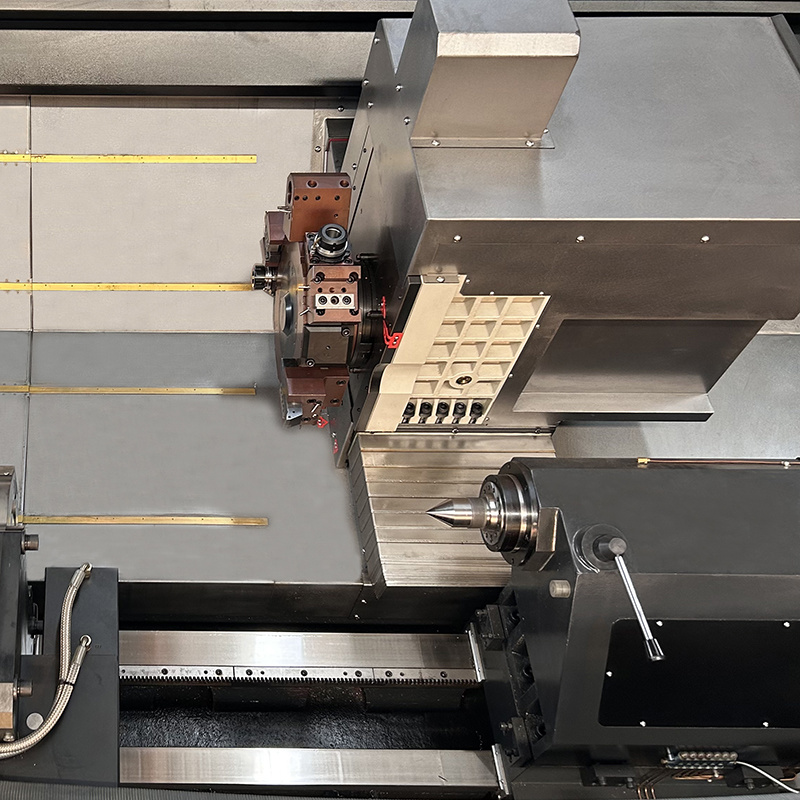

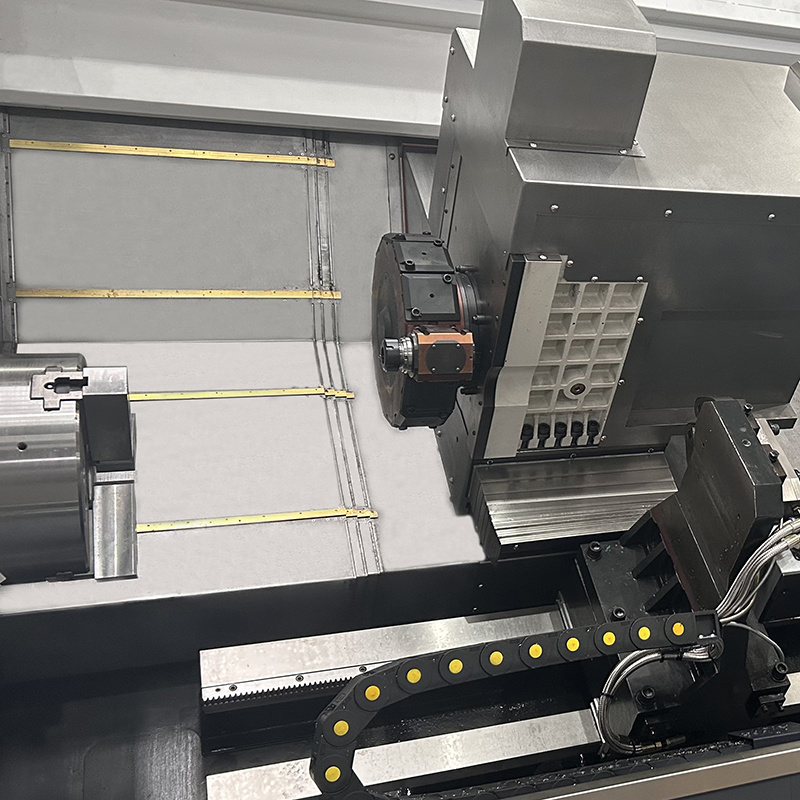

Turret
Servo hydraulic/BMT65
Adjacent tool change timess0.5
Number of station/12


Turret
Servo hydraulic/BMT65
Adjacent tool change timess0.5
Number of station/12
Tool size.turning/boring)mm32x32/Φ40(50)
Spring chuck/ER40
Driven powerkw5.5-7.5
Y-axis travelmm±75
Out size
1.0m7500kg4500*2300*2550mm
1.5m9500kg6000*2300*2550mm
2.0m10500kg6500*2300*2550mm
3.0m13300kg7500*2300*2550mm
